All-round professional 3D interpolation dispensing system: the professional special control system can be applied to any non-plane 3D dispensing path, which can realize a variety of complex dispensing patterns and dispensing paths, and is a truly professional automatic dispensing manipulator control equipment that can realize three-axis, four-axis and five-axis interpolation.
It can be operated by teaching on a stand-alone machine and is easy to install

Send Inquiry

Product Description

Applications

The three-axis automatic dispensing machine can be taught to operate without an external computer, which is convenient to install and easy to operate and set.
Streamlining the program setting of the humanized teaching box, it can quickly and accurately complete various spatial complex dispensing paths such as flat fixture and inclined fixture array dispensing, offset correction, correction path setting, arc, point, etc., and realize convenient setting of data transmission between machines and computers, with simple operation and complete functions.
Commonly Used Dispensing Materials:
  • UV glue, A B glue, COB glue, EPOXY, red glue, silver glue
  • Instant glue, conductive glue, heat dissipation aluminum glue, and other common fluids

Product Parameters

Model S-221, S-331, S-441, S-551
Scope of work (mm) X-axis, Y-axis, Z-axis 200×200×100, 300×300×100, 400×400×100, 500×500×100
Maximum load Y-axis / Z-axis 6Kg / 4Kg
Maximum movement speed XY-axis, Z-axis 600mm/s, 400mm/s
Control scheme Automatic dispensing control system
Display method / Position input method / Display language Teaching box / Teach box operation / Chinese
Motion interpolation function 3D Any route in the three-dimensional space is available
Drive mode Servo drive
Transmission method Screw
Number of programs stored 1000 groups
Maximum recording point of a single set of programs 4000
Decomposition ability / Repeatability 0.0035mm / 0.01mm
External interface RS-232 (For teaching box)
Input power Full voltage AC220V 50/60HZ
Operating ambient temperature / Relative humidity 0-50℃ / 20-90%
Weight 60KG, 65KG, 70KG, 75KG
Dimensions (W*D*H) mm 468*532*622, 568*632*622, 668*732*622, 768*832*622

Product Details

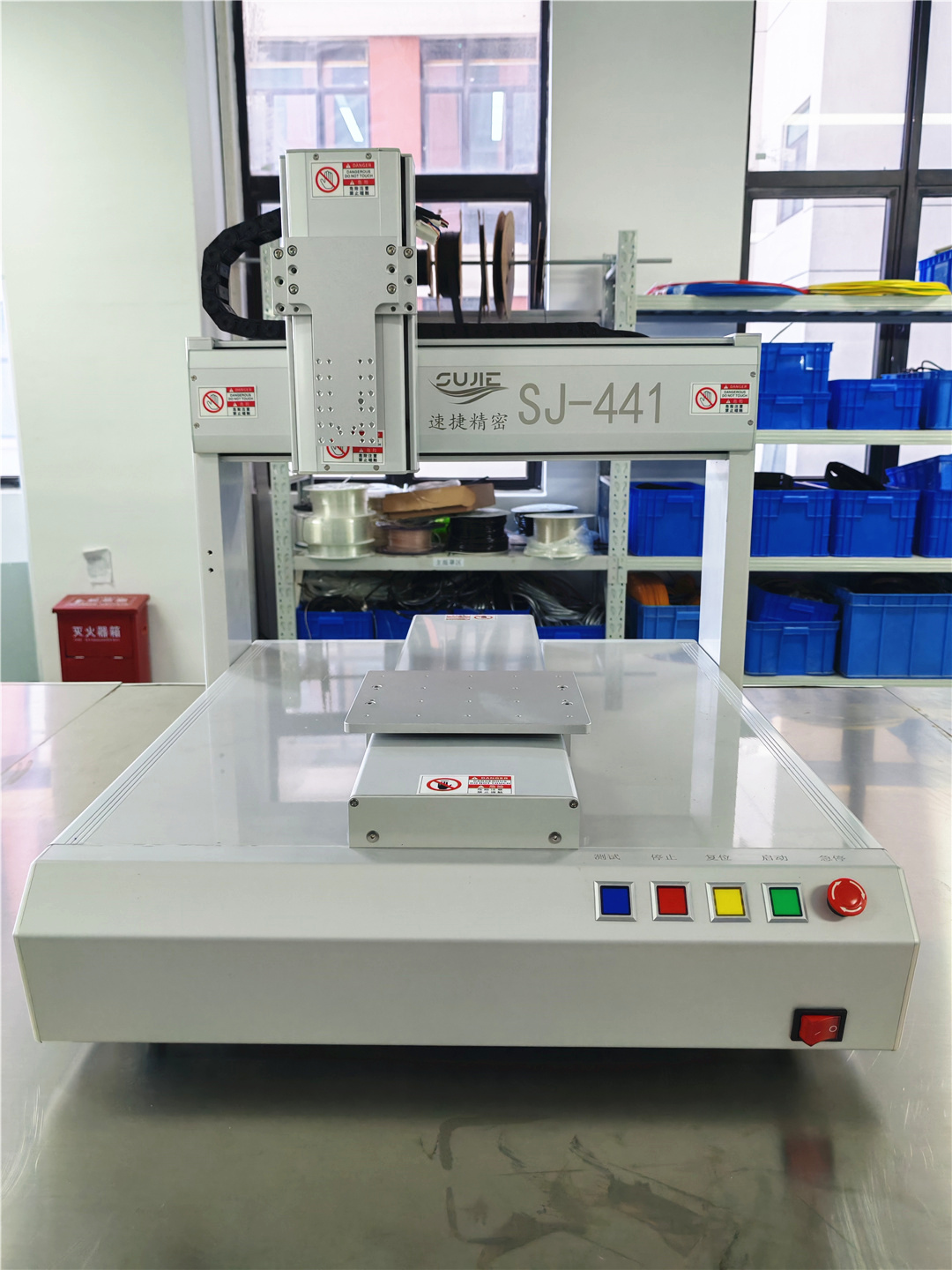

Product details image 1

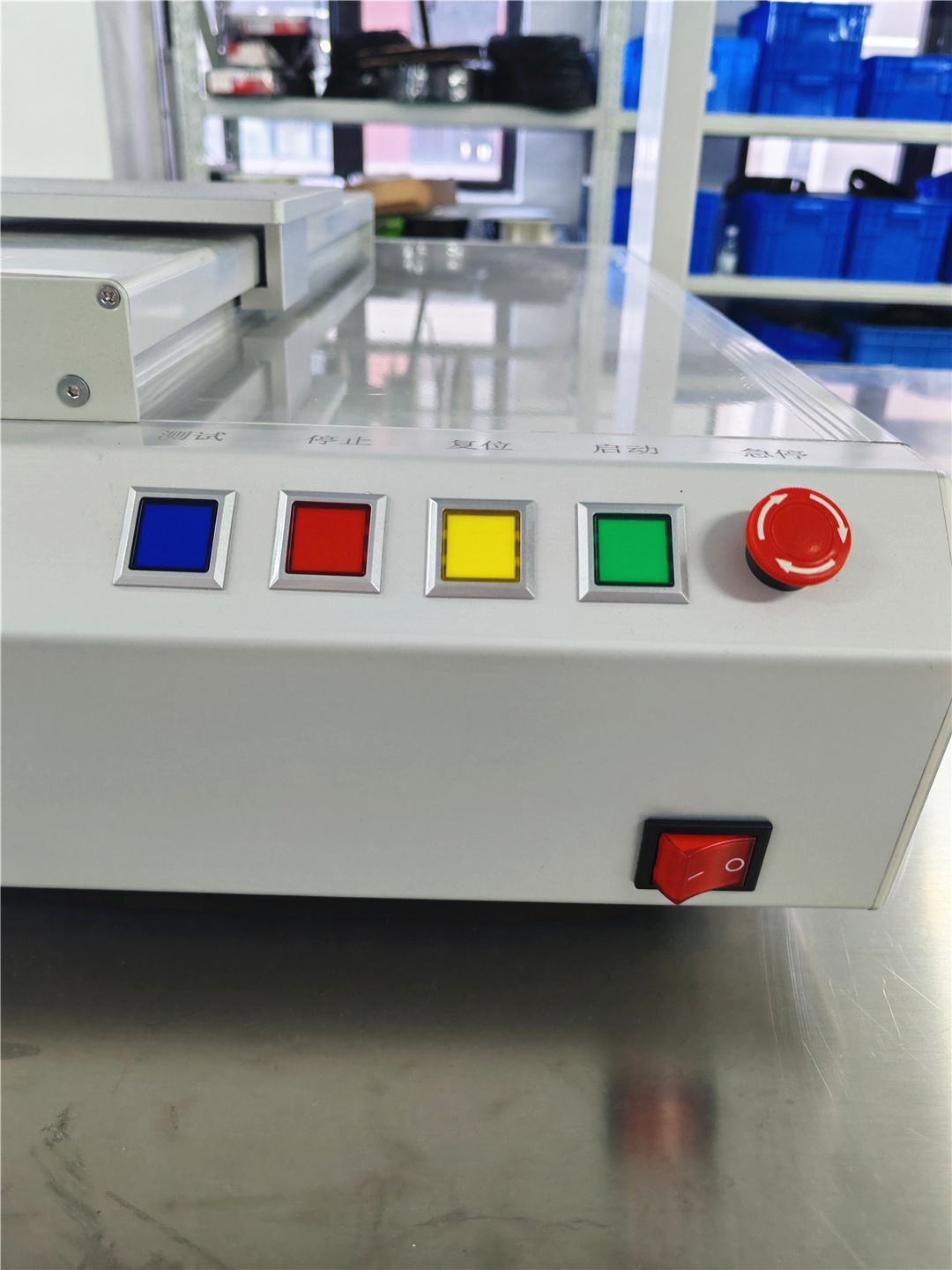

Product details image 2

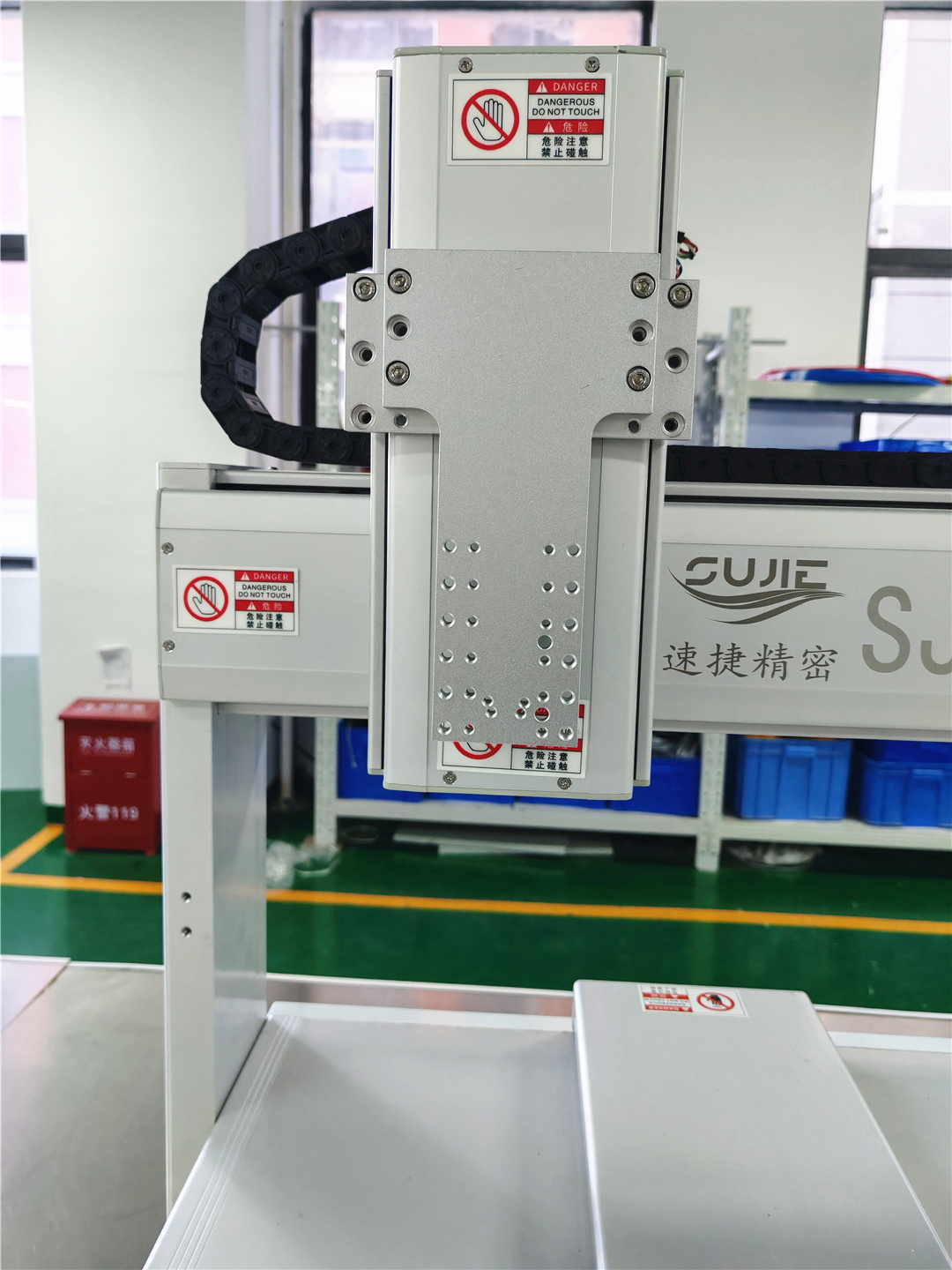

Product details image 3

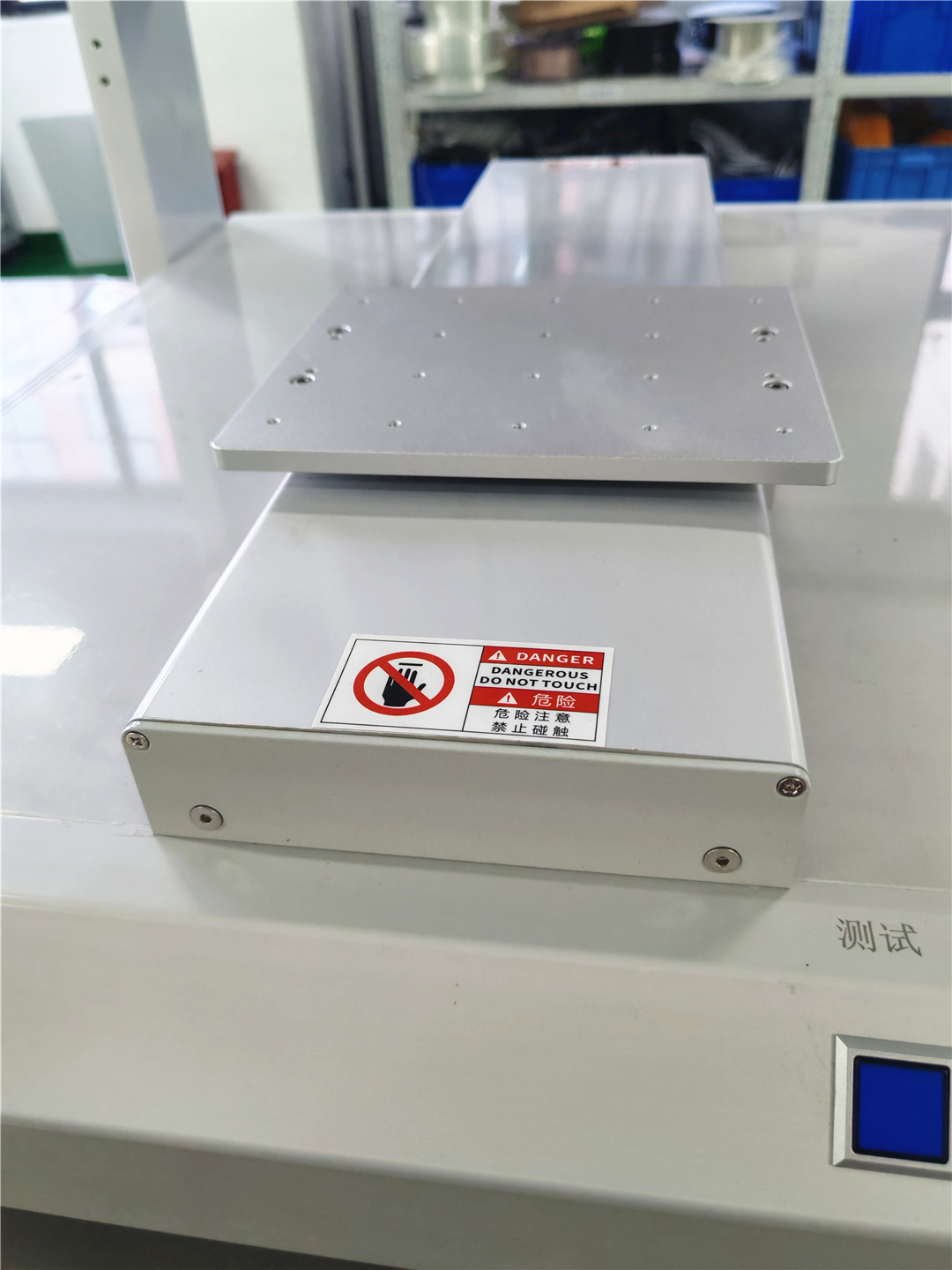

Product details image 4

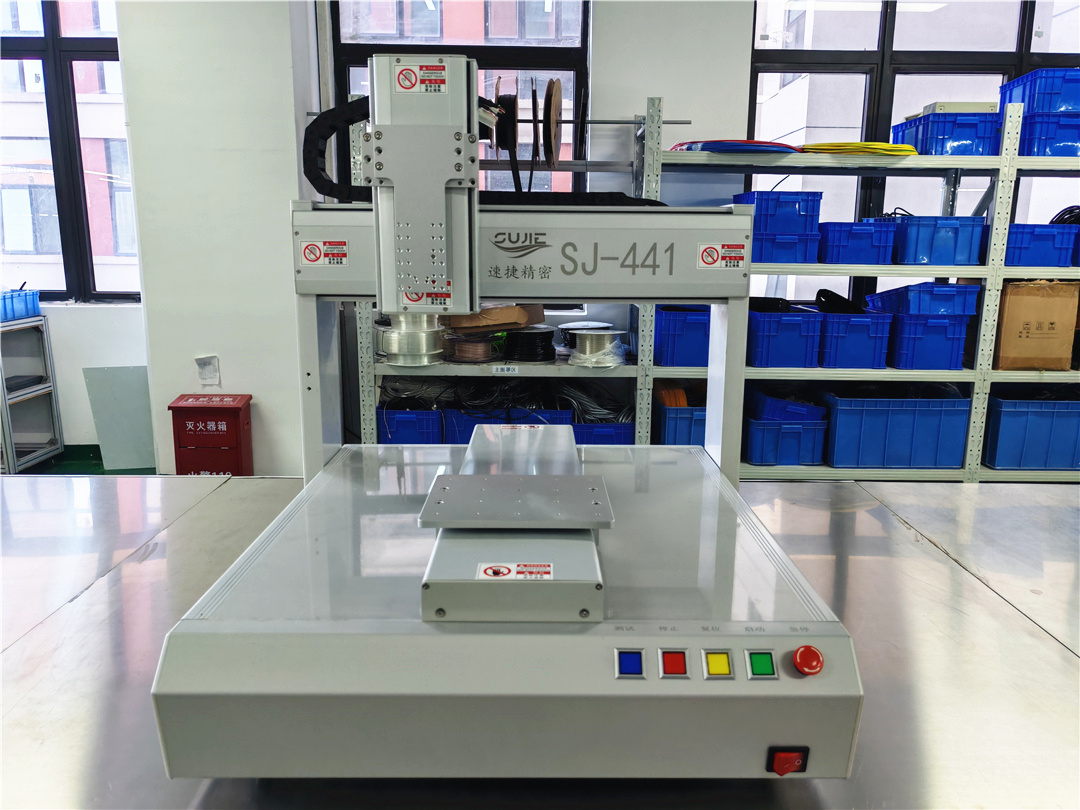

Product details image 5

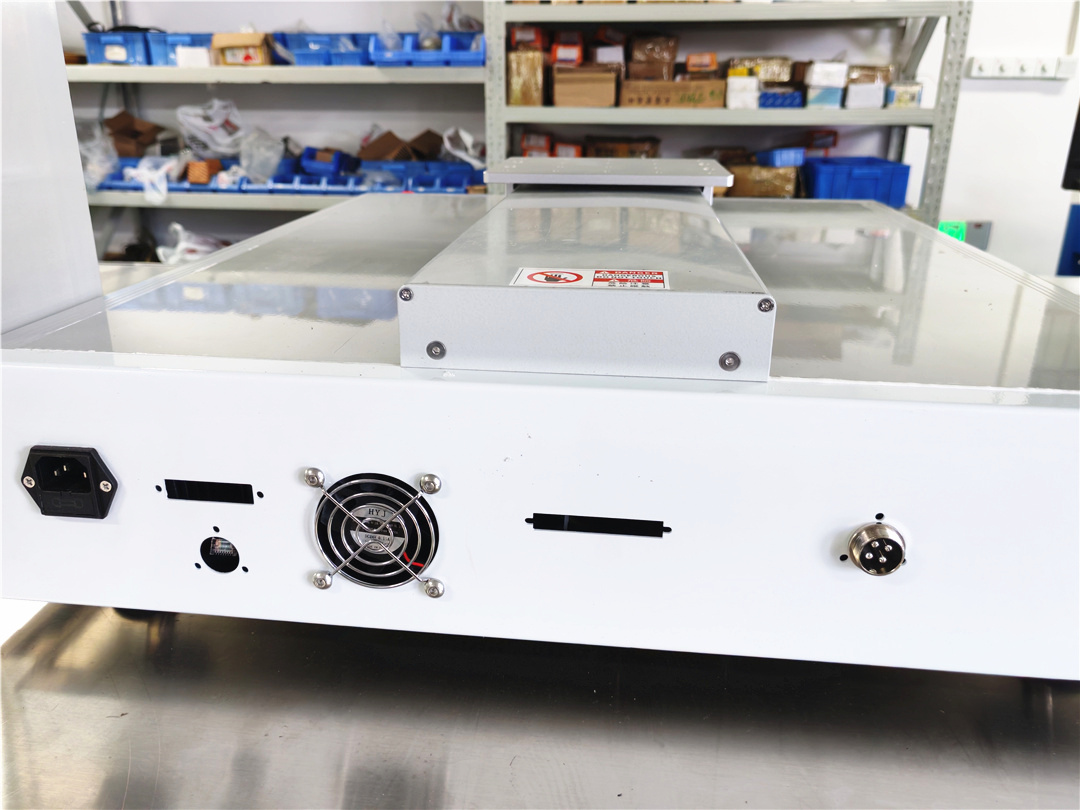

Product details image 6

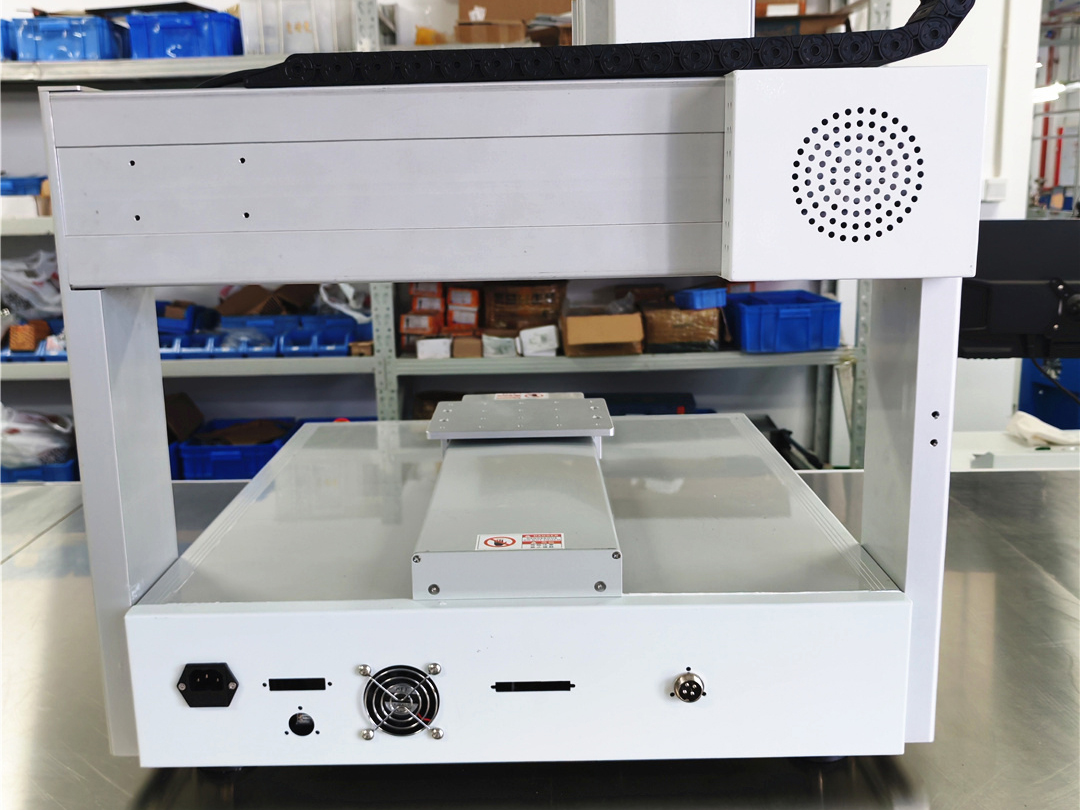

Product details image 7

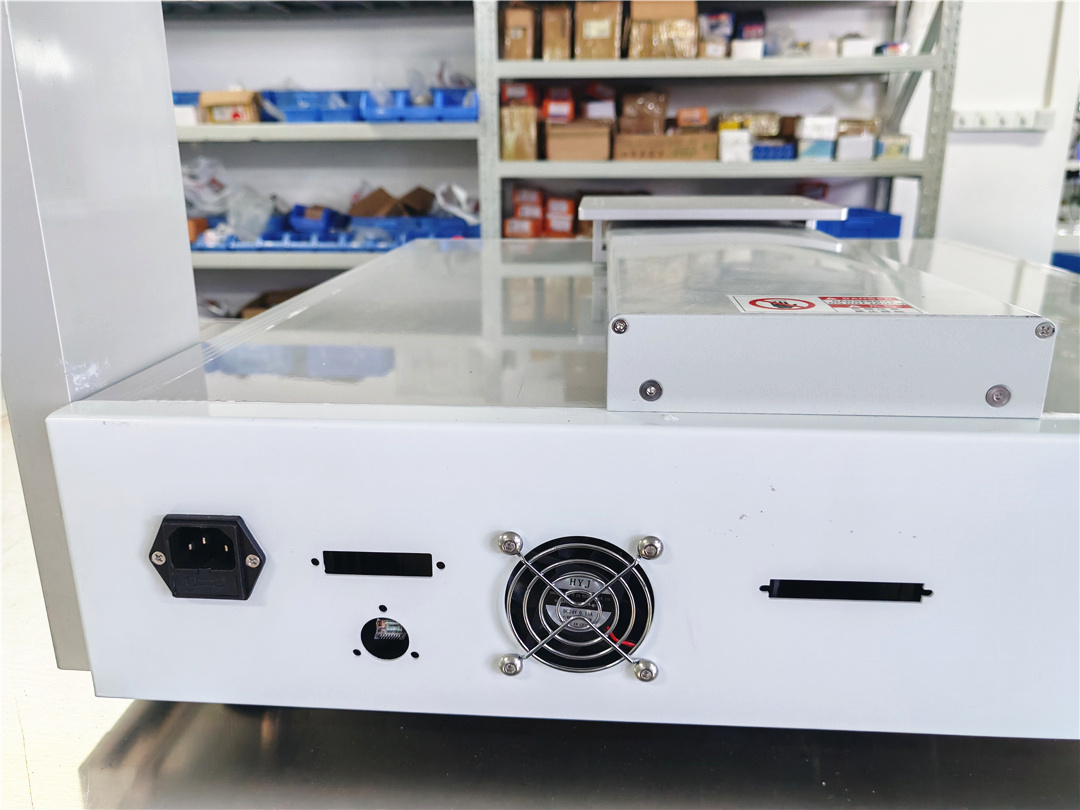

Product details image 8

Frequently Asked Questions

Does this three-axis dispensing machine require an external computer?
No, the machine can be programmed and operated without an external computer. It uses a user-friendly teaching box that makes installation, setup, and operation quick and simple.
What types of dispensing paths can the machine execute?
The system can quickly and accurately complete complex spatial dispensing paths, including points, lines, arcs, flat fixtures, inclined fixture arrays, offset corrections, and correction path settings.
Which types of glues are compatible with this dispensing machine?
It is compatible with a wide range of industrial fluids such as UV glue, A B glue, COB glue, EPOXY (epoxy resin), red glue, silver glue, instant glue, conductive glue, and heat-dissipating aluminum glue.
What is the working speed and motion performance of the machine?
The machine features high-precision servo drive and screw transmission. The maximum movement speed reaches up to 600mm/s for the XY axis and 400mm/s for the Z axis.
How many dispensing programs can the control system store?
The system can store up to 1000 groups of programs, with a maximum capacity of 4000 recording points per individual program set, allowing for massive production task storage.
What is the repeatability accuracy of the dispensing path?
The machine offers excellent precision with a decomposition ability of 0.0035mm and a repeatability accuracy of up to 0.01mm, ensuring consistent quality in high-precision manufacturing.
