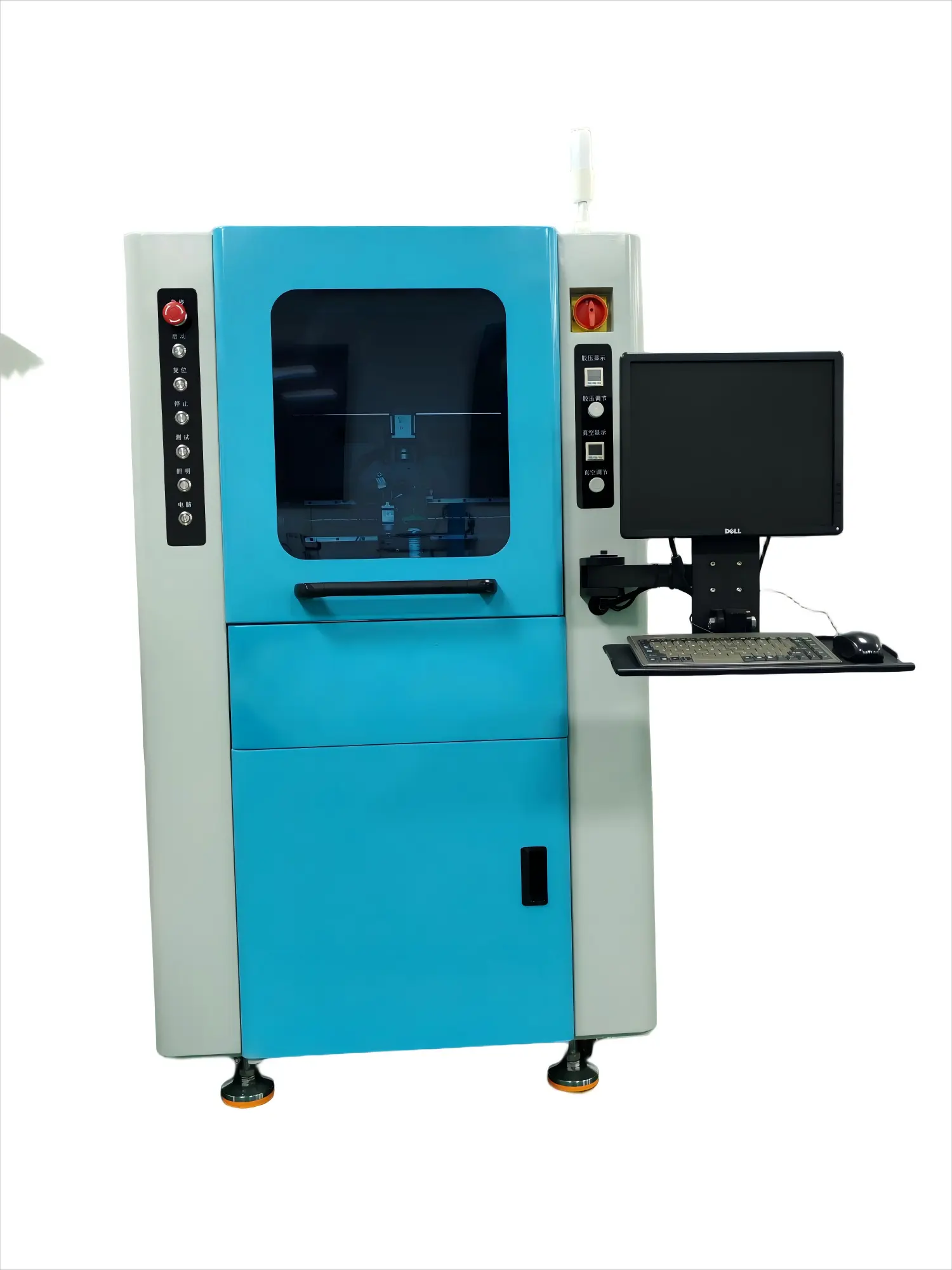

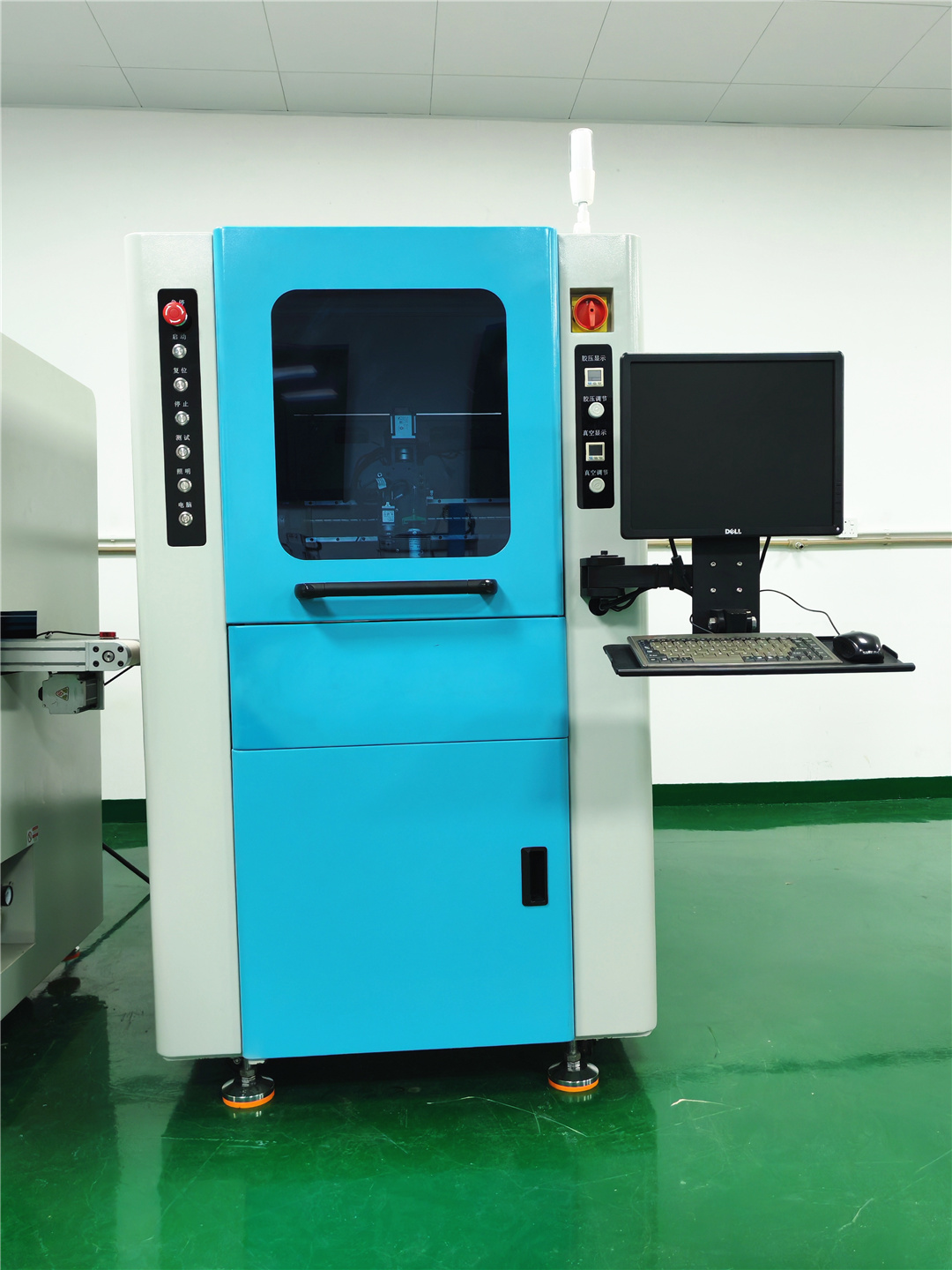

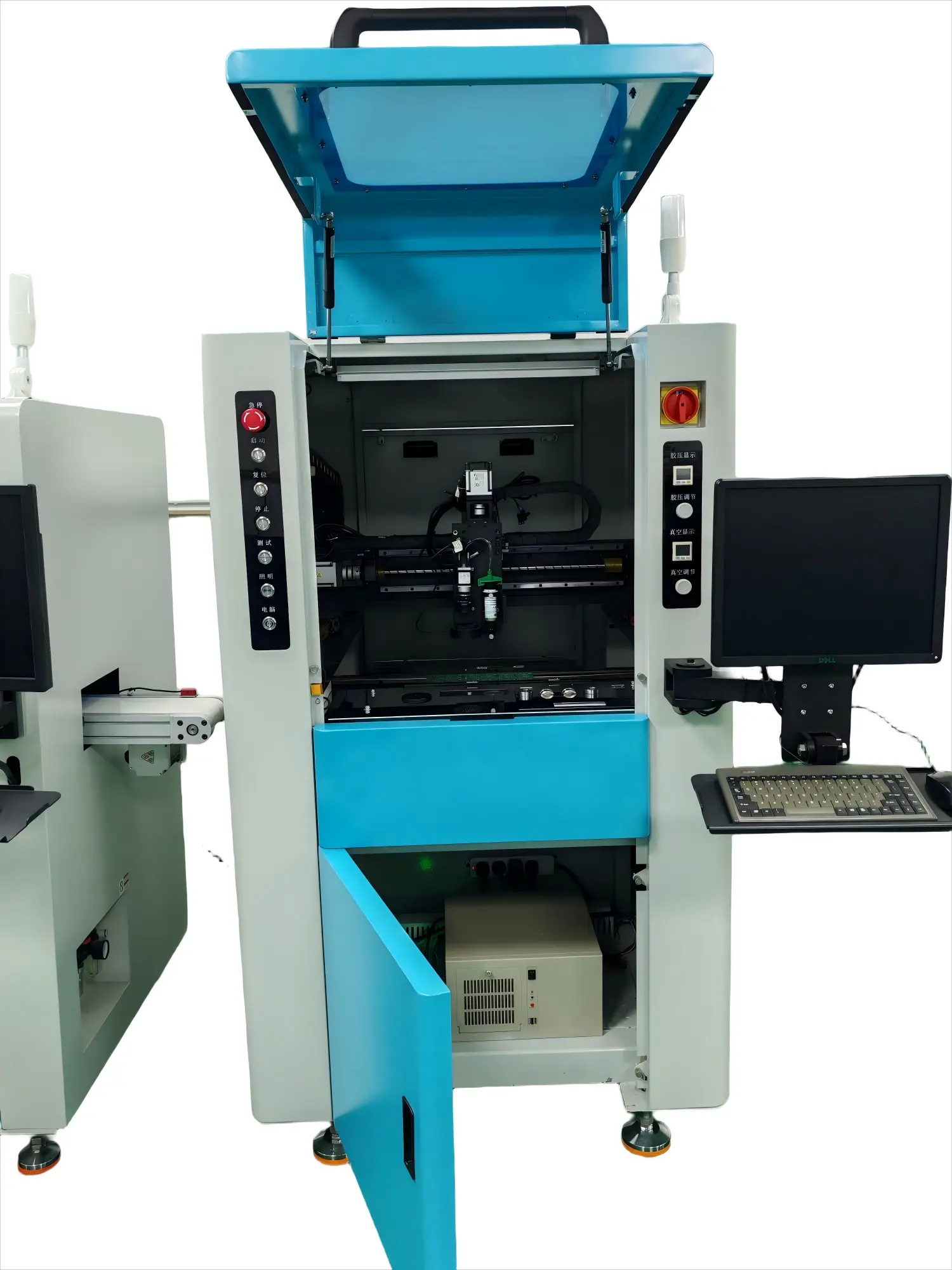

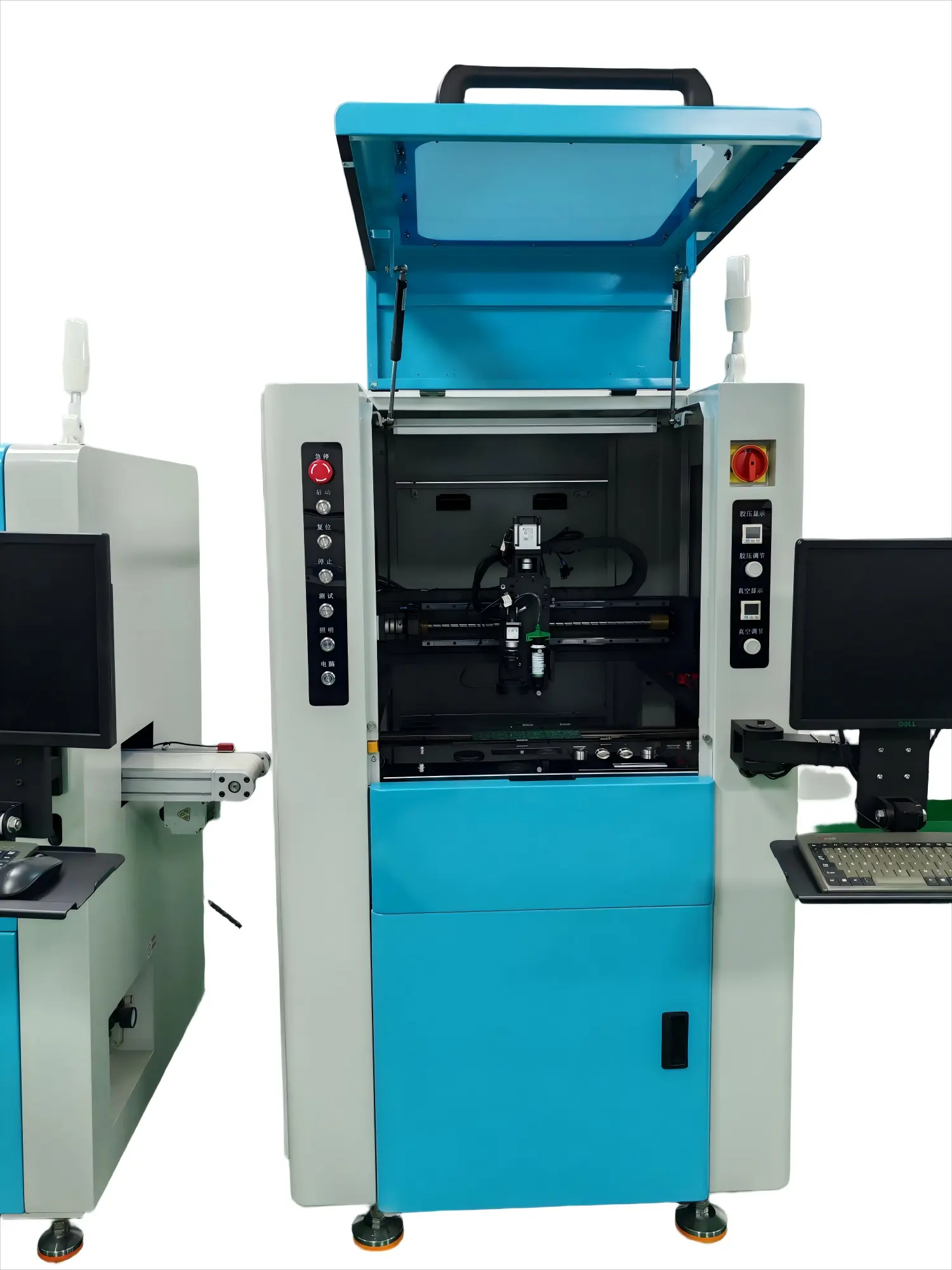

ODM Online high-precision visual automatic dispensing machine Company, Service

It is equipped with automatic width adjustment and automatic conveying line, which can connect the front and rear workstation assembly line automation equipment and automatic assembly line device.

Truly realize fully automatic standardized production and integrated management, improve production efficiency and ensure product quality.

Send Inquiry

Product Description

Applications

It is equipped with laser height measurement, glue weight electronic scale stability and calibration, yin and yang board program automatic mirroring, flight jet, glue level alarm, tape and reel automatic cleaning, glue wiping, automatic correction, real-time detection and other functions.
It can be equipped with precision glue control devices such as screw valves, injection valves, needle valves, and air pressure valves.
Realize mechanical automatic production, high-speed, high-precision dispensing operations, convenient management, improve efficiency and save costs.

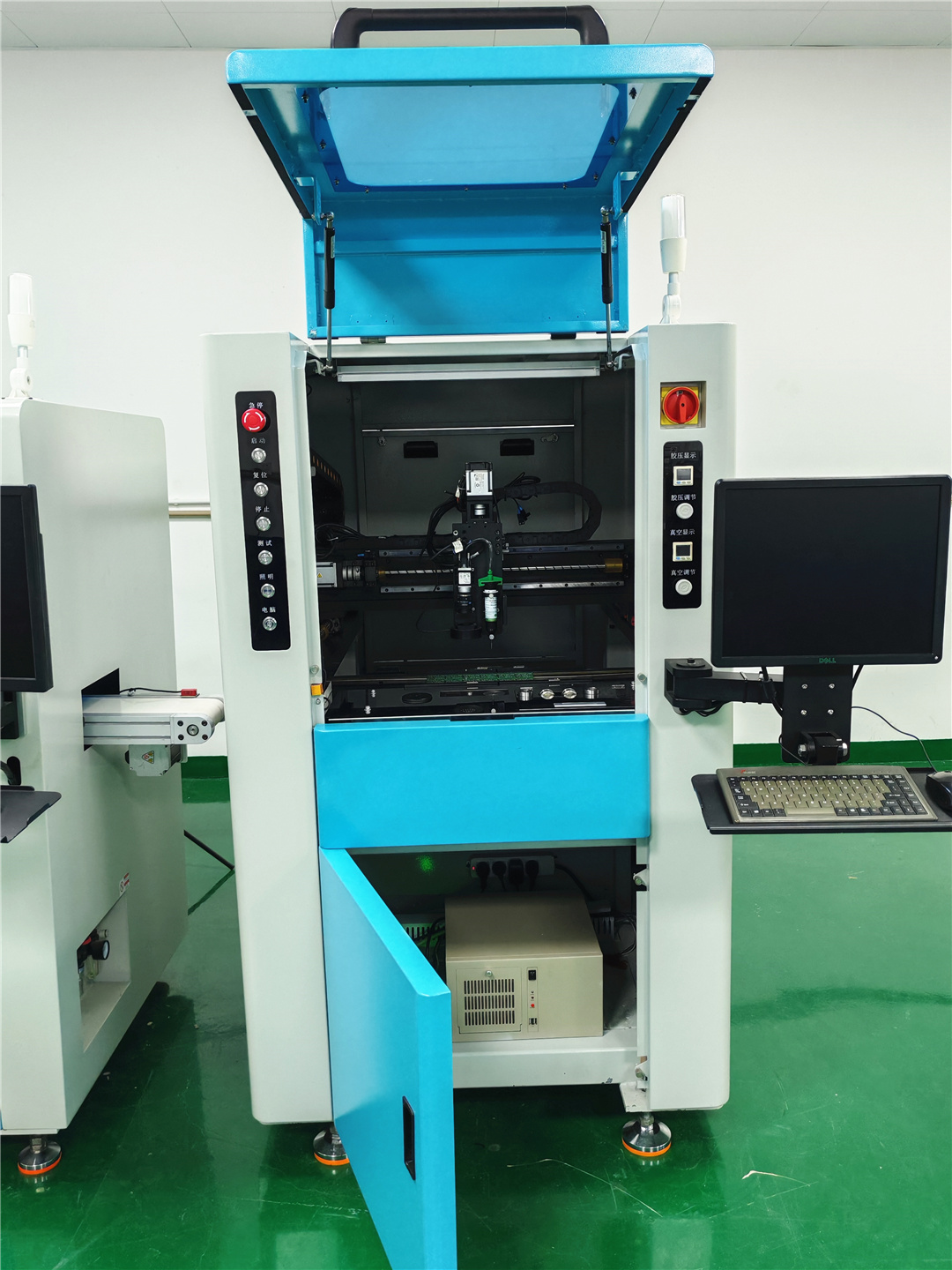

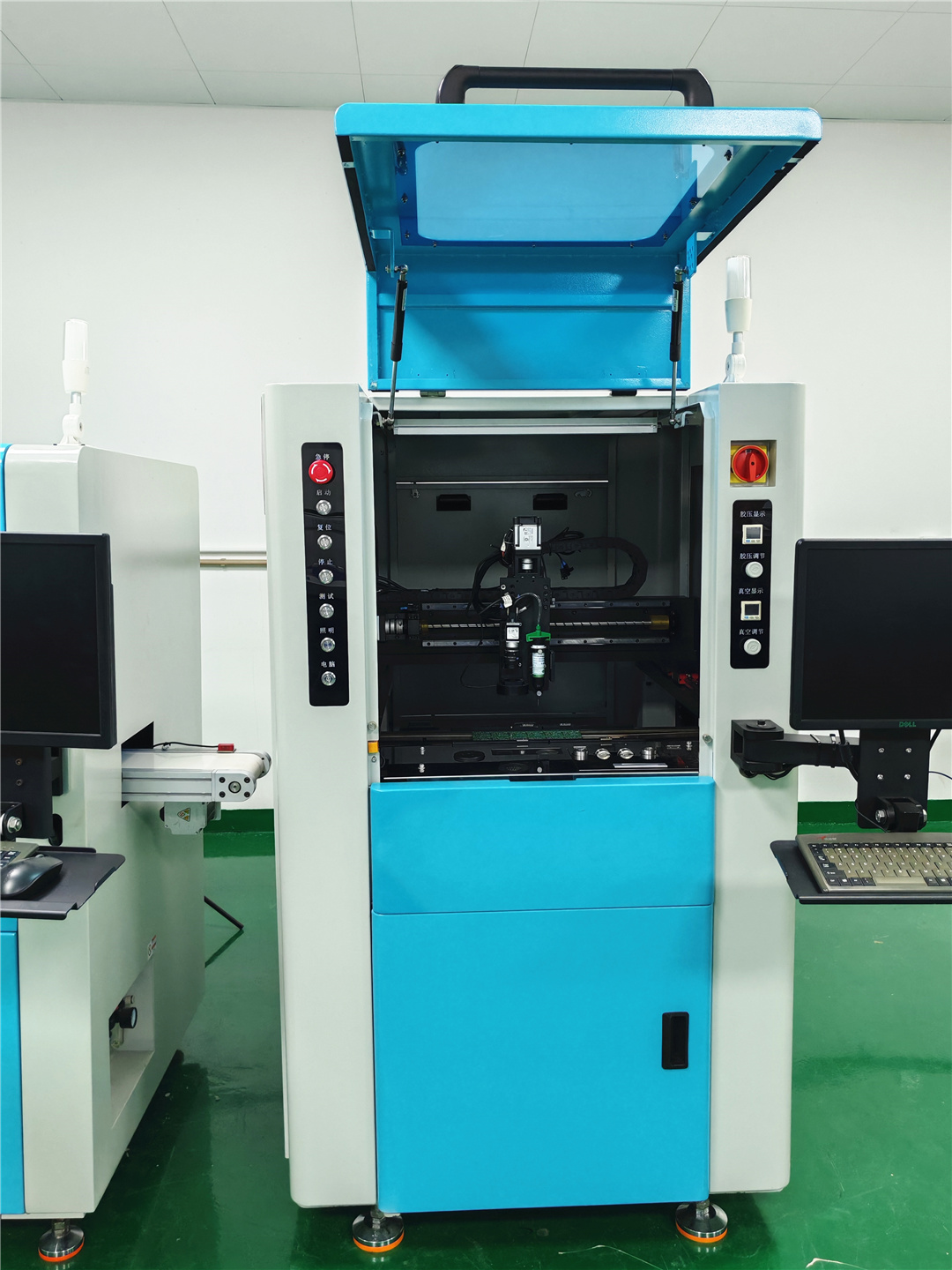

Floor-mounted high-strength aluminum alloy frame, good stability, easy movement of equipment, good safety protection.

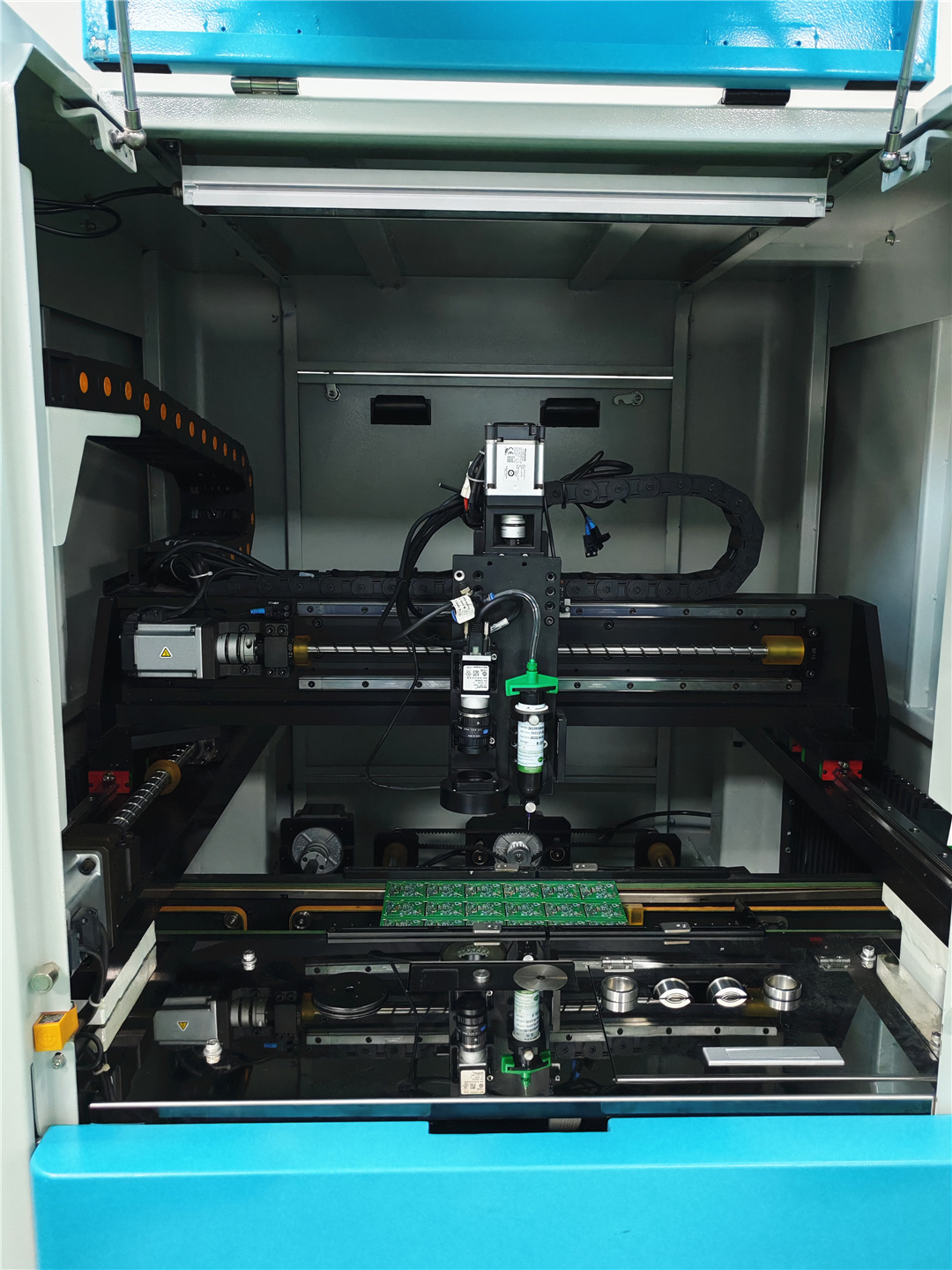

Professional servo control system, high-performance servo motor + precision screw + linear guide.

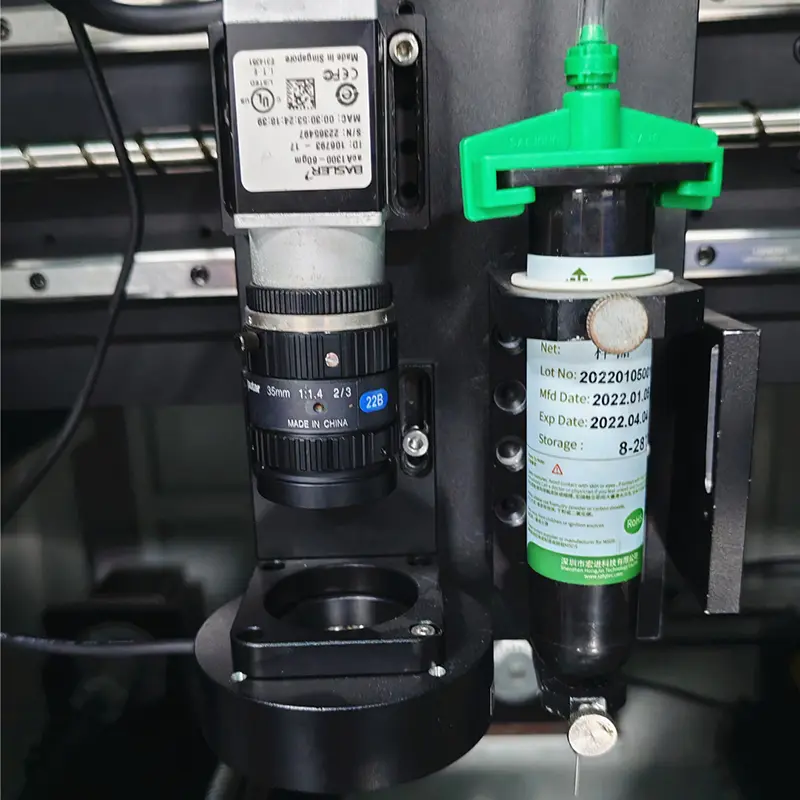

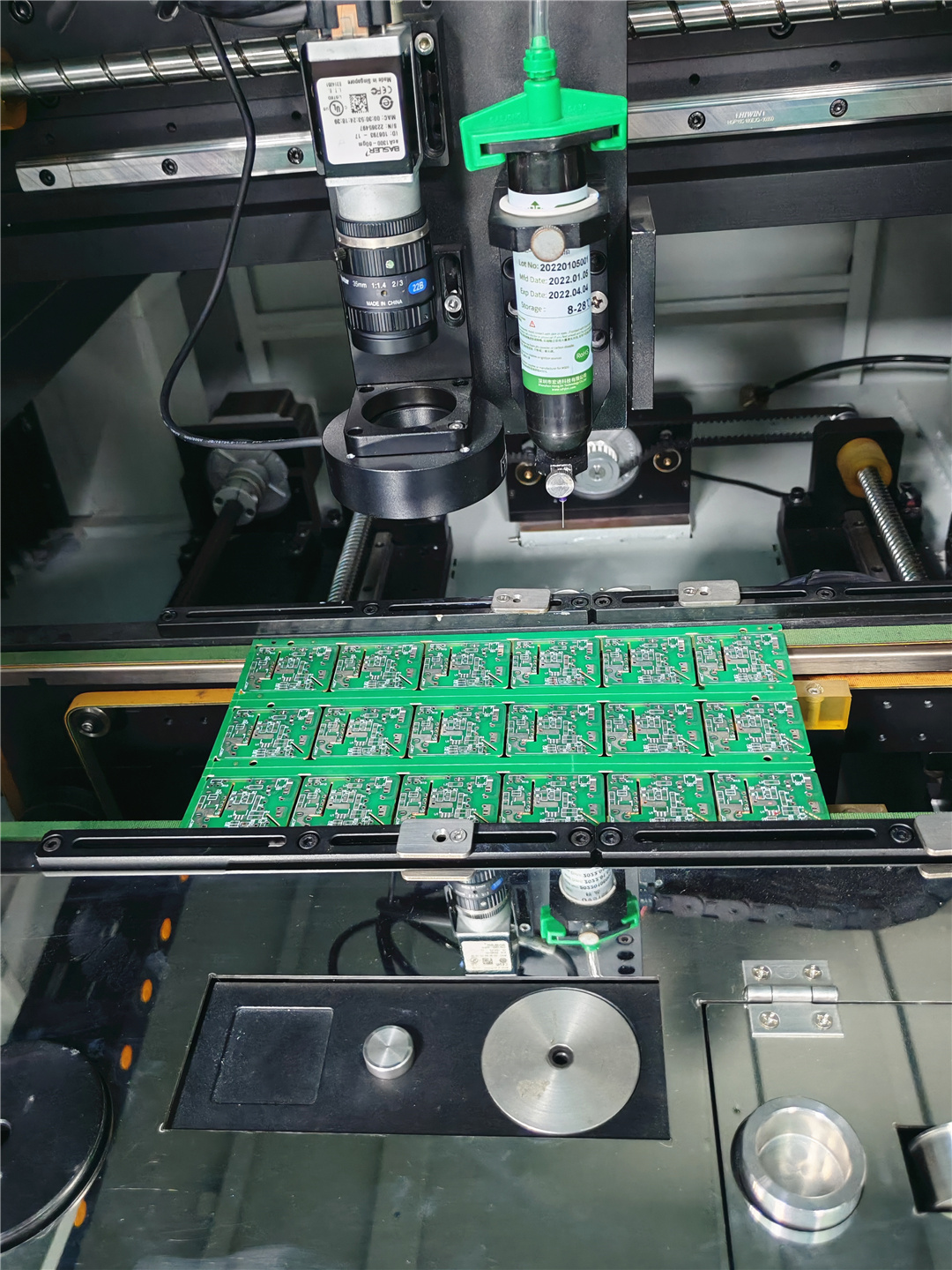

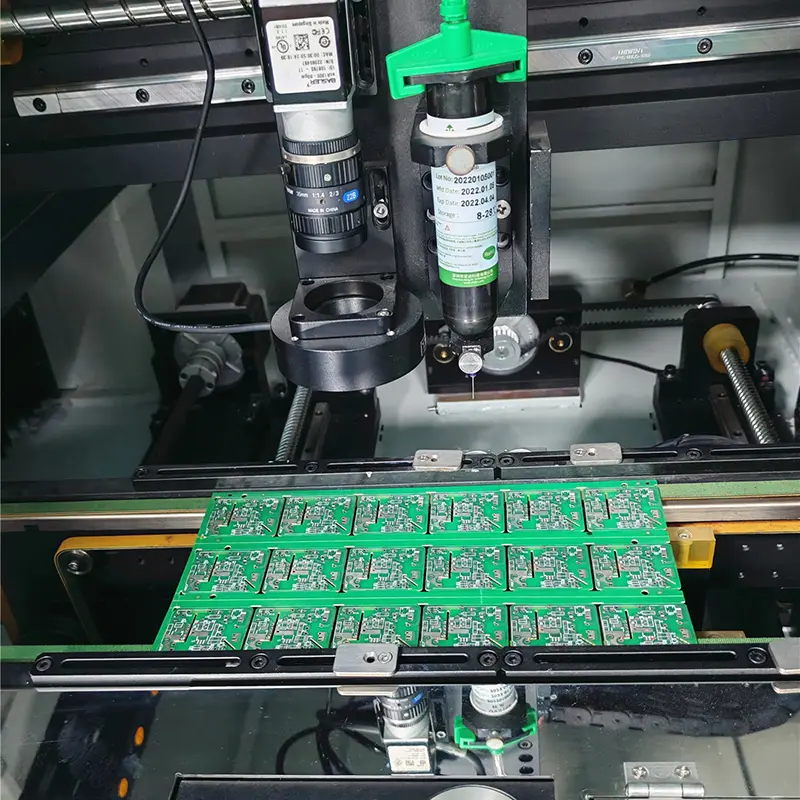

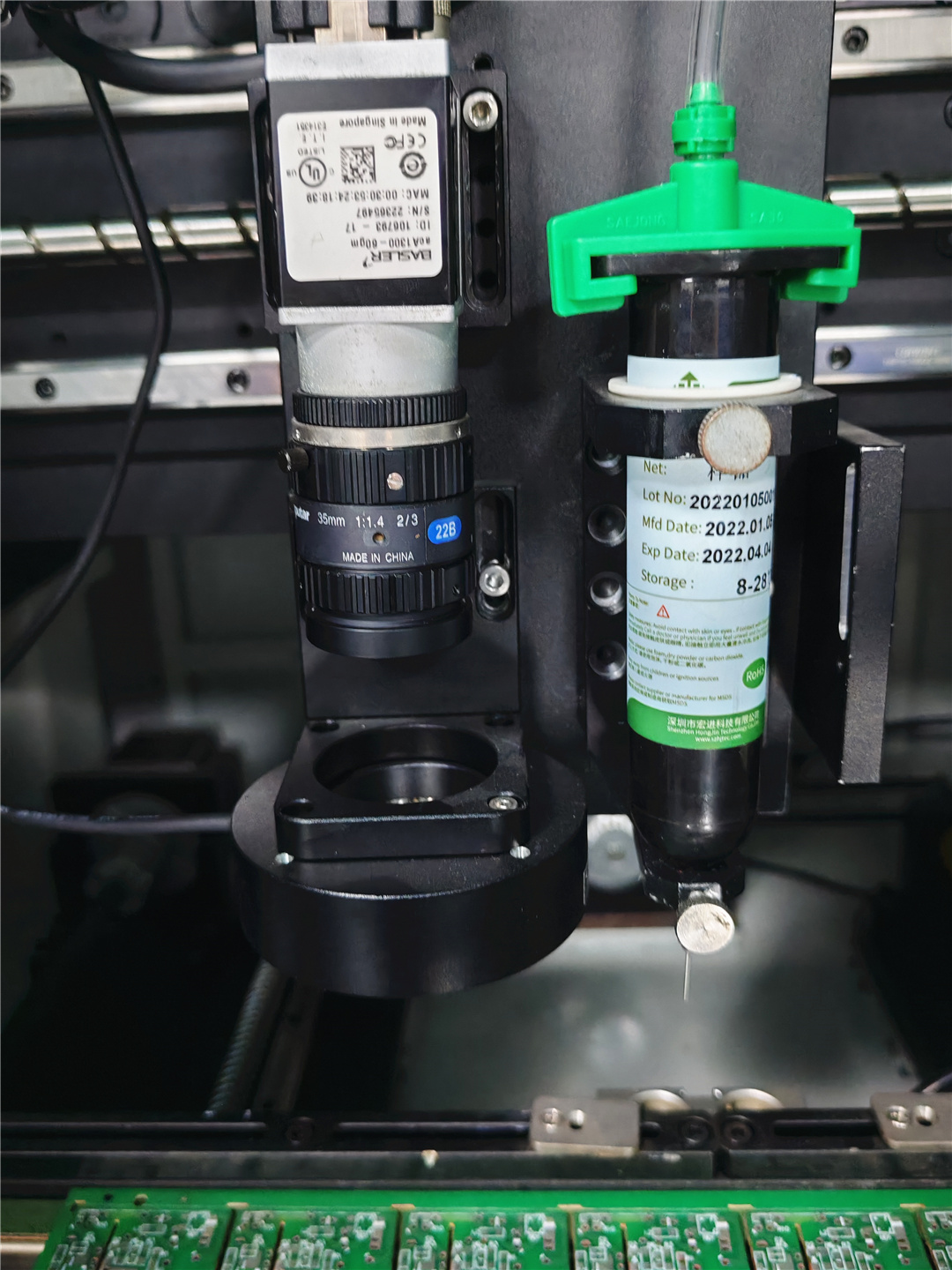

The CCD visual image system automatically calibrates and compensates the movement trajectory of the manipulator to achieve high-precision dispensing.
The program can quickly and accurately complete a variety of complex dispensing paths such as array dispensing, offset correction, and correction paths of flat fixtures and tilting fixtures.
For any 3D dispensing path, a variety of complex dispensing patterns and paths can be realized.

Product Parameters

Working range X-axis, Y-axis, Z-axis	400×600×100 mm
Maximum load Y axis/Z axis	6Kg/4Kg
Maximum movement speed XY axis, Z axis	600mm/s 、400mm/s
Dimensions (W×D×H)	100110162(CM)
Control scheme	Vision Automatic Dispensing control system + CCD vision system
Display method/display language	Computer display/Chinese
Programming method	Online visual programming, mouse and keyboard operation
CCD camera visual positioning	Automatically calibrate the trajectory
Laser altimeter (optional)	The laser automatically detects the height and automatically calibrates the dispensing height.
Repeatability	±0.02 mm
Motion interpolation function	Any route in 3D stereo space is available
Drive mode/transmission mode	Servo system / Precision screw
Number of programs stored	More than 1000 groups
Input power	Full voltage AC220V 50/60HZ

Product Details

Frequently Asked Questions

What types of dispensing valves can be configured with this equipment?

This system is highly compatible and can be equipped with various precision glue control devices, including screw valves, injection valves, needle valves, and air pressure valves to meet different application requirements.

How does the CCD visual positioning system work?

The CCD visual image system automatically captures the workpiece position, then calibrates and compensates the movement trajectory of the manipulator in real-time, ensuring high-precision dispensing performance.

Does this machine support complex 3D dispensing paths?

Yes, it features a motion interpolation function that allows it to execute a variety of complex dispensing patterns and paths along any route in 3D stereo space.

What is the positioning repeatability of this dispensing machine?

The machine offers exceptional precision with a repeatability of ±0.02 mm, driven by a high-performance servo system and precision screw transmission.

Can the programming path handle offset corrections automatically?

Yes, the control system is designed to complete complex paths including array dispensing, offset correction, and trajectory corrections for flat or tilting fixtures quickly and accurately.

What safety and monitoring features are integrated into the system?

The equipment includes a laser altimeter for height detection, a glue level alarm, electronic scale calibration for glue weight, real-time detection functions, and a floor-mounted high-strength frame for maximum safety and stability.
