ODM Domestic Industrial Dispensing Jet Valve accessories Supplier, Exporter

Jet Valve Accessories

Orifice Size: 0.1-0.5mm (±0.01mm precision

Max Frequency: 500Hz (2ms response time)

Material: Tungsten carbide nozzles with <5μm surface finish

Function: Enables non-contact dispensing of dots/lines (50μm-3mm width) for PCB underfill and precision bonding

Send Inquiry

Product Description

Applications & Performance Features

1. Piezoelectric Jet Valve Accessories

Precision Nozzles: 50-200μm orifice (±2μm tolerance) for micro-dot dispensing
Ceramic Components: Alumina-based parts withstand 10 million+ cycles
Frequency Response: Up to 1kHz operation for high-speed applications
Key Benefit: Enables non-contact dispensing with <0.5% variation in droplet size

2. Pneumatic Valve Accessories

Voltage Range: 60-150V DC
Displacement Accuracy: ±0.1μL/drop
Temperature Range: -10°C to 80°C
Function: Provides ultra-precise (<1% CV) micro-droplet deposition for medical device assembly
Quick-Change Kits: Tool-less nozzle replacement in <15 seconds
PTFE Seals: Chemical-resistant for aggressive adhesives (epoxy, silicone)
Pressure Range: 0-100psi (0-7bar) adjustable with precision regulators
Key Benefit: 50% faster cycle times than standard pneumatic valves
Operating Pressure: 0.2-0.7MPa
Flow Rate: 0.01-10mL/s adjustable
Seal Material: FKM/Viton for solvent resistance
Function: Delivers high-speed (300 cycles/min) dispensing for automotive sealants

3. Solenoid Valve Accessories

Low-Energy Coils: 24V DC operation at just 8W power consumption
Anti-Clog Design: Self-cleaning 0.3mm fluid path for particle-filled materials
Response Time: <5ms opening/closing for precise shot control
Key Benefit: IP67 rated for harsh environments (washdown capable)
Coil Rating: 24V DC/220V AC
Response Time: <10ms
Port Size: 1/8" to 1/4" NPT
Function: Enables on/off control for medium-viscosity (50-50,000cP) adhesives

Cross-Platform & Universal Features

Pressure Rating: 0-1MPa (145psi)
Viscosity Range: 1-200,000cP (Universal up to 500,000cP)
Chemical Compatibility: Resists epoxy, silicone, UV adhesives
Thermal Stability: -30°C to 150°C (Operational: -20°C to 120°C)
Quick Disconnect: Stainless steel fittings with leak-proof connections

5. Industry-Leading Advantages

30% longer service life than OEM components
100% tested for flow consistency (ISO 9001 certified)
Retrofit kits available for major valve brands
50% longer lifespan than standard components
Interchangeable with major industry brands
Leak-proof designs with <0.1% fluid waste

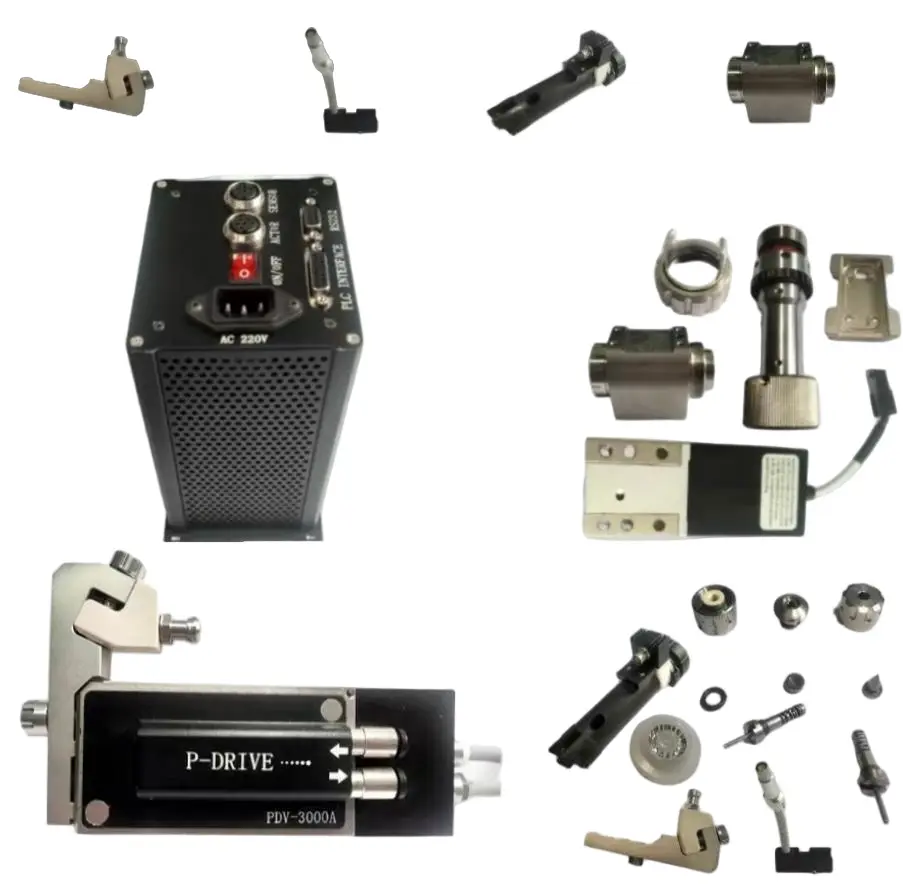

Product Parameters

Product Model / Name	Specifications & Dimensions
PDV-3000A Piezoelectric Jet Valve	114mm×69mm×15mm Including Flow Channel Assembly
Piezoelectric Valve Flow Channel Assembly	691040mm
Nozzle heater	572526mm Without wave soldering
Hot melt glue heating barrel	1404526.5mm
Piezoelectric Valve Nozzle Assembly	107.52.5mm
Piezoelectric Valve Nozzle	Tungsten steel-Nozzle diameter 0.05-0.6mm
Piezoelectric Valve Striker Assembly	17.3*R0.75mm Without impact needle
Piezoelectric Valve Striker	Tungsten steel-Nozzle diameter 33*1.5mm
Piezoelectric Valve High-Temperature Sealing Ring	PEEK-1.557.7*2.7mm
PDV-3000A Piezoelectric Jet Valve Controller	Length,Width-Height 197-95-115mm
Pneumatic Valve Cavity	5229.532.5mm
Solenoid Valve	73.53110mm Without cable
Stroke Adjustable Assembly	Adjustment mark 5lc-1cl
Nozzle Fixing Assembly	27*30.5mm
Valve Body Fixing Block	45338mm
Pneumatic valve 3rd Generation Heater	24V Heating
Pneumatic Valve High-Temperature Sealing Ring	PEEK-383mm
Pneumatic Valve Striker, Tungsten ASSY pin	CL model, 1.3mm-6.4mm

Frequently Asked Questions (FAQ)

Q1: What are the main benefits of using Piezoelectric Jet Valve Accessories?

A: They enable high-speed, non-contact dispensing with a frequency response up to 1kHz and less than 0.5% variation in droplet size. The precision nozzles (50-200μm) and durable ceramic components ensure stability for over 10 million cycles.

Q2: How compatible are these valve accessories with existing equipment?

A: These accessories offer universal performance features and retrofit kits that make them fully interchangeable with major industry brands. They feature standard sizes and quick disconnect fittings for easy integration.

Q3: What types of fluids and adhesives can these systems handle?

A: They support a broad viscosity range from 1 to 200,000 cP (and up to 500,000 cP for universal features). They are chemically compatible with aggressive materials, including epoxies, silicones, solvents, and UV-cure adhesives.

Q4: What is the operating temperature range for these components?

A: The components feature high thermal stability ranging from -30°C to 150°C, with standard operational limits between -20°C to 120°C, making them suitable for both cold and high-temperature heated dispensing applications.

Q5: How durable are the sealing materials in aggressive environments?

A: We utilize high-performance materials such as PEEK for high-temperature sealing rings, PTFE for chemical-resistant valve seals, and FKM/Viton to ensure maximum solvent resistance and leak-proof operation.

Q6: Do these accessories require tools for nozzle and striker replacement?

A: Many of the pneumatic and jetting valve assemblies support tool-less, quick-change replacement designs. For instance, the quick-change kits allow nozzle configurations to be replaced in less than 15 seconds to minimize downtime.
