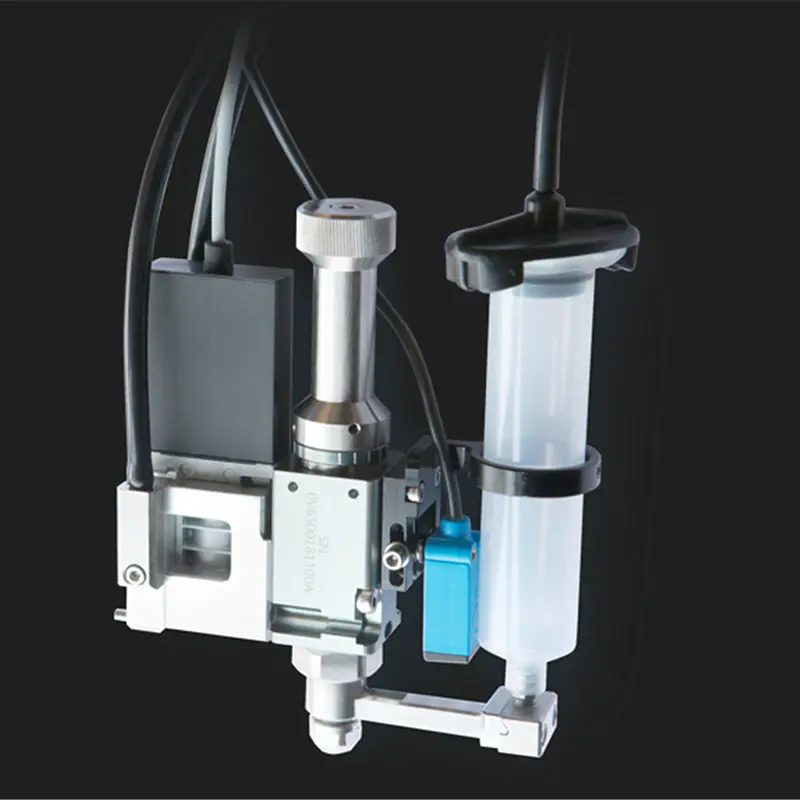

The V6500 is a premium pneumatic jetting valve system engineered for ultra-fast, non-contact dispensing of low to medium viscosity fluids. With its advanced air-controlled mechanism and intelligent controller, this system delivers exceptional precision for high-volume production environments.
The V-6500 (Version 2) is a non-contact jet dispensing valve for controlled-flow, high-speed dispensing of a wide range of adhesives such as surface mount adhesives, conductive silver pastes, IC encapsulants, underfill adhesives, sealants, and surface coatings. It can dispense into confined spaces as small as 100 microns and can also dispense accurately and precisely in a given location at weights down to 0.01 milligrams.
In conjunction with automated dispensing platforms, the V-6500 (Version 2) Jet Valve maximizes the cost-effectiveness of dispensing in the electronics packaging, lighting, energy, life science and technology industries, as well as in other applications that require high-precision, high-efficiency, and space-constrained applications.
| Parameter / Component | Specification Details |
|---|---|
| Material Supply Assembly | Stainless steel luer coupling for syringe (standard) / Inverted coupling for tubing (optional) |
| Cylinder Sizes | 3CC, 5CC, 10CC, 30CC, 55CC (Cylinder sizes 4-part tubing) |
| Main Valve Body | Stainless steel |
| Fluid Lumen Channel | Stainless steel |
| Needle Assembly | Special high-strength material + SUS304 |
| Nozzle Assembly | Special high-strength material |
| Fluid Sealing Ring | PTFE + SUS 304 |
| Gas Sealing Ring | Polyurethane |
| Other O-rings | Buna N |
| Solenoid Valve | 24V (DC) 5W |
| Heater Block | AL6061 Oxidized |
| Heater Tube | 110V (DC) 50W |
| Maximum Heating Temp | 80°C |
| Applicable Fluids | Silicone rubber, Grease-Sealant, Red glue, Solder paste, Epoxy resin |
This system is particularly suitable for manufacturers requiring rapid, precise fluid deposition with minimal downtime. Custom configuration options are available to meet your specific production needs.
