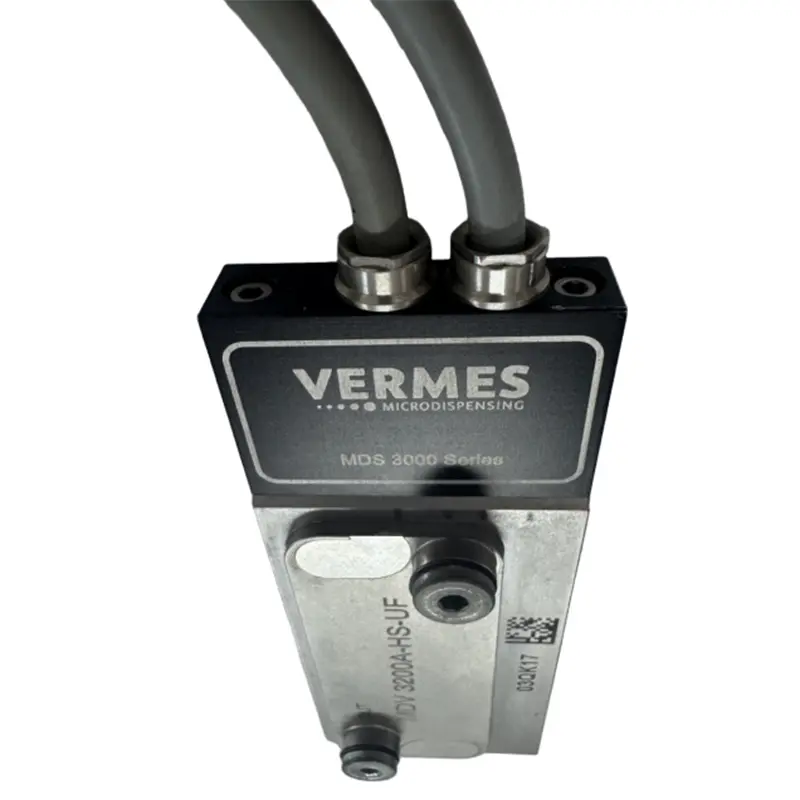

Extremely fast needle lift and drop up to 3000Hz.
Utilizing sophisticated technology to transform the power of the latest generation of piezoelectric ceramics, the MDS3200 sprays ultra-high viscosity media at pressures up to 1000 bar.
Parameters can be freely adjusted, tailored to the different requirements of the process and the characteristics of the media to be sprayed. The electronic controller can change the dispensing parameters without delay.
Highly reproducible dot-to-dot dispensing of media of all viscosities. Precise positioning on very small parts. Dispensing of cavities, grooves, and irregular surfaces.
The modular design of the MDS 3200+ allows for customized configurations. Users can adjust the configuration of a set of MDS 3200 to suit different processes, media, nozzle sizes, shapes, and firing pins. Nearly unlimited media compatibility with selectable contact materials.
Frequently Asked Questions
What is the maximum operating speed of the needle lift and drop?
The system achieves an extremely fast needle lift and drop rate of up to 3000Hz.
What level of viscosity and pressure can the MDS3200 handle?
By utilizing sophisticated piezoelectric ceramics technology, the MDS3200 can spray ultra-high viscosity media at pressures reaching up to 1000 bar.
How does the modular design benefit different applications?
The modular design of the MDS 3200+ allows users to customize configurations easily. You can adapt different nozzle sizes, nozzle shapes, and firing pin shapes to match varying process requirements and spot sizes.
What media supply options are compatible with the valve?
Options include 3 ml to 55 ml cartridges mounted directly on the jet valve, customized hose connections (such as pressure canisters), and optional nozzle heating installations.
What are the key differences between the CP and HS variants?
The Compact version (CP) features a space-saving design with electronic elements on the side of the valve body, suitable for tight existing configurations. The High Speed (HS) version is optimized for applications that require continuous high-speed dispensing.
