ODM 1800S Piezo-electric valve for UV adhesive Manufacturers, Products

1 / 2

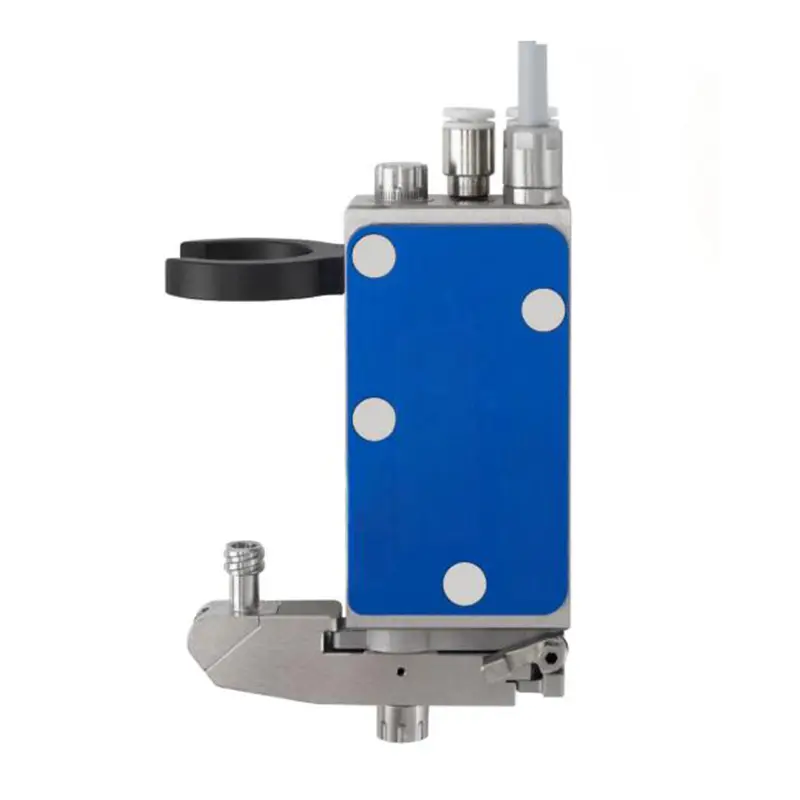

ODM 1800S Piezo-electric valve for UV adhesive Manufacturers, Products

Size L 116* W72* H32(mm)

Weight 580g （valve body(without cartridge heater)

Applicable liquid viscosity 0～500000cps

Operating frequency Max:1200Hz

Maximum drive voltage 100%

Minimum single point diameter 0.2mm

Heating temperature upper limit 150°C

Send Inquiry

Product Description

The 1800S piezoelectric valve is a third-generation piezoelectric injection system designed to maintain excellent fluid injection performance based on stability, consistency, and economy. This advanced product significantly enhances overall service life while reducing the consumption of replacement parts, effectively lowering maintenance costs.

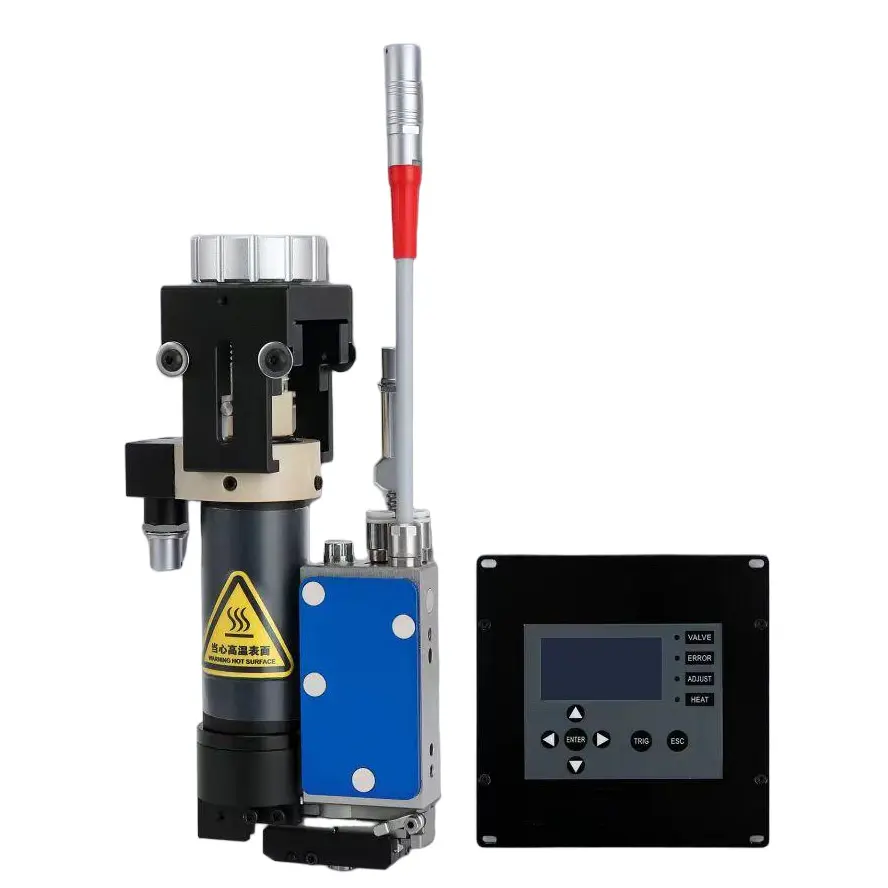

Ideal for demanding industries requiring high repeatability, miniaturization, and zero downtime, it integrates an adjustable temperature control structure as standard (supporting nozzle heating up to 150°C), an integrated nozzle holder design for quick disassembly, and simple calibration functions compatible with the 1600 piezo valve controller.

Technical Specifications

Parameter	Specification details
Voltage Range	60–150 V (adjustable for precision control)
Response Time	<0.1 ms (enabling ultra-fast on/off switching)
Flow Rate	0.001–10 mL/min (programmable for micro to macro dispensing)
Operating Pressure	0.1–0.7 MPa (compatible with low-viscosity to high-viscosity fluids of 1–1,000,000 cP)
Nozzle Sizes	0.1–2.0 mm (interchangeable for diverse dot sizes)
Temperature Range	-20°C to 80°C (suitable for harsh environments)

Key Features

High Precision: Sub-micron accuracy, ideal for micro-dot dispensing.
Non-Contact Operation: Prevents substrate contamination, perfect for sensitive components.
Long Lifespan: Exceeds 500 million cycles due to wear-free piezoelectric ceramic actuation.
Adaptive Control: Supports analog and digital signals for dynamic pressure and flow adjustment.

Competitive Advantages

Speed & Accuracy: Outperforms traditional solenoid valves in high-speed production, delivering 1,000+ dots/second.
Versatility: Handles fluids ranging from thin solvents to highly viscous epoxies without hardware alterations.
Energy-Efficient: Extremely low power consumption of less than 5W.
Smart Integration: Fully compatible with PLCs and vision systems for automated Industry 4.0 production lines.

Target Applications & Fluids

Industry Applications

Electronics: Solder paste, underfill, and protective conformal coatings for PCBs.
Medical: Bio-adhesive dispensing for critical catheters, sensors, and microfluidics.
Automotive: High-precision application of sealants, lubricants, and LED encapsulation.
Consumer Goods: Precision bonding for smartphones, smart wearables, and micro-components.

Compatible Fluids

Excellent compatibility with a wide range of fluids, including:

Epoxy Resin UV Adhesive Hot Melt Adhesive Red Glue Silicone Ink Silver Paste Solvent Flux

Frequently Asked Questions (FAQ)

Q What is the dispensing speed and response time of the 1800S piezoelectric valve?

The 1800S valve features an ultra-fast response time of less than 0.1 ms, allowing for precise on/off switching and high-speed dispensing of over 1,000 dots per second.

Q What viscosity levels and types of fluids can this valve handle?

It supports operating pressures from 0.1 to 0.7 MPa and is compatible with viscosities ranging from 1 to 1,000,000 cP. Compatible fluids include epoxy resin, UV adhesives, hot melt, red glue, silicone, ink, silver paste, solvents, and flux.

Q How does a non-contact piezoelectric valve improve the manufacturing process?

Non-contact operation avoids direct contact with sensitive substrates, preventing mechanical damage and cross-contamination. It also allows for consistent dispensing even on uneven surfaces.

Q Can the valve handle materials that require temperature regulation?

Yes, the valve is equipped with an adjustable temperature control structure as a standard configuration, allowing the nozzle to heat up to 150°C for stable viscosity management.

Q What makes the 1800S valve maintenance-friendly?

It features an integrated nozzle holder design that enables quick disassembly, maintenance, and cleaning. It also features a quick nozzle calibration function to minimize setup downtime.

Q What is the expected operating life of the actuation mechanism?

Thanks to the wear-free design of the piezoelectric ceramic actuator, the valve achieves an exceptional service life exceeding 500 million cycles, which drastically reduces maintenance costs and downtime.
