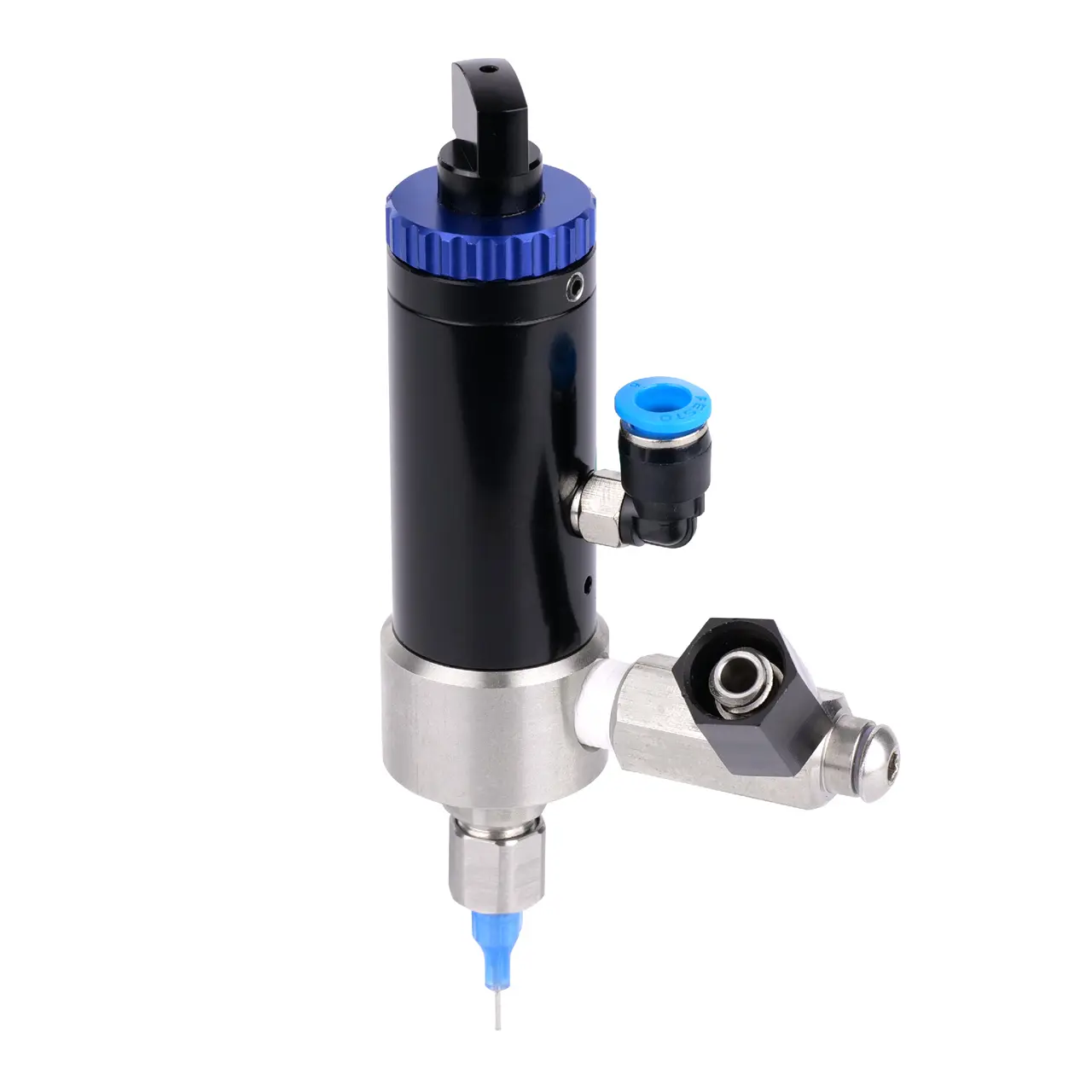

AC-741GM: This design is ideal for micro-precision dispensing. The firing pin impact needle bore plane cuts off the glue cleanly, ensuring that even small aperture needles do not drip.
The AC-741GM is a high-precision diaphragm needle valve designed for controlled micro-dispensing of low to medium-viscosity fluids. With its robust construction and responsive digital controller, it ensures consistent performance in automated production environments.
Precise Micro-Dispensing – Minimal dripping, ideal for small dots/lines
Durable Diaphragm Design – No internal leakage, long service life
Wide Fluid Compatibility – Works with adhesives, solvents, greases
Fast Switching – Improves production efficiency
Easy Maintenance – Simple disassembly & cleaning
Details & Design Features
Structural Advantages
The flow rate is adjustable, easy to calibrate, and requires short adjustment times.
Designed with a small traveling cavity in the glue valve for a clean glue break.
Features easy disassembly and reduced maintenance requirements.
Premium Material Construction
Cylinder body, firing pin, nozzle, fluid path, atomizing cap, and piston are made of 303 stainless steel.
Robust materials ensure a long service life and high resistance to wear and tear.
Typical Applications
Electronics: PCB encapsulation and glue dispensing
Automotive: Gasket sealing and O-ring lubrication
Medical: Catheter bonding and syringe assembly
General Industry: Precision coating and small part bonding
Competitive Advantages
Cost-Effective: Reliable performance at competitive pricing.
Low Maintenance: Fewer wear parts compared to traditional needle valves.
Flexible Control: Supports manual or automated operations.
Compact Design: Saves valuable space in production lines.
Ideal for manufacturers seeking repeatable, leak-free fluid dispensing in high-mix production. Custom configurations available.
Frequently Asked Questions
1. What types of fluids is the AC-741GM suitable for?
The AC-741GM is designed to handle low to medium-viscosity fluids (ranging from 1 to 50,000 cP) including catalysts, marking inks, silicone oil, UV glue, solvents, adhesives, and greases.
2. How is the flow rate adjusted on this needle valve?
The flow rate can be adjusted within a range of 0.01 to 50 mL/min. The design allows for easy calibration and adjustment, significantly reducing setup times during production shifts.
3. What materials are used to construct the valve components?
The critical components, including the cylinder body, firing pin, nozzle, fluid path, atomizing cap, and piston, are made of durable 303 stainless steel. The sealing system utilizes chemical-resistant PTFE to prevent internal leakage.
4. Can this valve be integrated into automated production systems?
Yes, it comes with a programmable digital controller featuring a touchscreen and PLC interface, making it highly compatible with automated and manual production line setups.
5. What makes the AC-741GM design leak-free and precise?
It features a small traveling cavity in the glue valve combined with a firing pin impact needle bore plane cutoff design. This mechanism prevents dripping even when using small-aperture needles, ensuring clean fluid breaks.
6. Is maintenance complex for the AC-741GM?
No, the valve is engineered for easy disassembly and cleaning. Due to its robust design and fewer wear parts compared to traditional needle valves, it requires minimal maintenance.
