Equipment Specifications: Frame Dimensions (L x W x H): 850 mm x 1000 mm x 1700 mm

Control System: Industrial PC + Display

Programming Method: Manual Teaching + Mouse and Keyboard

Work Platform Height: 910 ± 20 mm

Coating Travel: 500 mm (L) x 500 mm (W)

X, Y, Z Drive Method: Stepper motor drive

Maximum X, Y Speed: 600 mm/s

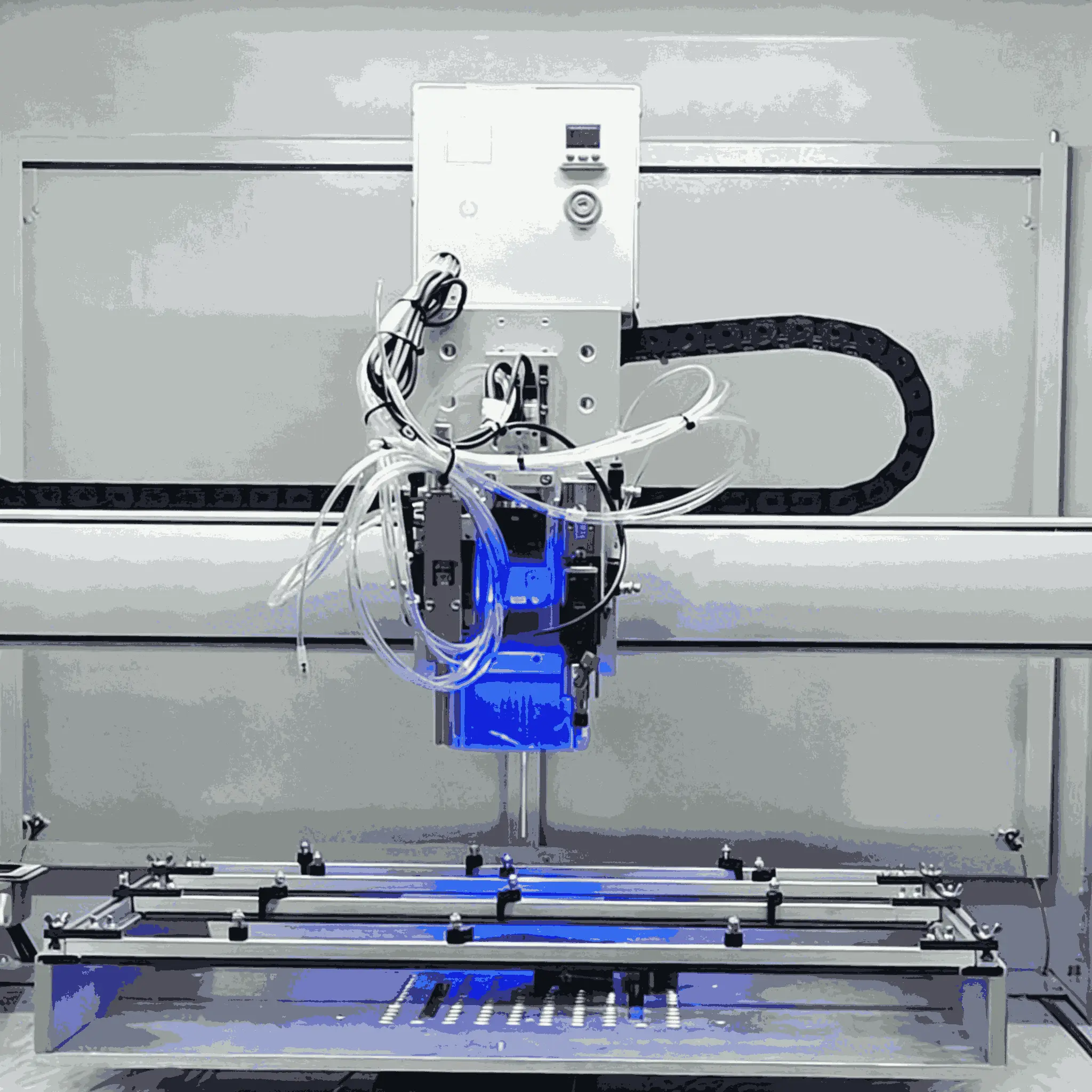

Dispensing Valve Types: 1 precision atomizing valve (A-603) and 1 precision dispensing valve (A-D05)

Work Surface: Single Y-axis work surface

Operating System: PC interface

Teach-in mode: Keyboard/mouse + CCD

Reservoir capacity: 1 x 5L adhesive reservoir + 1 x 2L cleaning reservoir

Lighting: Built-in lighting source

Inspection: Built-in UV inspection light

Power supply: AC 220V, 50Hz

Air supply: 4–6 kgf/cm²

Weight: Approx. 500 kg

Total power: 1.2 kW

Quotation (including tax) RMB: 44000

Ali quotation (USD): 8, 485.71

Send Inquiry

Product Description

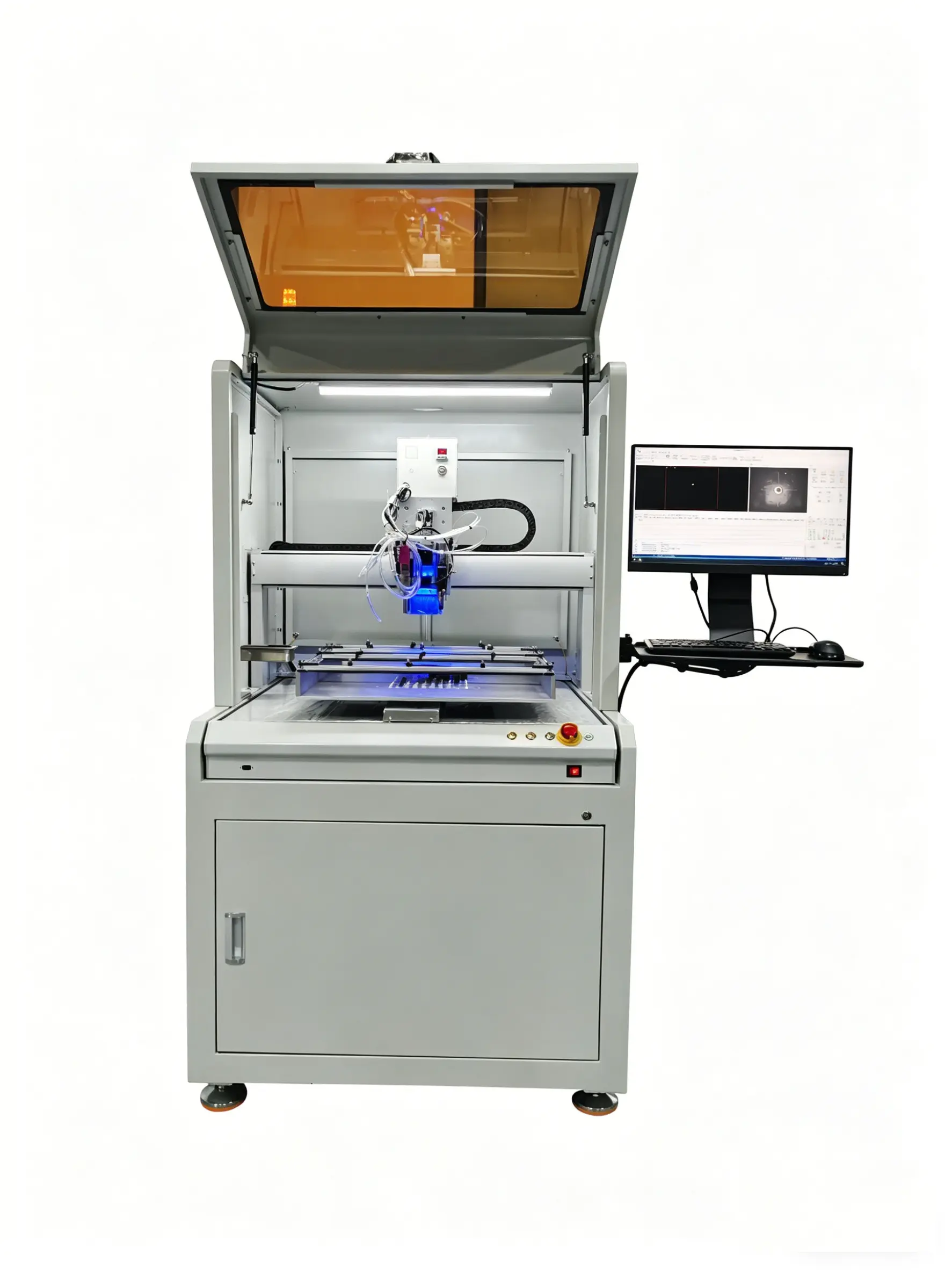

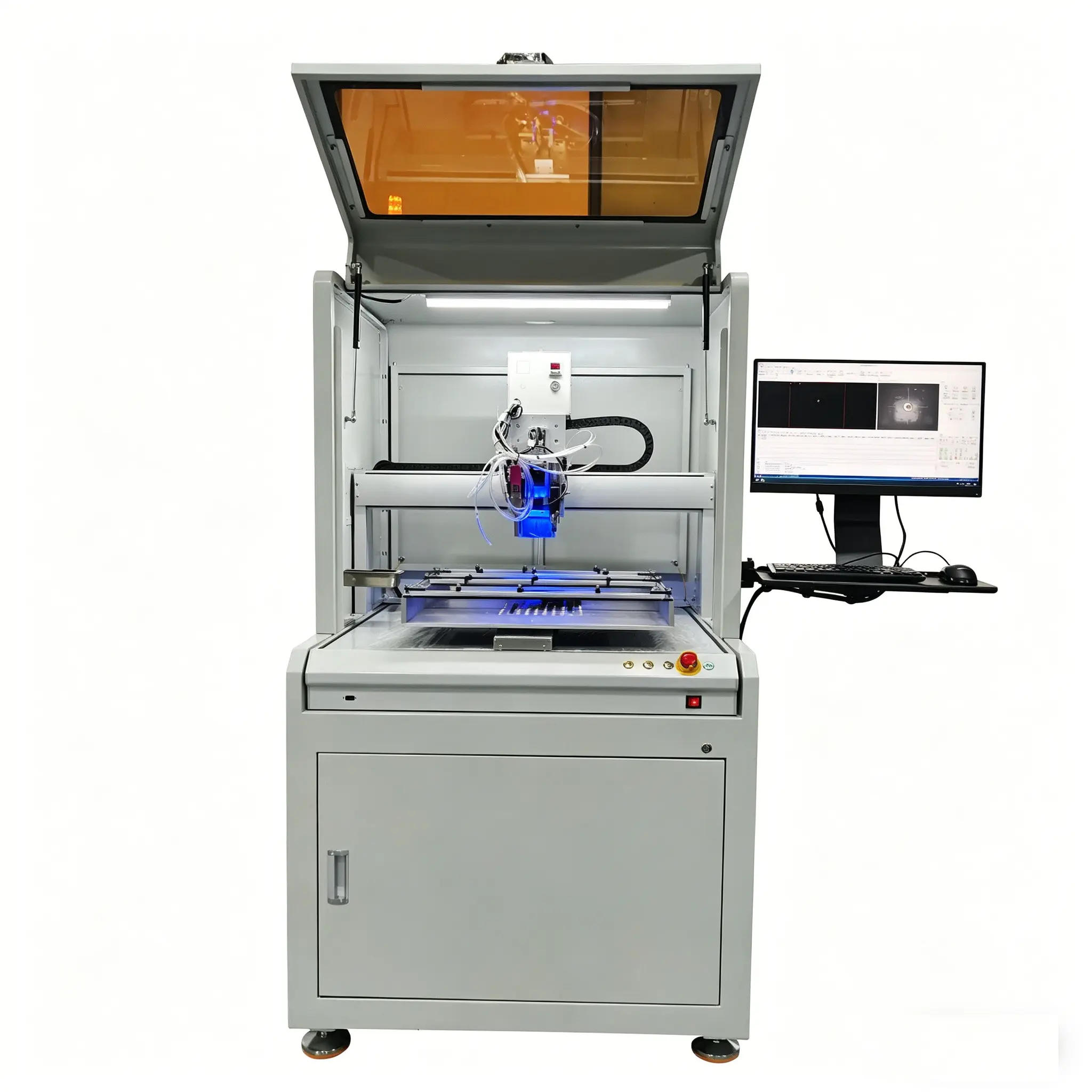

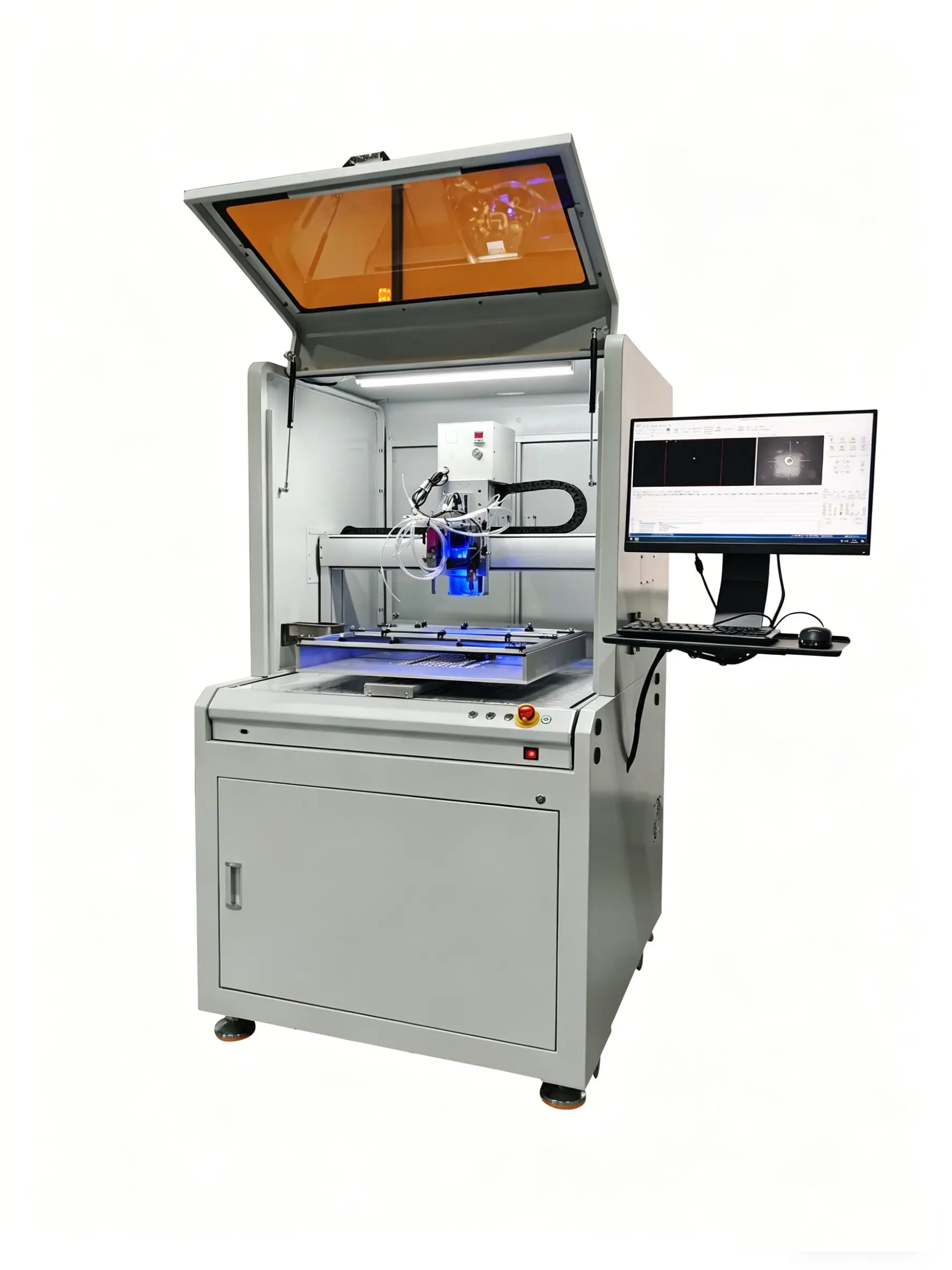

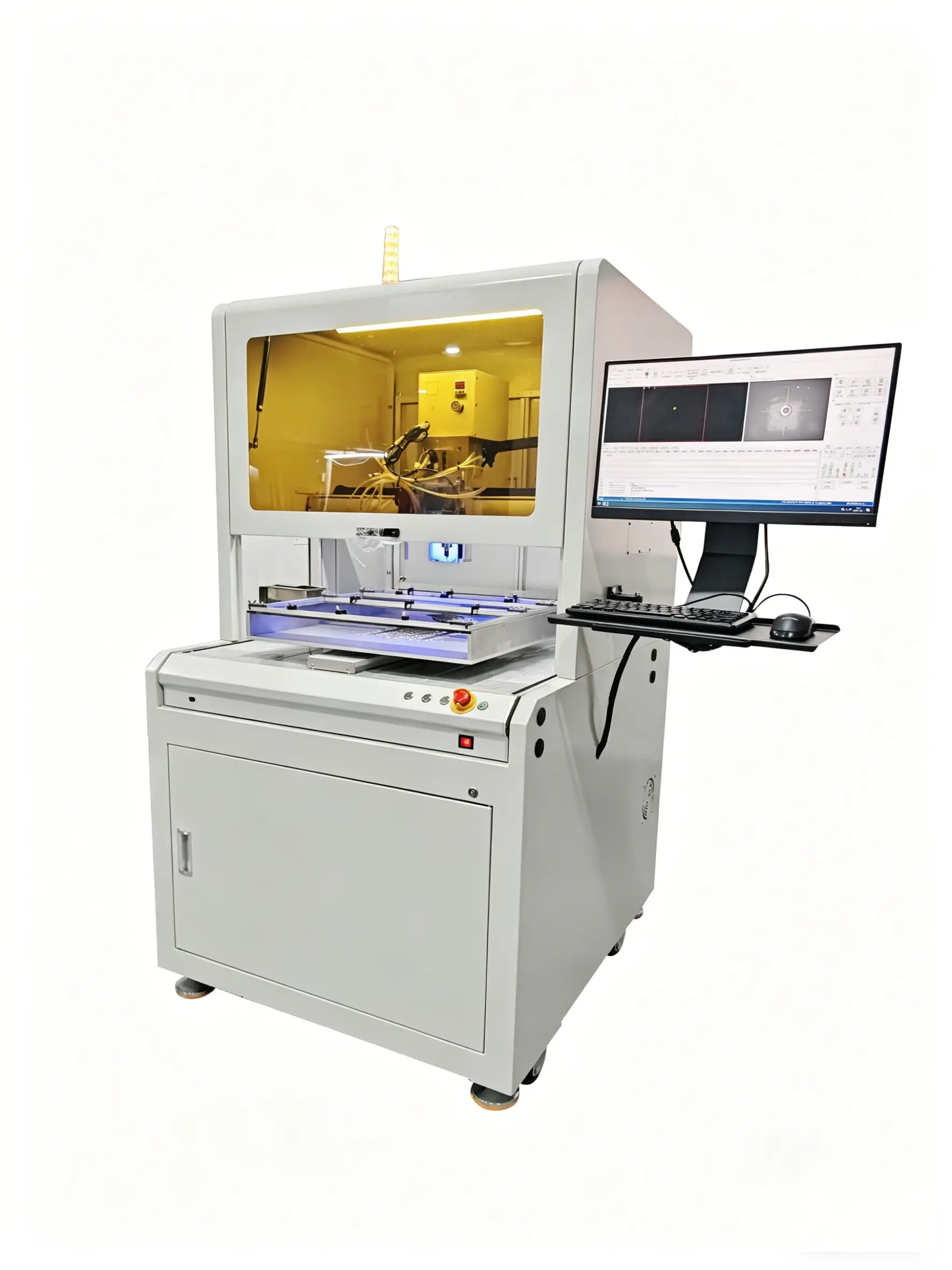

AC-T761-2 Floor-Standing Vision Conformal Coating Machine: AI-Powered Precision for High-End Manufacturing
The AC-T761-2 Floor-Standing Vision Conformal Coating Machine sets a new standard for precision coating, integrating advanced AI vision technology with heavy-duty performance to meet the demands of high-end manufacturing industries like aerospace, medical devices, and industrial automation. Engineered to address the need for ultra-precise, repeatable coating, this model is critical for components where even microscopic inconsistencies can lead to catastrophic failures and is exported widely to Southeast Asia, Europe, and America.
High-End Specifications
Features a maximum coating area of 500mm × 400mm (customizable to 600mm × 500mm). The 280kg unit incorporates a robust steel frame and anti-vibration feet to keep operational noise below 65dB. Overall dimensions (1200mm × 1000mm × 2000mm) include a built-in vision system and a dust-proof enclosure complying with ISO 14644-1 Class 8 cleanroom standards.
AI Vision Guidance
Powered by AI algorithms, the high-resolution 5MP camera and 3D laser scanner identify workpiece features with a precision of ±0.005mm. It automatically corrects misalignments up to ±2mm, reducing setup time by 50% and enabling highly selective coating that reduces material waste by up to 20%.
Material Flexibility
Supports viscosity ranges of 50-20,000 cP, including high-temperature ceramics, biocompatible coatings, and conductive inks. The piezoelectric dispensing system delivers flow control down to 0.001ml per shot, accommodating ultra-thin (3-10μm) to thick (50-200μm) coating requirements with a built-in fluid degassing module.
Operational Efficiency
Stores up to 200 workpiece profiles with auto-recipe adjustments based on ambient environment factors. Features a touchscreen interface with real-time path simulation to minimize trial waste. Supports Industry 4.0 protocols (Modbus, OPC UA) for seamless remote monitoring and predictive maintenance.
Tailored for Demanding Industrial Applications
With high customization capabilities, the AL-T761-2 can be modified to specific high-end requirements—such as adding a Class 7 cleanroom enclosure for aerospace parts, integrating a nitrogen purge system for oxygen-sensitive coatings, or updating the vision system for transparent workpieces. Detailed technical specifications, certification documents (CE, FDA, ISO 9001), and case studies ensure operational confidence. Backed by a 24-month warranty and application engineering support, this system is a strategic investment for businesses operating in high-stakes, high-precision industries.
Frequently Asked Questions
What is the maximum coating area supported by the AC-T761-2?
The standard maximum coating area is 500mm × 400mm. However, this can be customized and expanded up to 600mm × 500mm to accommodate larger PCB assemblies or industrial control panels.
How precise is the AI-driven vision positioning system?
The machine uses a 5MP high-resolution camera and a 3D laser scanner guided by AI algorithms to align and inspect features with an accuracy of ±0.005mm. It can automatically correct for workpiece misalignments up to ±2mm.
What types of coating fluids and viscosities can it process?
It supports a wide range of materials from low to high viscosity (50 to 20,000 cP), including thermal ceramics, biocompatible coatings, and conductive inks. A built-in degassing module removes microbubbles to ensure pinhole-free application.
Can this machine be integrated into an automated smart factory?
Yes. The machine supports Industry 4.0 communication protocols, including Modbus and OPC UA, enabling seamless data collection, remote system monitoring, and predictive maintenance scheduling.
Does the machine comply with ISO cleanroom standards?
Yes, the standard model includes a dust-proof enclosure that complies with ISO 14644-1 Class 8 standards. For specialized aerospace or medical needs, a Class 7 cleanroom enclosure can be integrated as a customization.
What is the warranty period for this coating machine?
The AC-T761-2 conformal coating machine is backed by a comprehensive 24-month warranty, along with application engineering support for troubleshooting and path optimization.
