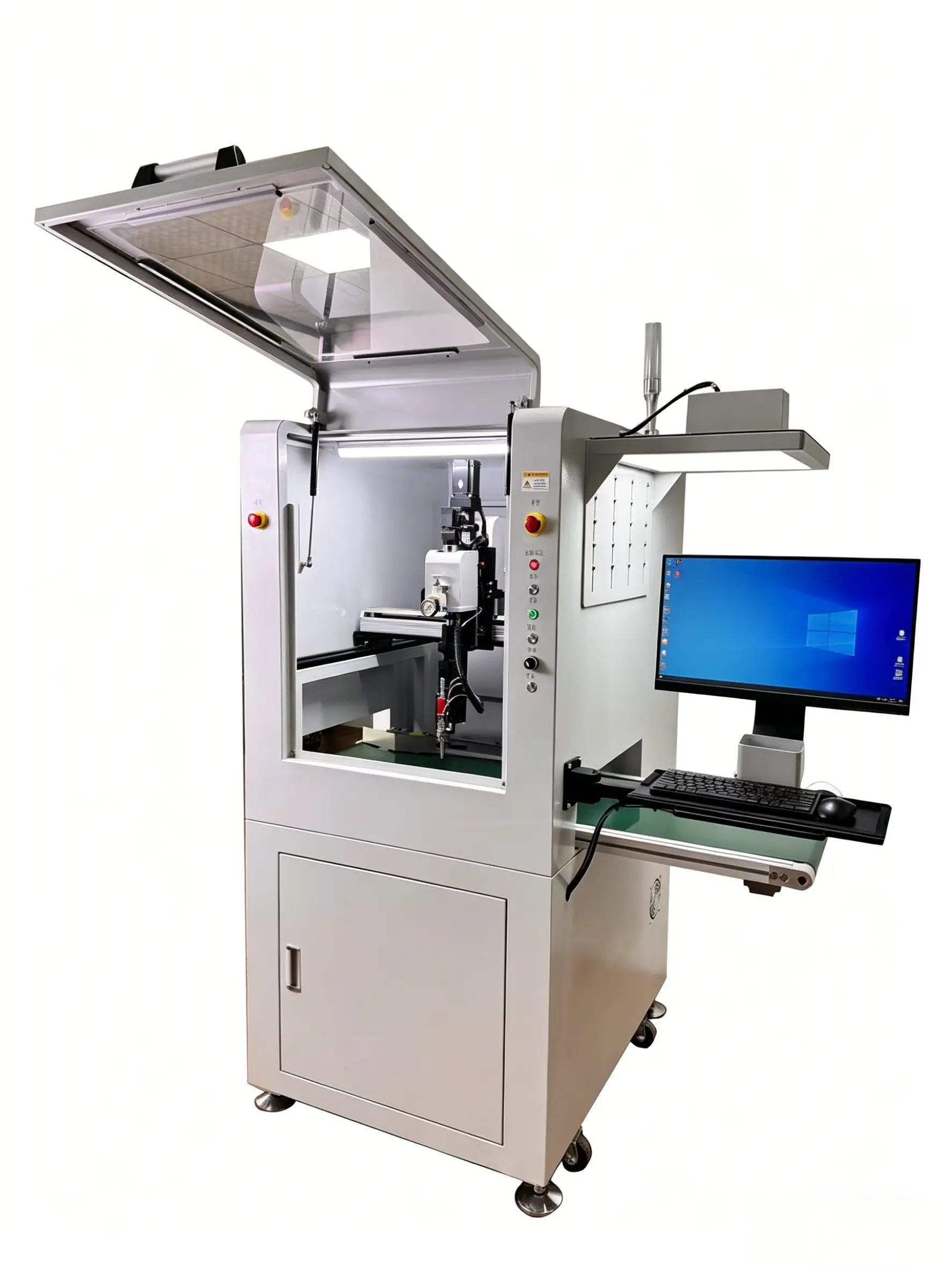

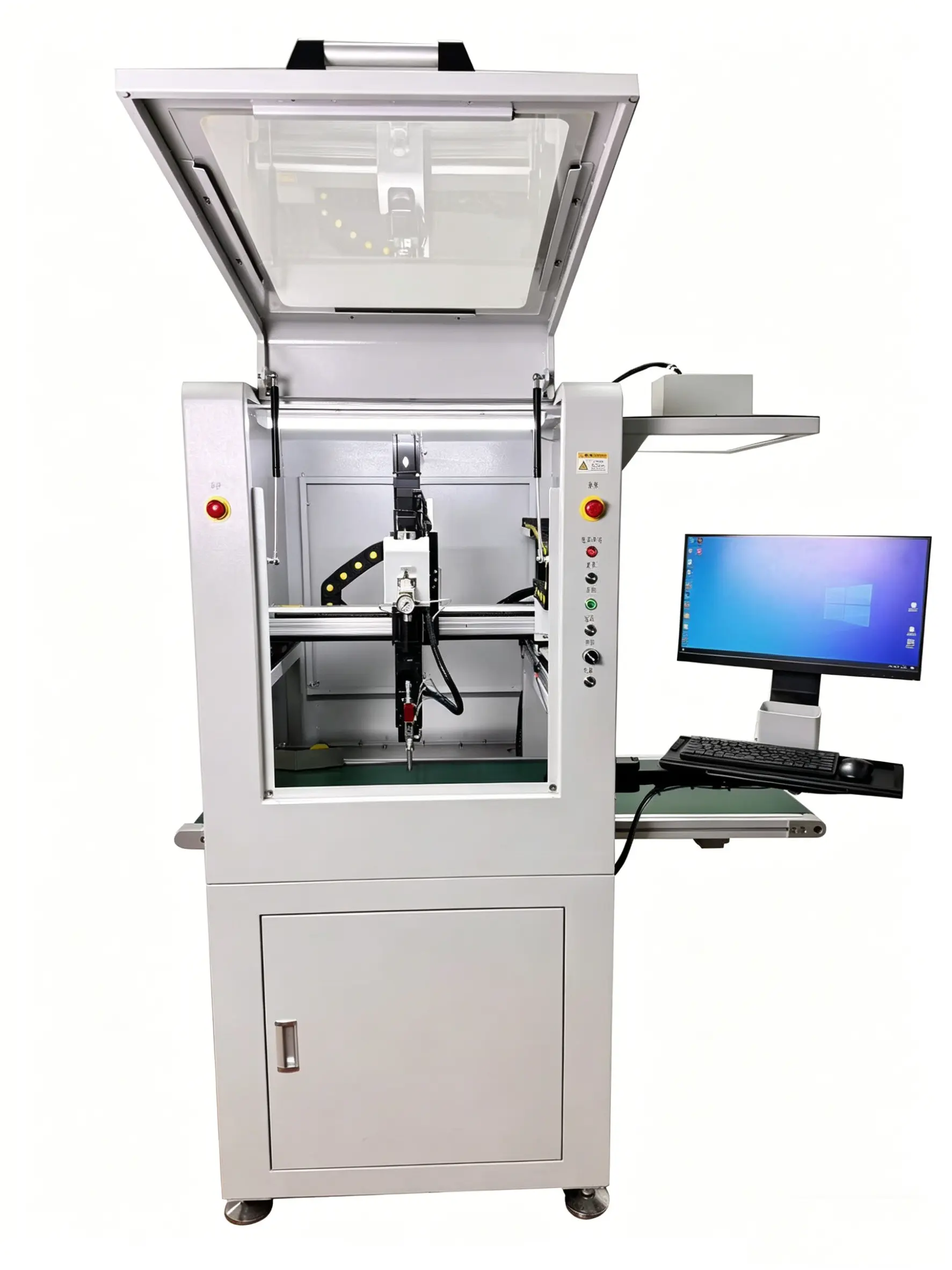

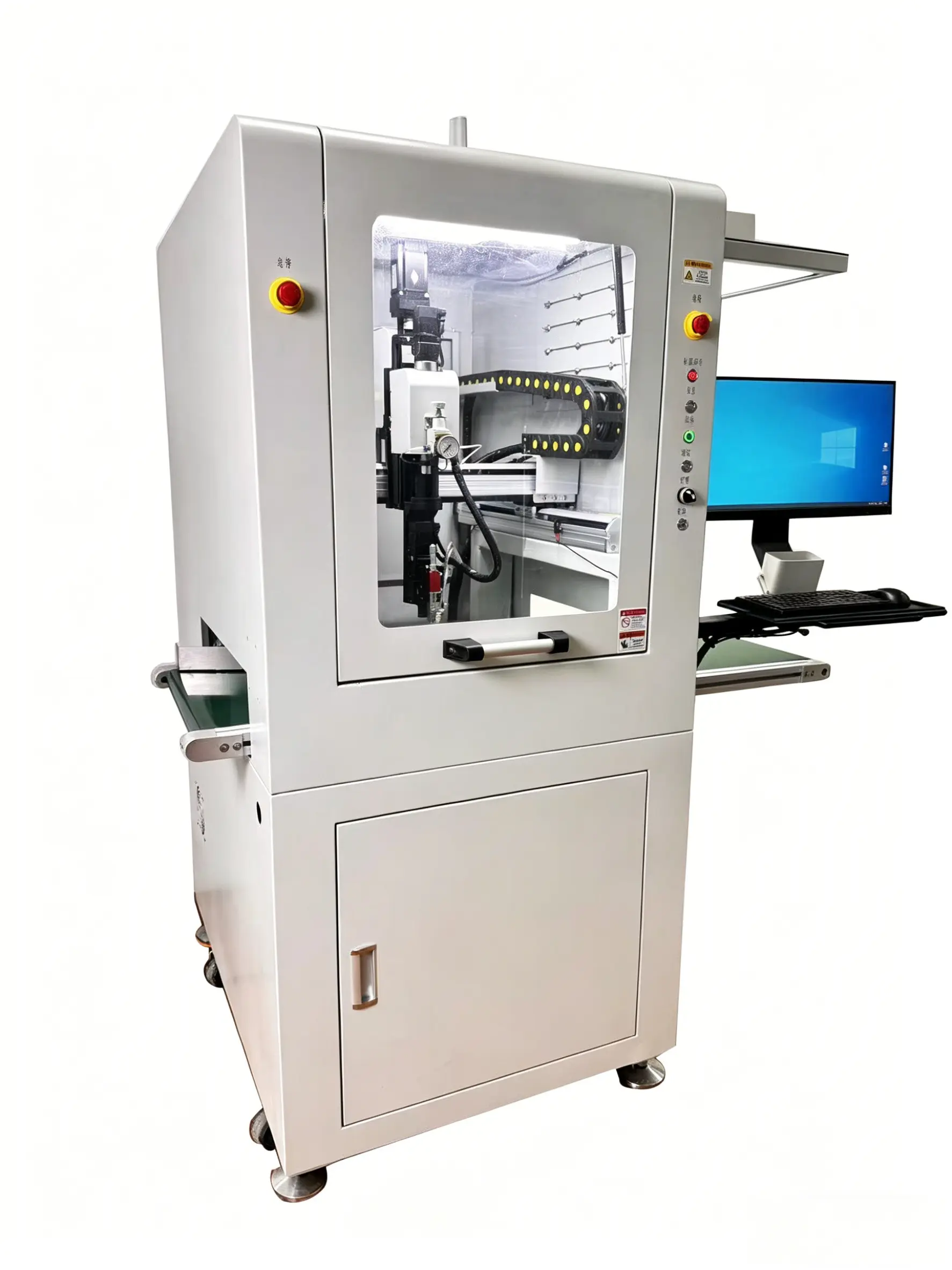

The AC-M30 Follow-Up Conformal Coating Machine redefines flexibility in coating applications, specifically designed to handle irregularly shaped workpieces—from curved electronic components to complex mechanical parts—that challenge conventional fixed-path coating machines. As a direct manufacturer, we’ve engineered this model to address the unique needs of industries like consumer electronics, medical devices, and automotive components, where non-standard workpiece shapes demand adaptive coating solutions.
Specifications of the AL-M30 are tailored for versatility. While specific coating area dimensions are optimized for follow-up (dynamic) operation, it typically handles workpieces up to 300mm in maximum length and 200mm in width—covering a wide range of small to medium-sized irregular components.
The worktable is equipped with a high-precision vision system and adjustable fixtures, capable of securing workpieces of varying shapes and weights (up to 10kg) without damaging delicate surfaces.
At the heart of the machine is its dynamic follow-up system, which uses a combination of vision recognition and force feedback to track the contours of irregular workpieces in real time. This maintains a constant distance (0.5-5mm adjustable) from the workpiece surface to ensure uniform coating thickness (5-50μm) even on curved or textured surfaces.
The system supports both 2D and 3D workpiece scanning, with a scanning accuracy of ±0.02mm, making it suitable for complex components like medical device sensors and automotive dashboard electronics.

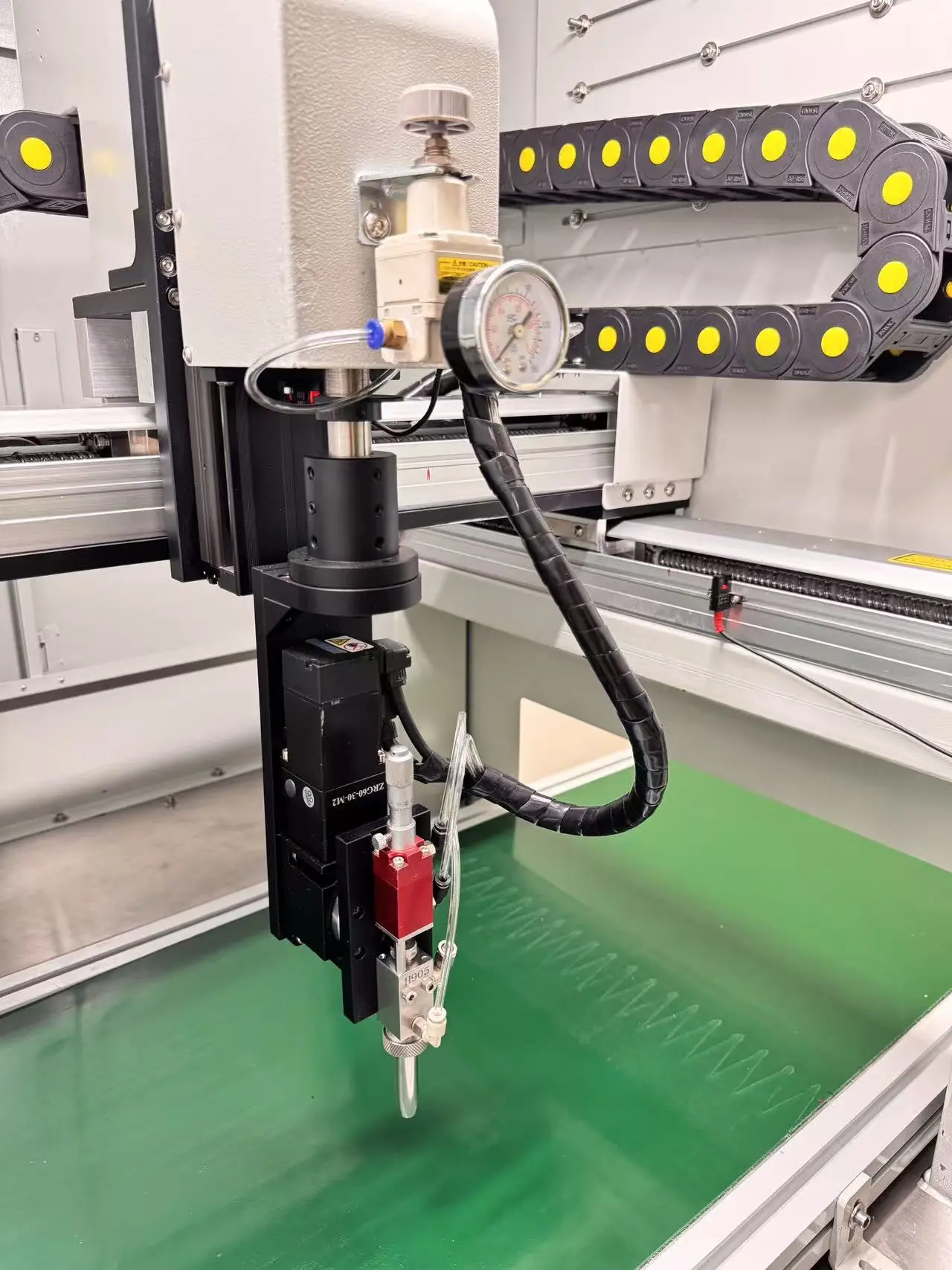

Works with a wide range of coating fluids, including thin conformal coatings, thick adhesives, and conductive pastes, with a viscosity range of 100-50,000 cP. The coating head is interchangeable (spray, needle, or brush tips), allowing switchovers in less than 5 minutes.
Includes a material temperature control module that maintains fluid temperature between 20°C and 40°C. This ensures consistent viscosity, which is critical for achieving uniform coating results.
Smart Programming: The vision system can store up to 50 workpiece profiles, enabling quick changeovers between different products and reducing setup time by 40% compared to manual programming.

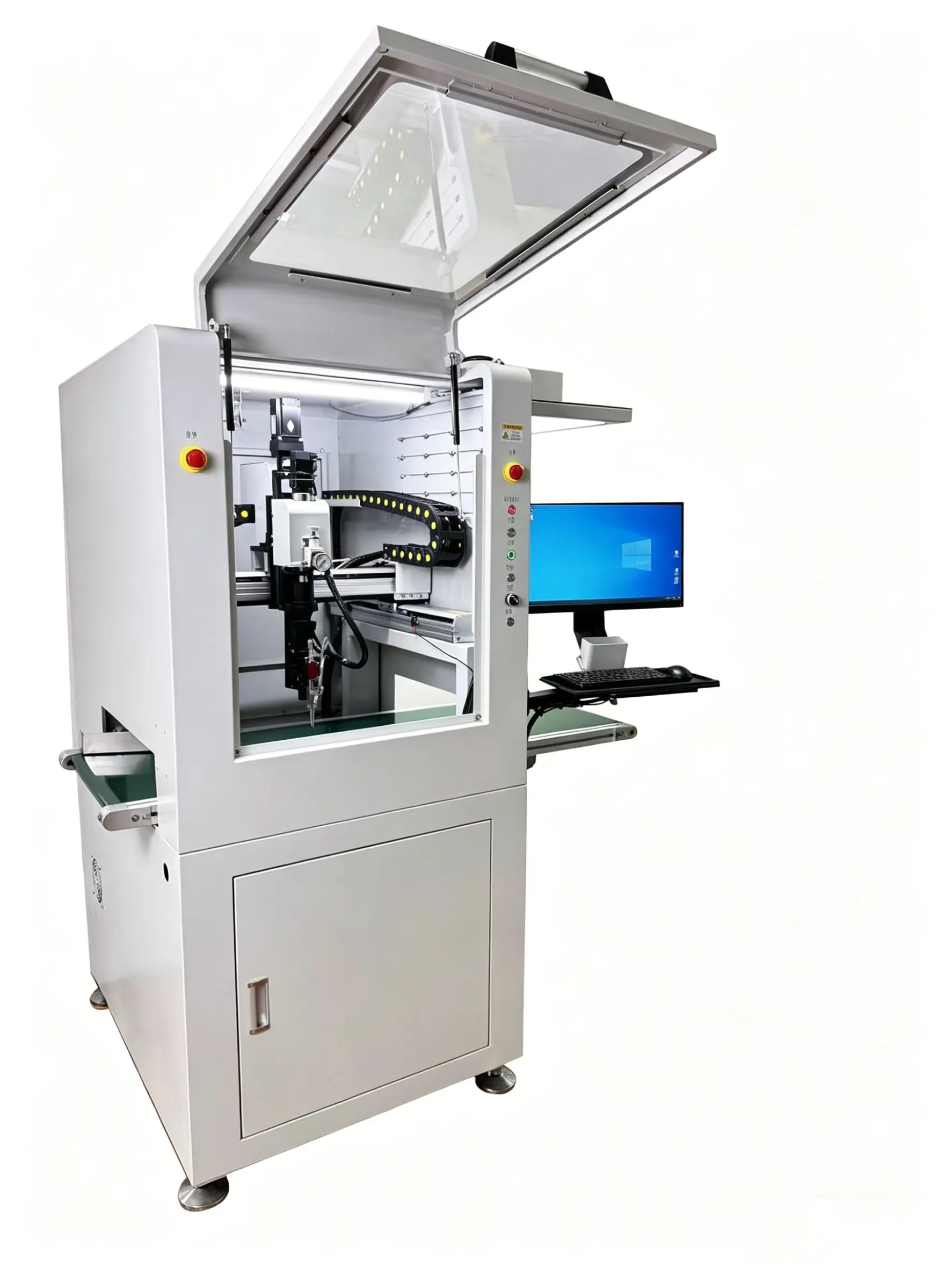

Intuitive Interface & Safety: The touchscreen interface allows operators to adjust follow-up speed (10-200mm/s), coating thickness, and material flow rate with real-time previews. For safety, the machine includes a transparent safety cover with interlock protection, preventing operator exposure to coating materials and complying with CE and FDA standards.
Factory Customization: We support full customization, from modifying the vision system to handle larger workpieces, to adapting the power supply to 110V for North American markets, or integrating a UV curing module for fast-drying materials. We ensure transparent pricing and reliable after-sales support, including free technical training and a 12-month warranty, with replacement parts shipped to global locations within 3-5 business days.
Ideal Applications: Curved PCB coating, medical device protection, and automotive component sealing. The AL-M30 Follow-Up Conformal Coating Machine combines flexibility and precision to solve the most challenging coating problems.
The AC-M30 features a dynamic follow-up system combining vision recognition and force feedback. It tracks workpiece contours in real time, maintaining a constant distance of 0.5-5mm from the surface to ensure uniform coating thickness on curved or textured surfaces.
It typically handles workpieces up to 300mm in maximum length and 200mm in width. The high-precision worktable and adjustable fixtures can secure workpieces weighing up to 10kg without damaging delicate surfaces.
The machine supports a wide range of fluids including thin conformal coatings, thick adhesives, and conductive pastes, with a viscosity range of 100 to 50,000 cP. The coating heads are interchangeable (spray, needle, or brush) and can be swapped in under 5 minutes.
The system supports 2D and 3D scanning with ±0.02mm accuracy. It can store up to 50 workpiece profiles to allow rapid changeovers, reducing product setup time by up to 40% compared to manual programming.
As a direct manufacturer, we offer full customization, including modifying the vision system for larger components, adapting power specifications (like 110V), or adding UV curing modules. We provide a 12-month warranty, free technical training, and global spare parts delivery within 3-5 business days.
