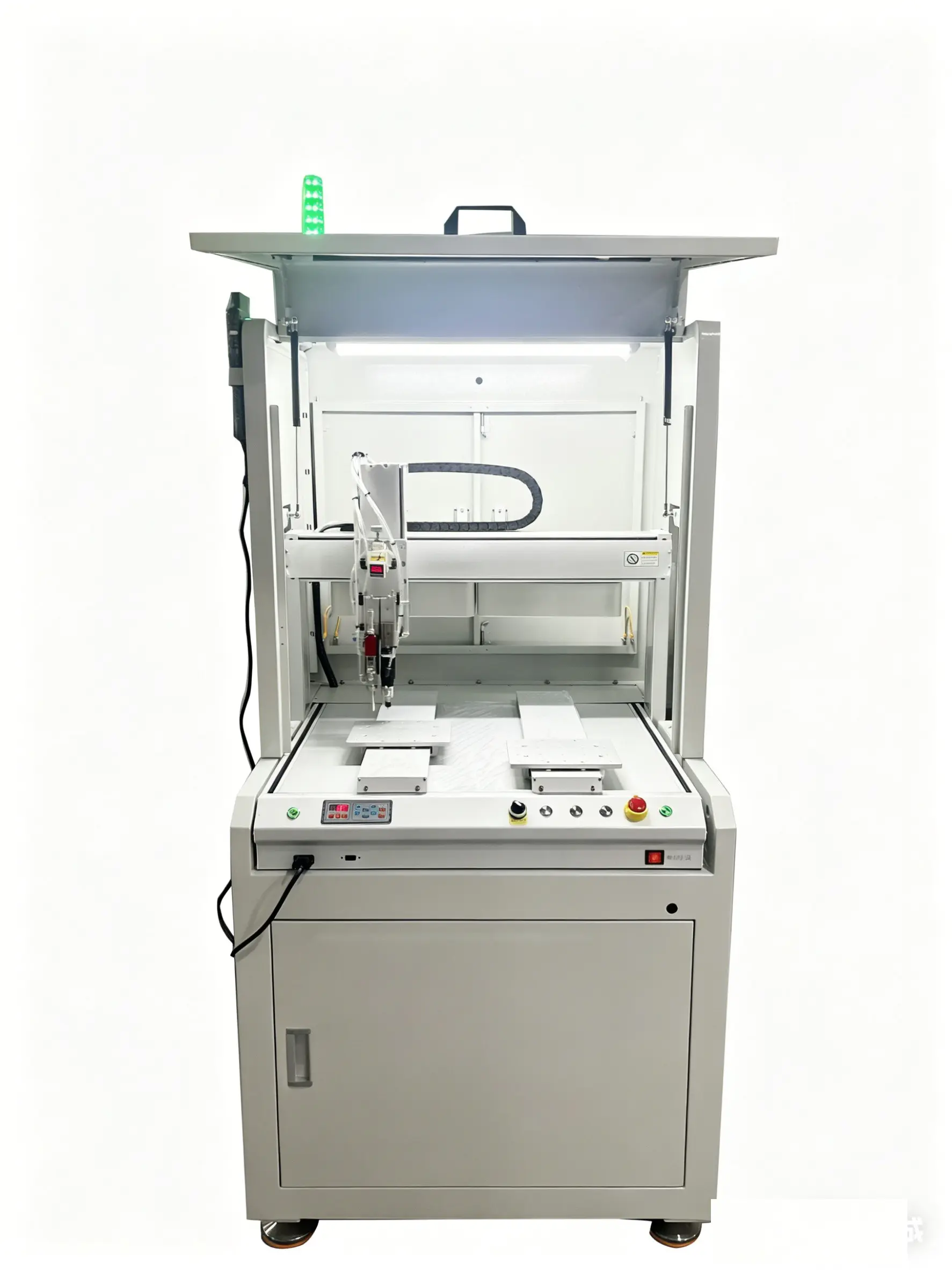

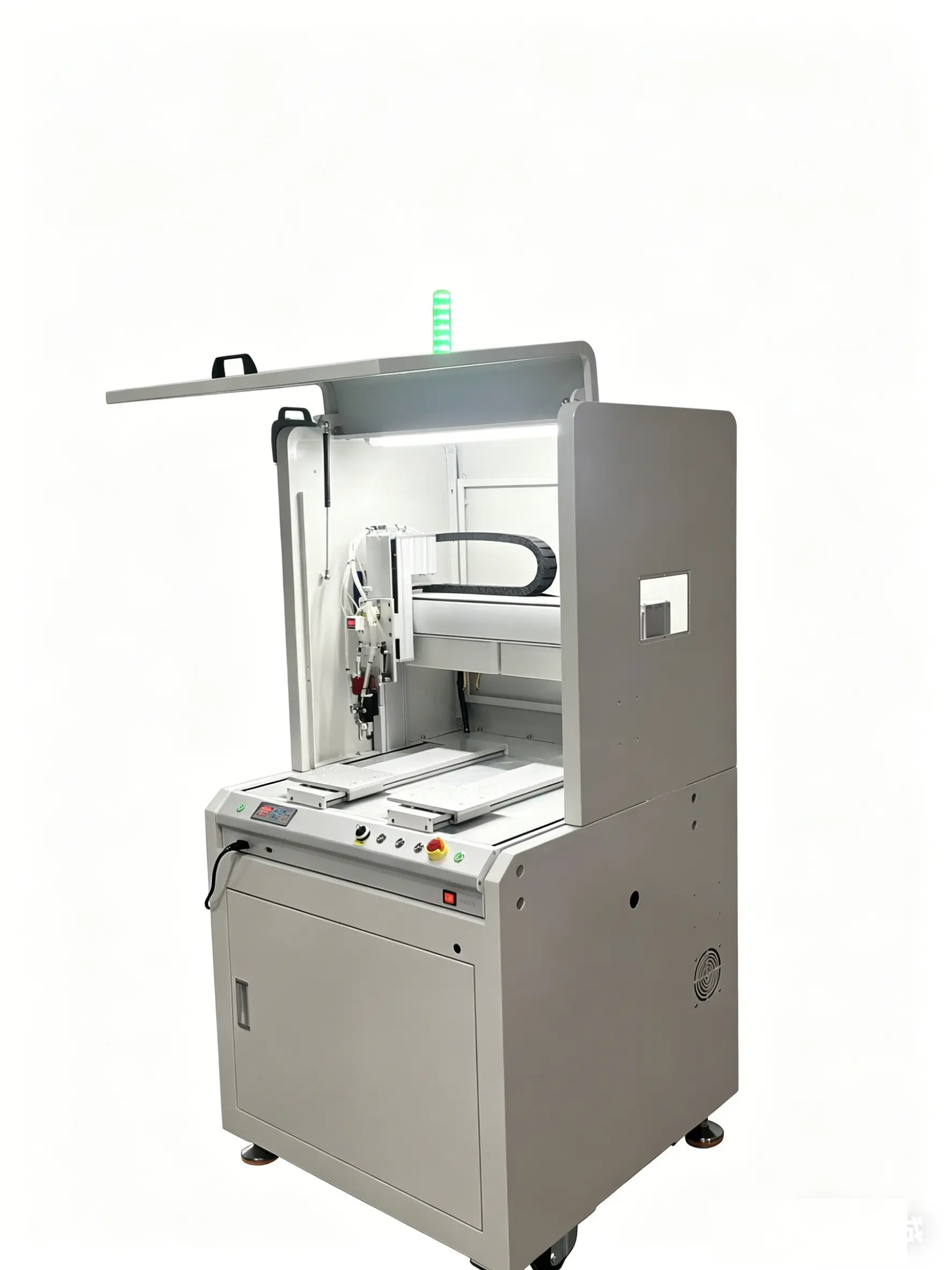

ODM UV Curing Integrated Conformal Coating Machine Manufacturer, Product

Single-side curing area: L300 × W280 (mm)

Machine weight: 200 kg

Machine dimensions: L840 × W860 × H1650

Drive system: Stepper motor + synchronous belt

Motor system: Precision stepper motors

Dispenser valve types: One A-603 precision atomizing valve and one A-D05 needle-type coating valve

Reservoir capacity: Two 2L reservoirs

Guide rails: Imported brand; dual-rail drive for the main spindle

Cylinders: Well-known brand drive cylinders control valve body elevation

Repeatability: ±0.02 mm

Travel Speed: X, Y1, Y2: Up to 500 mm/s; Z: 300 mm/s

Work Surface: Dual Y-axis work surface

Teach-in Mode: Teach pendant; programs can be exported for reuse

Power Supply: AC 220V, 50Hz, 900W

Curing Method: LED light curing, wavelength 365 nm

Light Source Type: 2 sets of light sources, illumination area L250 × W160 mm

Total Light Source Dimensions: L300 × W210 × H60 mm

Light Source Lifespan: 30,000 hours

Light Source Weight: 1.8 kg

Light Source Power: 200 W

Quotation (including tax) RMB: 36000

Ali quotation (USD): 6,942.86

Send Inquiry

Product Description

UV Curing Integrated Conformal Coating Machine: All-in-One Efficiency for Fast-Drying Applications

The UV Curing Integrated Conformal Coating Machine represents a breakthrough in all-in-one coating solutions, combining precision coating and instant UV curing into a single, streamlined process—eliminating the need for separate curing equipment and drastically reducing production time. Designed to meet the demands of industries like electronics assembly, optical components, and consumer goods, where fast turnaround and consistent curing quality are critical.

Key Breakthrough

By combining coating and curing into one unified step, this system reduces standard process times by 50% compared to traditional configurations. It maximizes throughput without compromising quality, making it a critical asset for high-volume production lines.

Optimized Specifications

Coating Area: Max 400mm × 300mm (suitable for standard PCBs and lenses).
Dimensions: L900mm × W800mm × H1500mm.
UV Curing Wavelength: 365nm standard wavelength.
Weight: Approximately 150kg.

Core Performance Points

Precision Drive: Stepper motor system with ±0.02mm repeat accuracy.
Thickness Range: Uniform coating thickness (5-30μm).
LED Lifespan: 200W high-power light source lasting 30,000 hours.
Space Savings: Compact footprint reduced by 60%.

The integrated control system synchronizes coating and curing parameters, automatically adjusting UV light intensity (100-1000 mW/cm²) and curing time (1-60 seconds) based on the coating thickness and material type. This ensures complete curing without overexposure, preventing coating brittleness or workpiece damage. The system also includes a temperature monitoring function, keeping the workpiece surface temperature below 60°C during curing—safe for heat-sensitive components like LEDs and sensors.

Space efficiency is a major benefit for workshops with limited area. By eliminating the need for separate curing ovens or conveyors, the integrated design reduces the machine’s footprint by 60% compared to traditional two-step setups. This is particularly valuable for small to medium-sized manufacturers in Southeast Asia and Europe, where workshop space is often at a premium. The machine also features a modular design, allowing for easy maintenance of both coating and curing modules without disassembling the entire system.

Customization upgrades are supported for this integrated model—including a larger coating/curing area (up to 600mm × 400mm), multiple UV wavelength options (395nm for specific materials), and a nitrogen protection system for oxygen-sensitive coatings. Detailed product specifications and resources are provided to ensure global customers have all the information they need to make informed decisions.

Backed by a 12-month warranty and global technical support, the UV Curing Integrated Conformal Coating Machine is an ideal solution for businesses looking to streamline production, reduce costs, and improve quality. Whether you’re a European electronics manufacturer needing fast PCB curing or a Southeast Asian optical component supplier requiring precise coating, this all-in-one machine delivers the efficiency and reliability to meet your production goals.

Frequently Asked Questions

What is the standard coating area and dimension of the machine?

The standard configuration supports a maximum coating area of 400mm × 300mm, which is suitable for standard PCB boards, optical lenses, and small assemblies. The physical dimensions of the machine are L900mm × W800mm × H1500mm.

How much production time does this integrated machine save?

By combining the coating and curing processes into one step, it reduces the production process time by up to 50% compared to using separate coating and curing setups.

What UV curing parameters can be adjusted?

The integrated system allows automatic and manual adjustment of the UV light intensity (from 100 to 1000 mW/cm²) and curing time (from 1 to 60 seconds) depending on the coating thickness and material type.

Is the curing temperature safe for heat-sensitive components?

Yes, the system features a temperature monitoring function that keeps the workpiece surface temperature below 60°C during the curing process, making it safe for sensitive components like LEDs and sensors.

What customization options are available?

Available upgrades include a larger coating/curing area of up to 600mm × 400mm, alternative UV wavelengths such as 395nm, and a nitrogen protection system designed for oxygen-sensitive coatings.
