Single-side coating: 425mm × 295mm

Equipment weight: 200 kg

Equipment dimensions: 925mm × 900mm × 1650mm

Drive system: Stepper motor + synchronous belt control

Motor system: Precision stepper motor

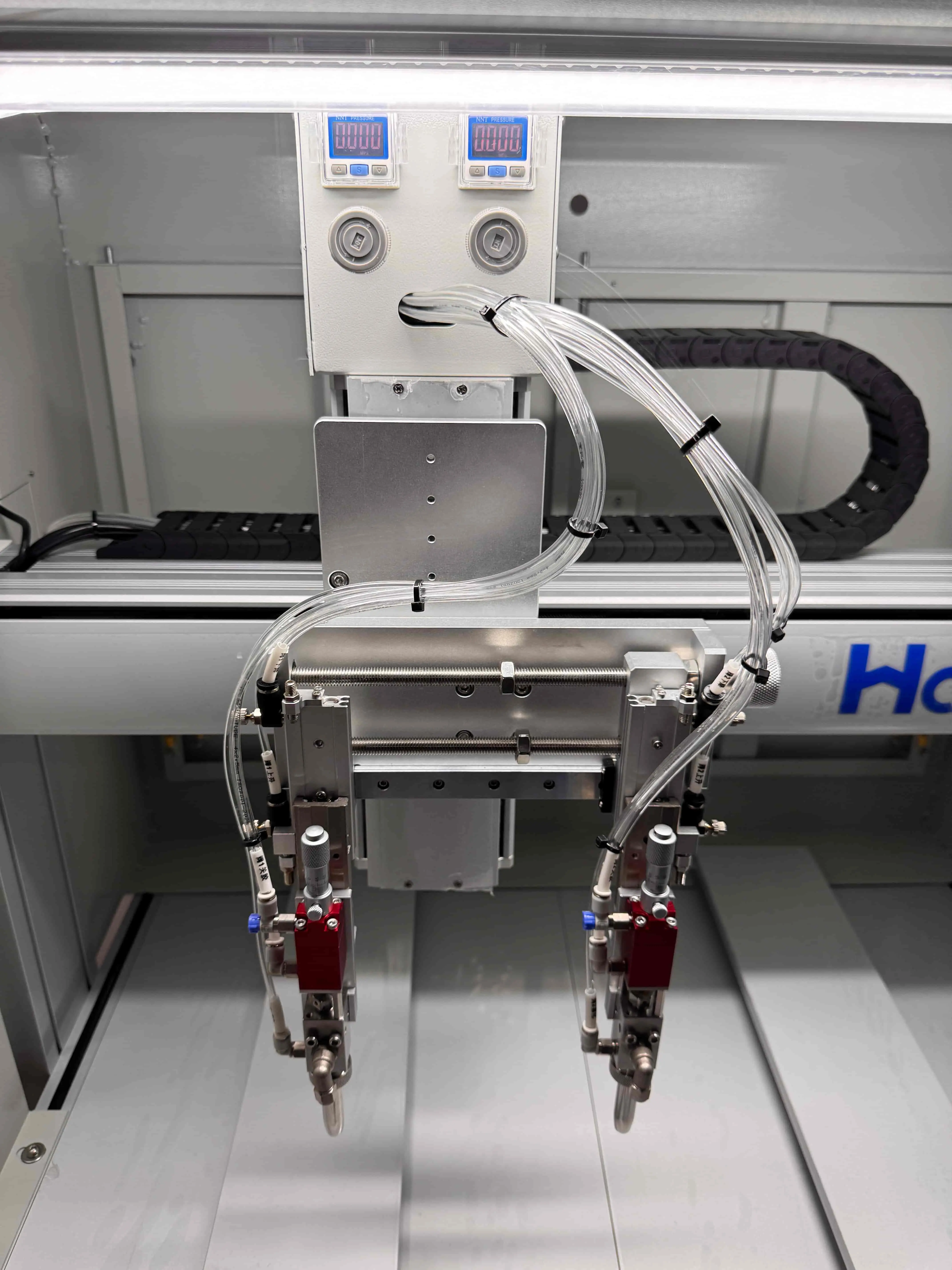

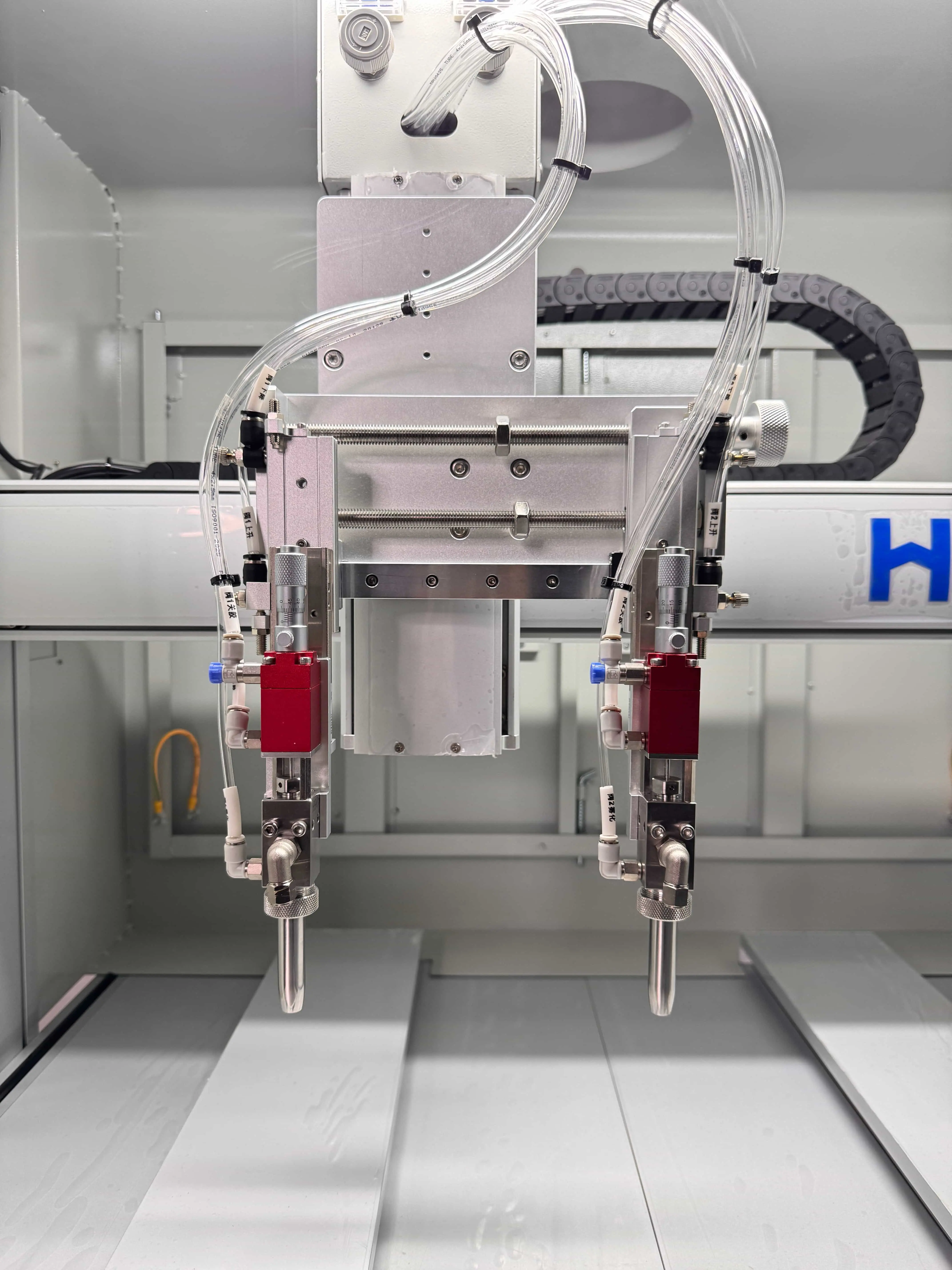

Glue valve type: 2 precision atomizing valves (A-603)

Reservoir capacity: 2 sets of 2L stainless steel pressure tanks

Guide rails: Imported brand; dual-rail drive for the main spindle

Cylinders: Well-known brand drive cylinders for controlling valve body elevation

Repeatability: ±0.02mm

Travel Speed: X, Y1, Y2: Up to 500 mm/s; Z: 300 mm/s

Work Surface: Dual Y-axis work surface

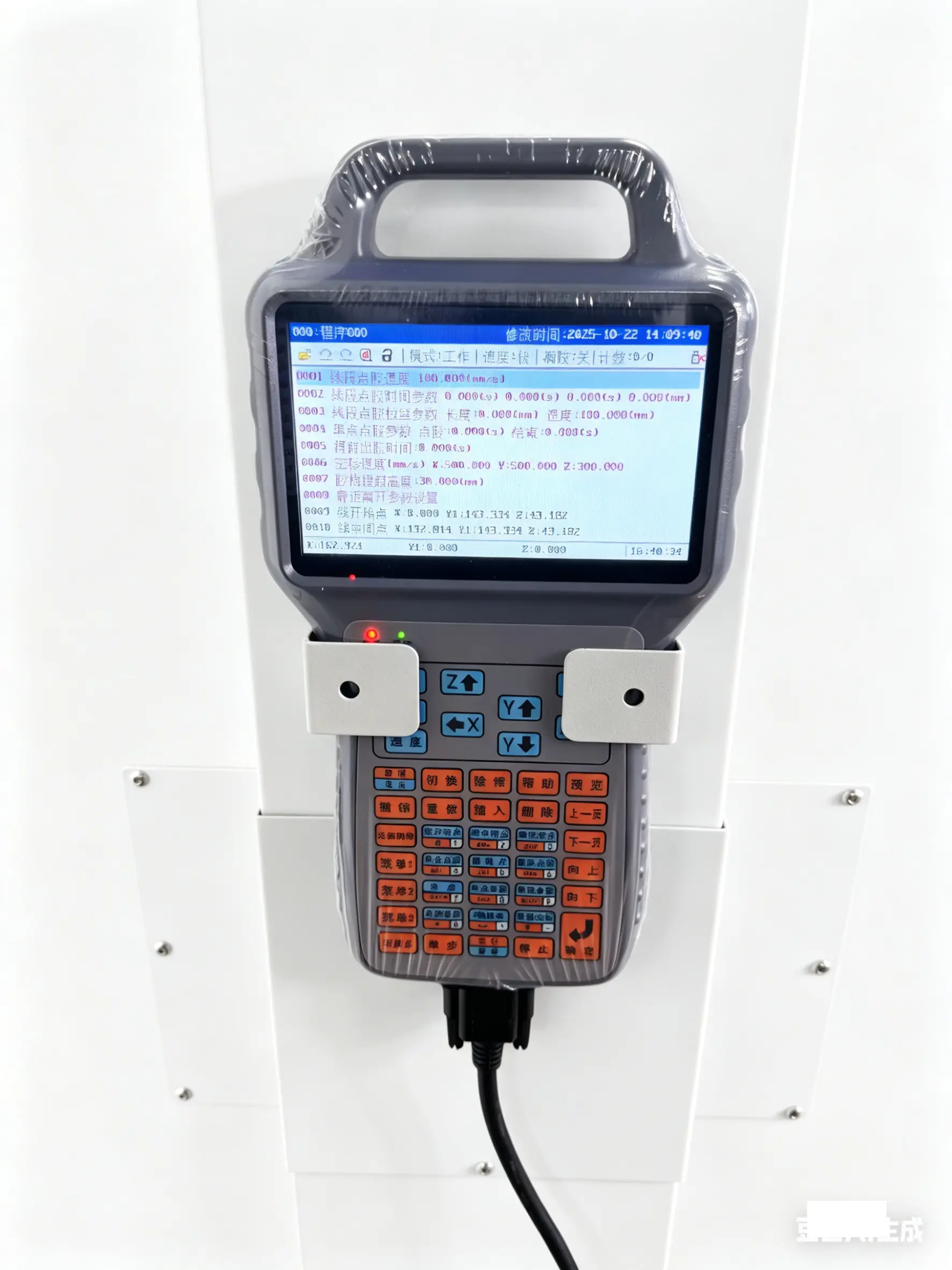

Teach-in Mode: Teach pendant; programs can be exported for reuse

Control System: In-house developed motion control system

Power Supply: AC 220V, 50Hz, 800W

Quotation (including tax) RMB: 37000

Ali quotation (USD): 7,135.71


Send Inquiry

Product Description

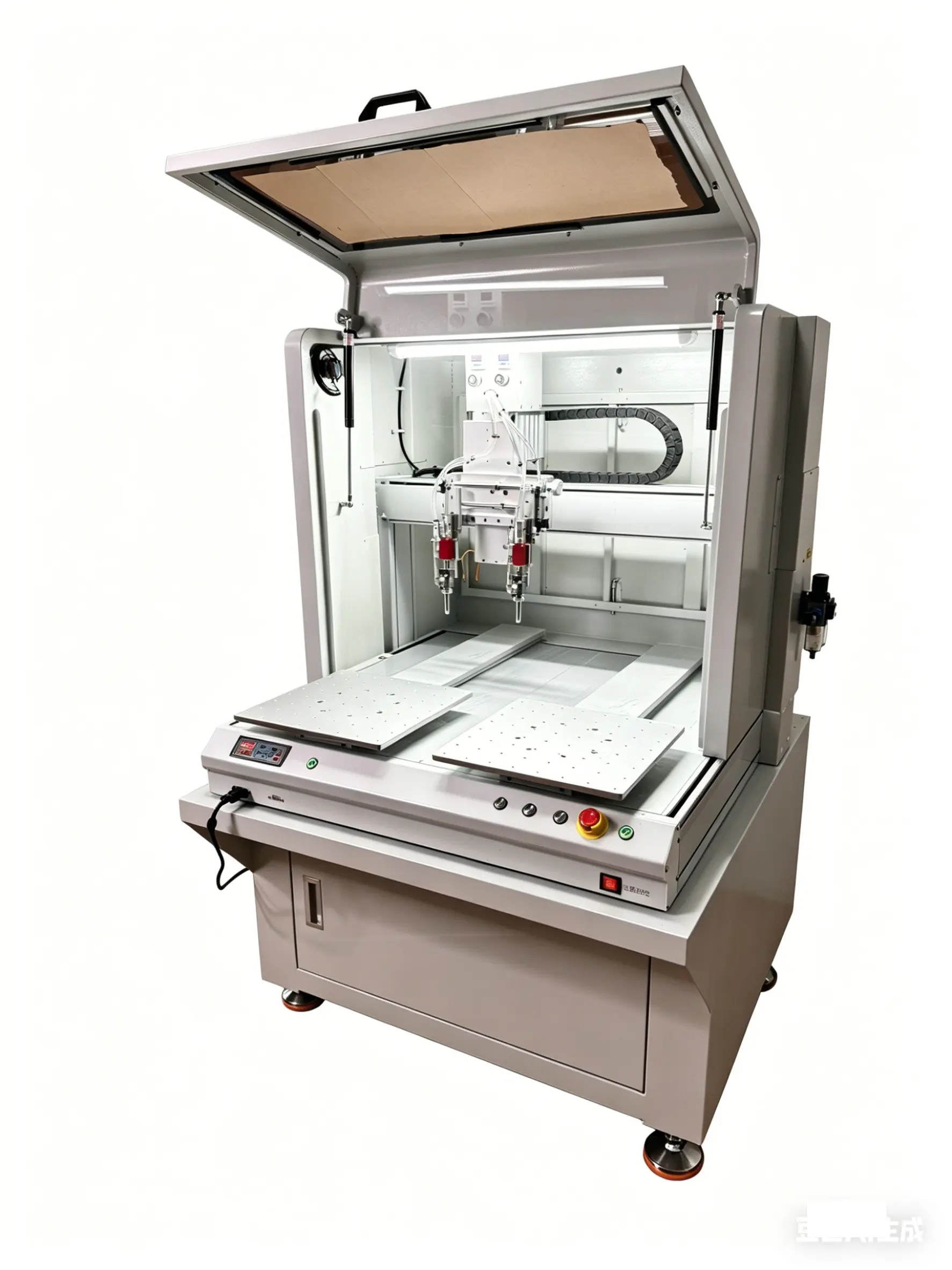

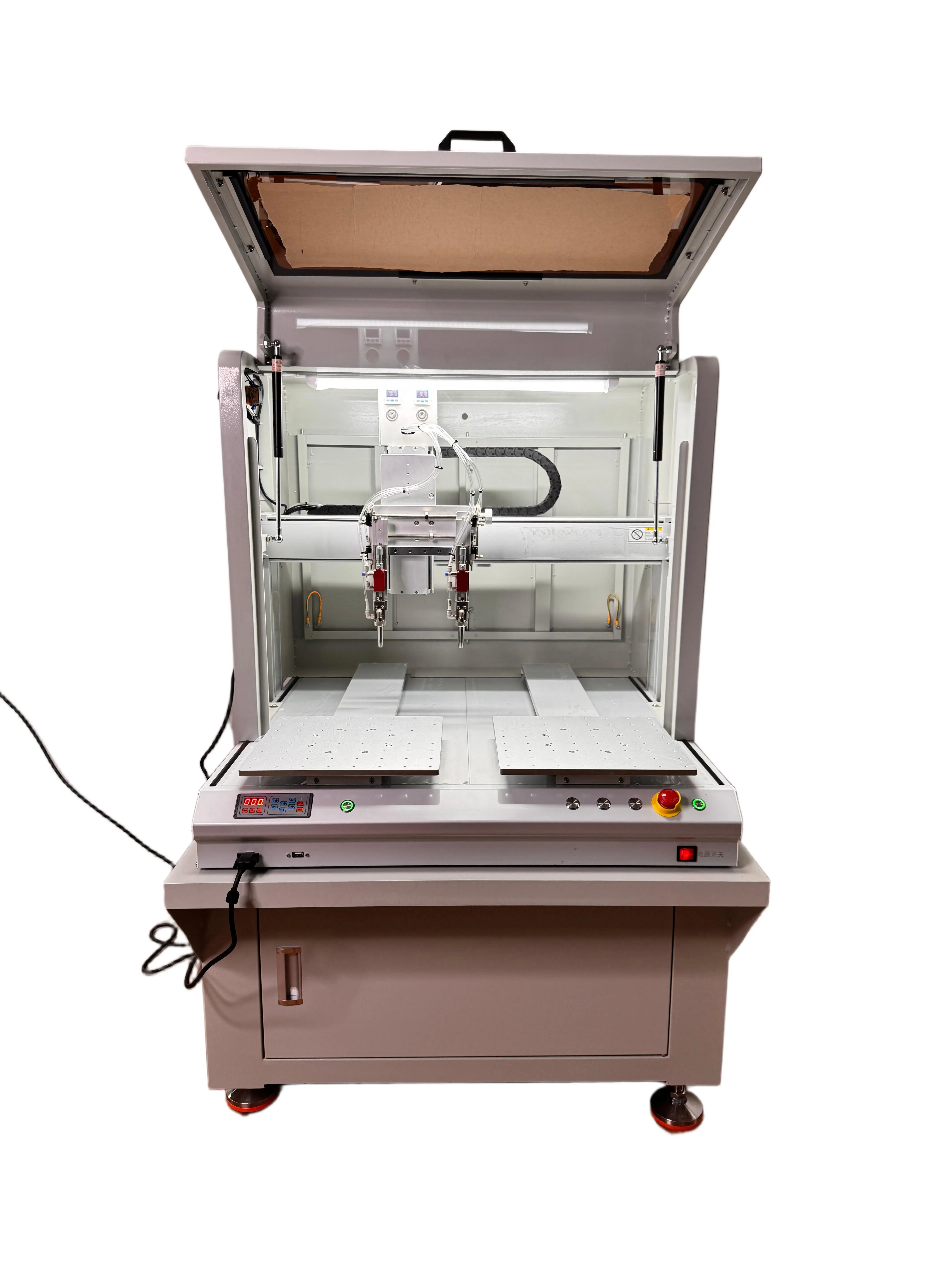

AC-7661 Floor-Standing Conformal Coating Machine
The AC-7661 Floor-Standing Conformal Coating Machine is a high-capacity solution engineered for high-efficiency, large-area coating applications in electronic manufacturing, automotive electronics, and precision component industries. This floor-standing model combines robust construction with precise performance, making it ideal for batch production lines requiring stable and consistent coating quality.
Technical Specifications & Structural Stability
Coating Area & Dimensions
Features a single-side coating area of 425mm × 295mm, providing ample space to handle medium to large-sized workpieces such as PCB assemblies, control panels, and industrial sensors. Estimated dimensions are 925mm × 900mm × 1800mm.
Robust Construction
Weighing 200kg to ensure high structural stability during high-speed operations. The sturdy frame is built from high-grade steel, treated with anti-corrosion coating to resist workshop humidity and chemical exposure, extending service life to over 8 years.
Core Performance & Precision
The core selling points of the 7661 Floor-Standing Coating Machine lie in its efficiency, precision, and adaptability:
High Precision: Equipped with a dual-axis servo drive system, it achieves a repeat positioning accuracy of ±0.02mm, ensuring uniform coating thickness (5-50μm adjustable).
Material Adaptability: Supports acrylic, silicone, and polyurethane conformal coatings with an adjustable coating speed of 50-300mm/s.
Intuitive Control: Touchscreen control panel allows easy parameter setting and program storage (up to 100 sets of production recipes) for quick changeovers.
Operator Safety: Features an integrated dust-proof enclosure that protects operators from chemical fumes and maintains a clean environment, complying with CE and RoHS standards.
Automation & Customization Options
Line Integration
Compared to desktop alternatives, this floor-standing design offers superior load-bearing capacity (up to 50kg for the worktable) and supports optional conveyor belt integration to connect seamlessly to automated production lines, increasing overall efficiency by 30% compared to manual coating.
Tailored Configurations
Full customization is available for the 7661 model, including adjusting the coating area or adding specialized features like UV curing modules or vision alignment systems to meet specific production needs. Support services include 12 months of maintenance and online technical troubleshooting.
Reliable Performance for Global Standards
Whether for large-scale electronics manufacturing requiring high-volume PCB coating or precision component supply needing consistent quality, the 7661 Floor-Standing Conformal Coating Machine delivers the performance, durability, and flexibility to enhance production lines. It is a cost-effective investment that drives long-term operational efficiency.
Frequently Asked Questions
What is the coating area and worktable load capacity of the 7661 model?
The 7661 features a single-side coating area of 425mm × 295mm and offers a robust worktable load-bearing capacity of up to 50kg, making it suitable for medium to large-sized workpieces.
What is the positioning accuracy and coating thickness range?
The machine is equipped with a dual-axis servo drive system that achieves a repeat positioning accuracy of ±0.02mm, and supports an adjustable coating thickness range of 5-50μm.
Which coating materials and speeds does the machine support?
It supports a wide range of conformal coating materials including acrylic, silicone, and polyurethane, with adjustable coating speeds ranging from 50 to 300mm/s to match different material viscosities.
Does the machine support integration into automated lines?
Yes. The floor-standing design supports optional conveyor belt integration, allowing it to connect seamlessly to automated production lines. This setup can increase overall production efficiency by 30% compared to manual processes.
What customization options are available?
Customization options include adjusting the coating area and integrating specialized features such as UV curing modules or vision alignment systems to align with specific production environments.
What safety compliance features does it have?
The machine features an integrated dust-proof enclosure that maintains a clean environment and protects operators from chemical fumes, complying with international safety standards such as CE and RoHS.
