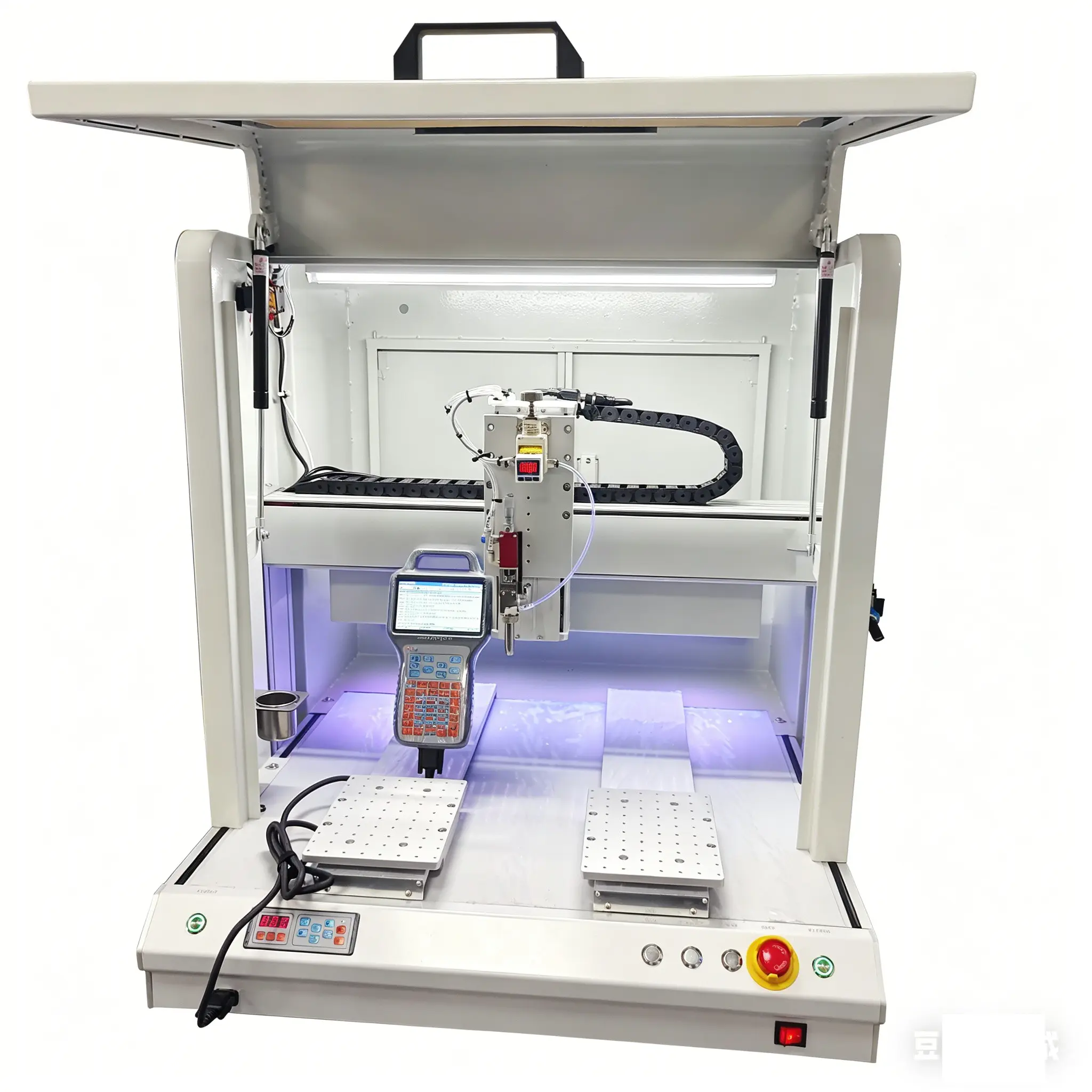

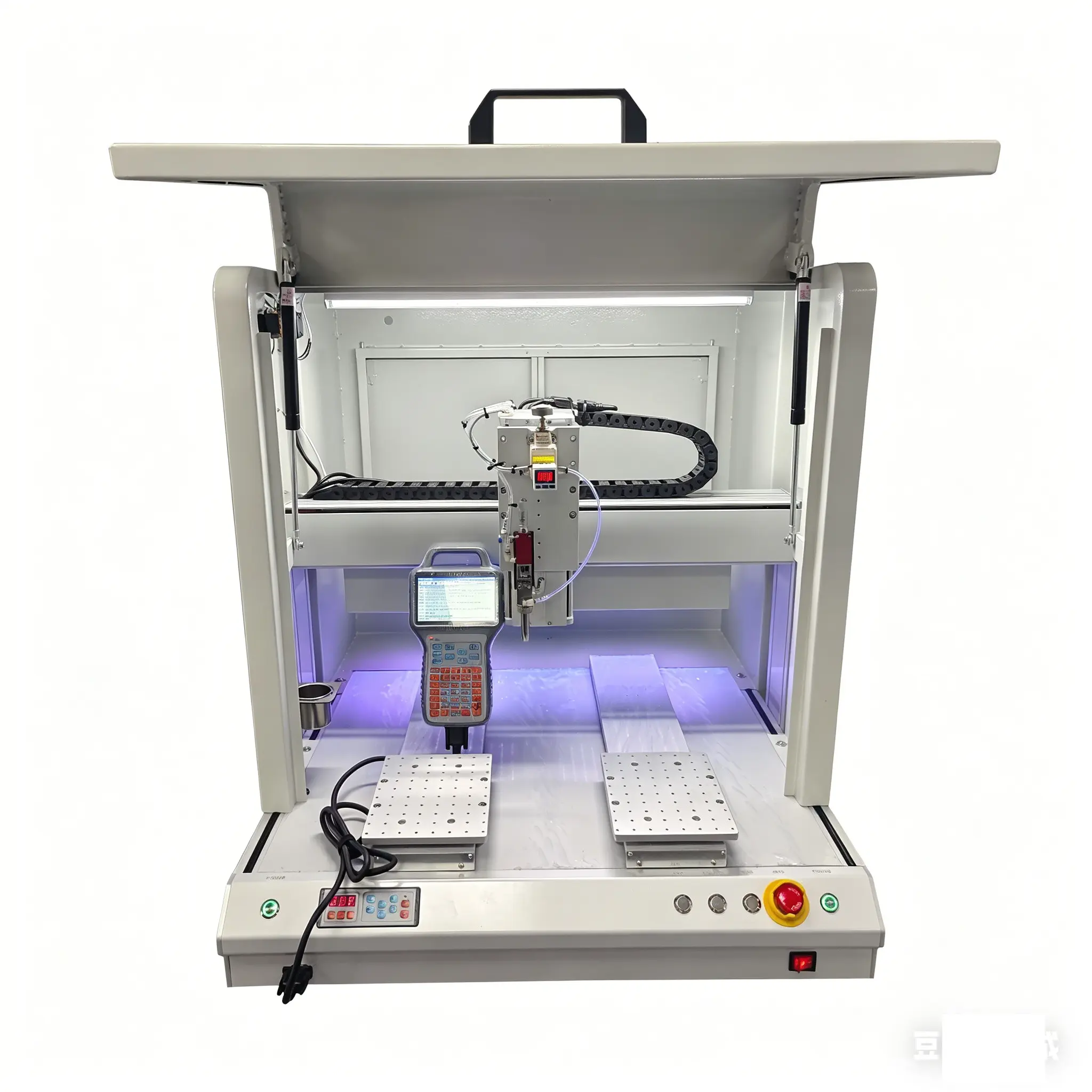

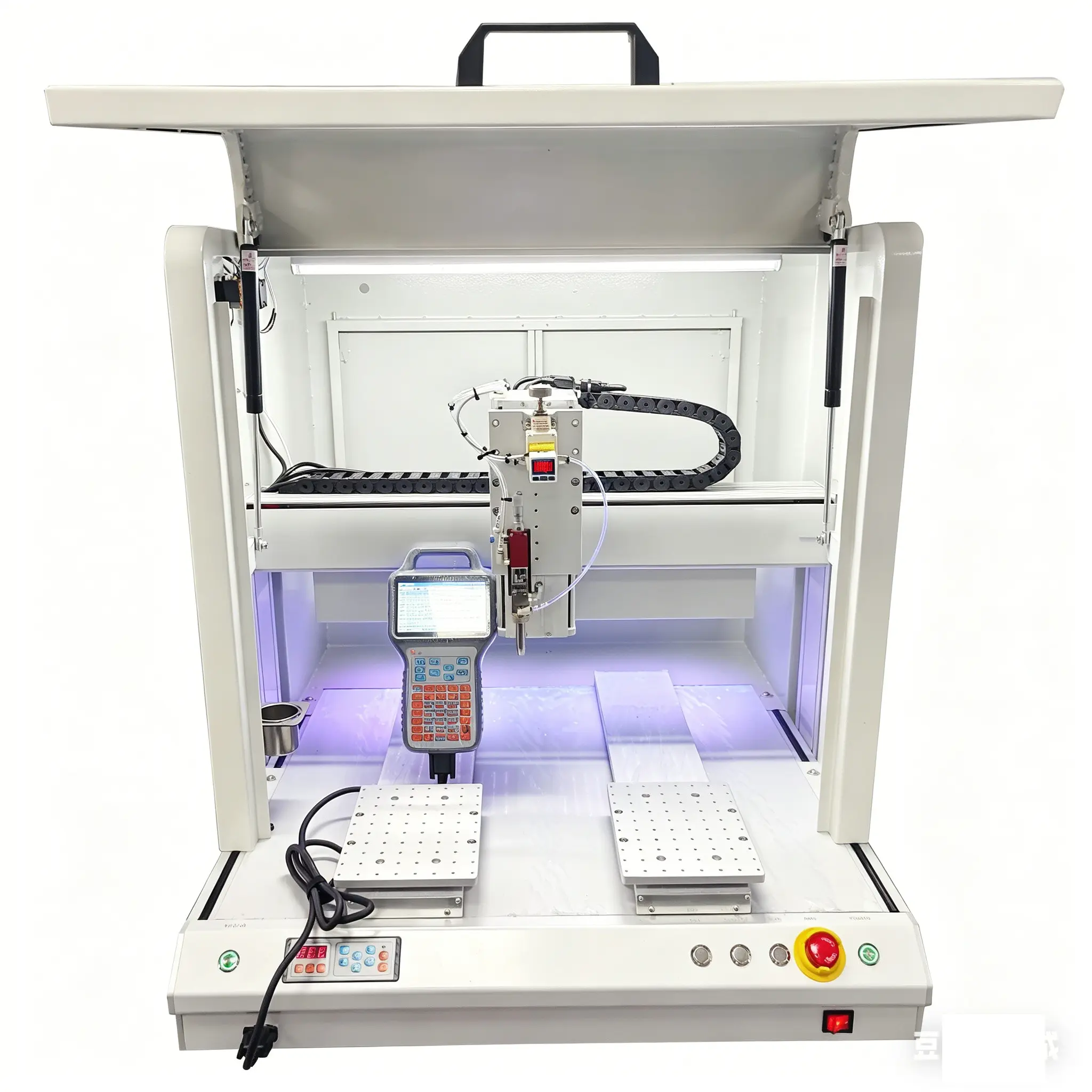

Boasts a maximum single-side coating area of 325mm × 245mm, perfect for standard PCB boards, sensors, and small electronic assemblies. Weighing 100kg with dimensions of L825mm × W750mm × H1200mm, it fits easily into tight production spaces without heavy lifting equipment.
Adopts a precision stepper motor drive system and imported linear guide rails, achieving ±0.03mm repeat positioning accuracy. Supports both spray and dispense modes, handling material viscosities from 50 to 10,000 cP.

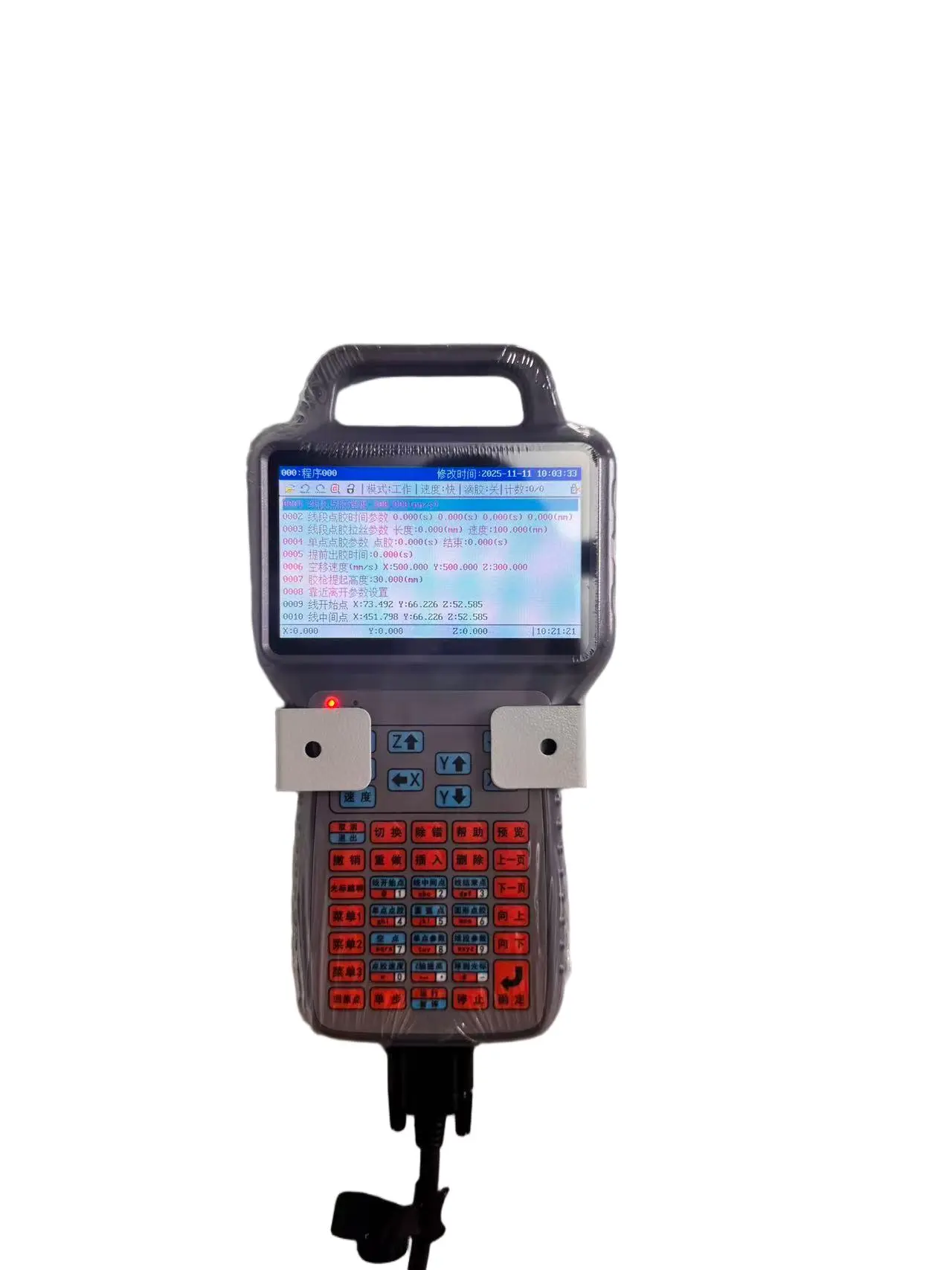

Features a 7-inch color touchscreen interface showing real-time speed, area, and flow rate with one-click recipe recall. Reduces operator training time to less than 2 hours. Includes a built-in fluid level sensor for continuous operation.
Offers lower initial investment and operating costs than floor-standing models. Its modular design allows easy upgrades, such as integrating UV curing modules or vision alignment systems as production demands scale.
The machine features a maximum single-side coating area of 325mm × 245mm, which is perfectly suited for processing standard PCB boards, sensors, and small electronic assemblies.
By combining a precision stepper motor drive system with imported linear guide rails, the AL-T6441-1 achieves a high repeat positioning accuracy of ±0.03mm.
The coating head supports both spray and dispense modes, making it compatible with material viscosities ranging from 50 to 10,000 cP. This covers most common thin-film conformal coatings and thicker sealing adhesives.
Yes, it features a 7-inch color touchscreen interface that displays real-time parameters and supports one-click recipe recalls, reducing the operator training time to less than 2 hours.
Absolutely. The machine can be customized to adjust specifications such as modifying the coating area for oversized parts, adapting the power supply to 110V for North American systems, or integrating custom fixtures.
It is built with an emergency stop button, overheat protection, and a material level sensor that alerts the user when fluid is low to avoid dry-runs and maintain consistency.
