Custom 30cc-500cc American/ Japanese new style (external thread/double screw thread ) syringe barrel Supplier, Factory

Product Specifications & Performance:

Capacity Range: 30mL to 500mL (standard sizes: 30mL/50mL/60mL/100mL/200mL/500mL)

Material Options:

PP (Polypropylene): Chemical-resistant for solvents (0-80°C)

Glass: High clarity for UV adhesives (borosilicate, 0-200°C)

Stainless Steel: High-pressure applications (up to 10bar)

Accuracy: ±1% volume consistency (graduation marks every 5% capacity)

Connector Types: Luer Lock (ISO 594-1), DIN 13 threaded, or barbed fittings

Product Description

Applications

Key Functional Features
  • Precision Dispensing: PP/glass syringes enable accurate 0.01mL dosing for electronics assembly
  • High-Temperature Resistance: Glass/SS syringes withstand autoclaving (medical device manufacturing)
  • Pressure Durability: Steel syringes maintain structural integrity at 10X higher pressures than plastics
Model-Specific Applications
  • 3mL (PP): Micro-dot dispensing for smartphone component bonding
  • 10mL (Glass): UV-curable adhesives in optical lens assembly
  • 30mL (SS): High-viscosity epoxies in automotive structural bonding
  • 60mL+ (PP): Bulk sealant application in construction/panel bonding
Technical Advantages
  • Interchangeable with Nordson/EFD dispensing systems
  • Color-coded caps for material identification (blue=PP, amber=glass)
  • Optional PTFE plungers for low-friction operation
  • Precision Metering: Enables accurate 30mL-500mL adhesive dispensing with graduated markings
  • Material Preservation: UV-blocking (amber glass) and chemical-resistant (PP/PEEK) options prevent curing/degradation
  • Pressure Resistance: Reinforced designs withstand 10-15bar for high-viscosity materials (silicones/epoxies)
  • 30-100mL syringes for PCB underfill & SMT component bonding
  • Static-dissipative models for sensitive IC components
Industry-Specific Customization
  • Medical Device Assembly: Sterilizable glass/SS syringes for implantable device fabrication; Luer-lock connectors for needle integration
  • Automotive Production: 30-60mL cartridges for structural adhesive application; High-flow designs for windshield sealants
Competitive Advantages
  • Universal Compatibility: Works with Nordson/EFD/Fisnar dispensers
  • Smart Features: Dual-scale mL/gram markings for weight-based dosing
  • RFID tags for automated material tracking (Industry 4.0 ready)
  • Eco-Efficient: Reusable stainless steel models reduce waste by 80% vs disposable
  • 100% leak-proof designs minimize material loss
Specialized Variants
  • High-Temp: PEEK syringes for 200°C thermal cure adhesives
  • Flexible: Collapsible PE bags for solvent-based coatings
  • Micro-Dosing: 0.5mL ultra-fine tips for medical micro-arraying

Product Parameters

Description Image Reference Capacity Volume Model Code Dimensions (mm)

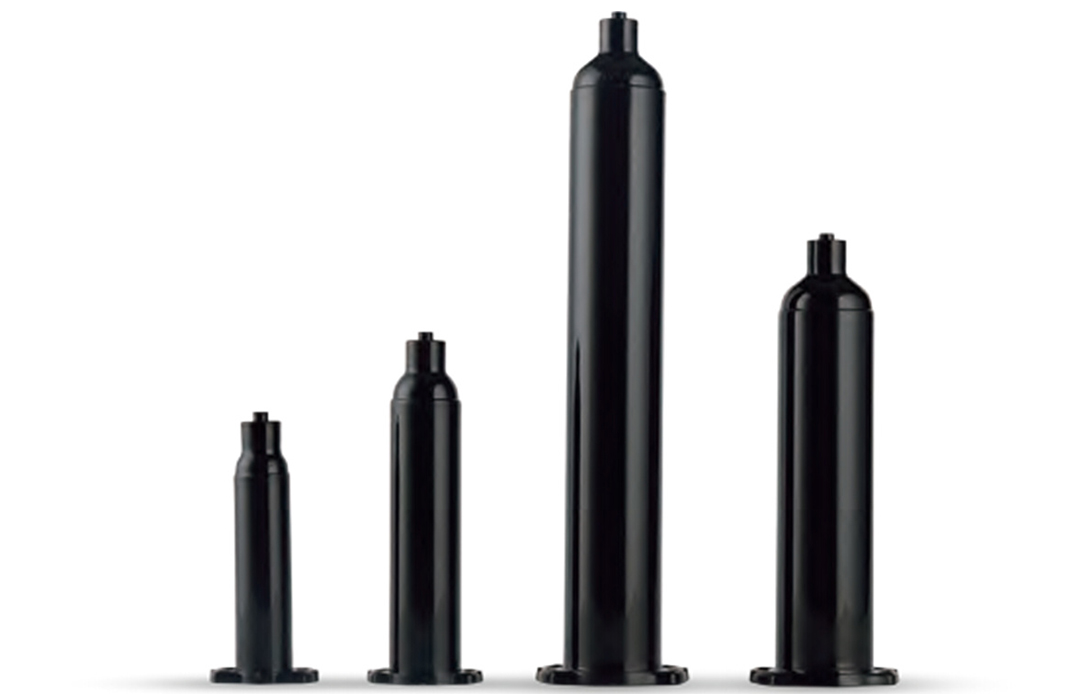

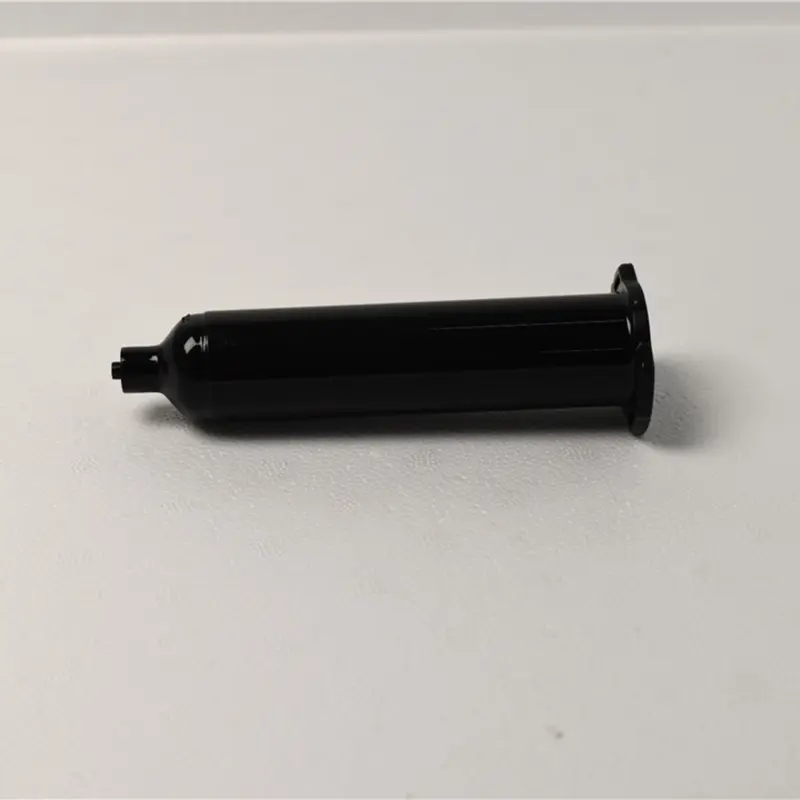

American Style Black Syringe (Black) American Style Black Syringe 30cc 60cc PS-EB60-H 182.9*26.2*22.7
60cc 30cc PS-EB30-H 118.10*25.8*22.45

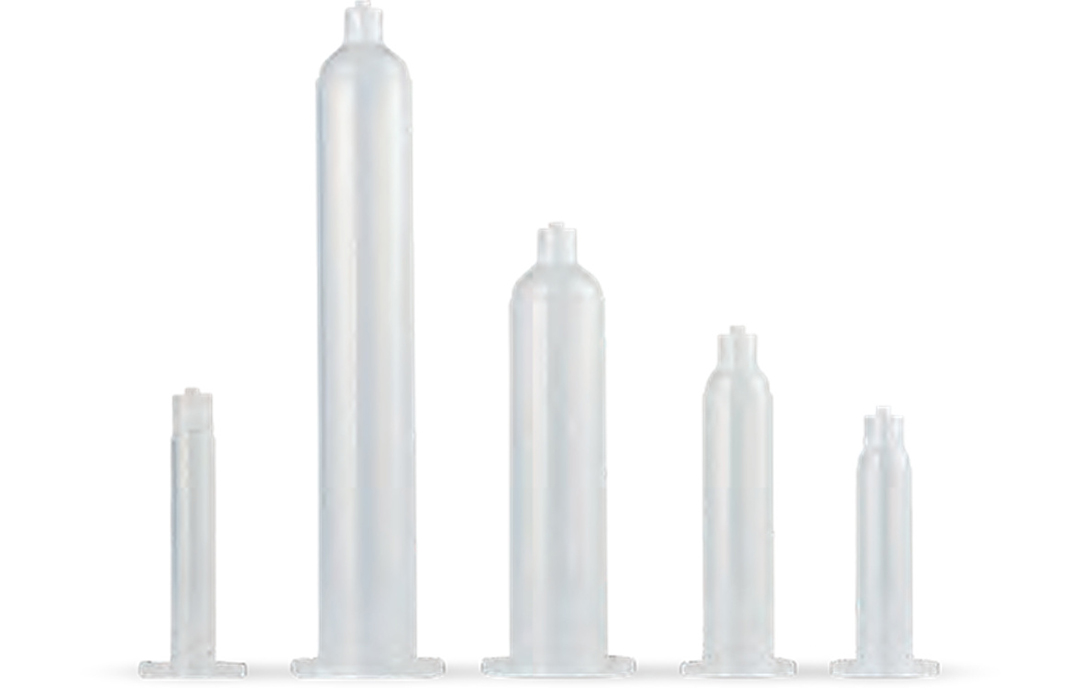

New American Style Transparent Syringe (Transparent) New American Style Transparent Syringe 30cc 60cc PS-EB60-T 182.9*26.2*22.7
60cc 30cc PS-EB30-T 118.10*25.8*22.45

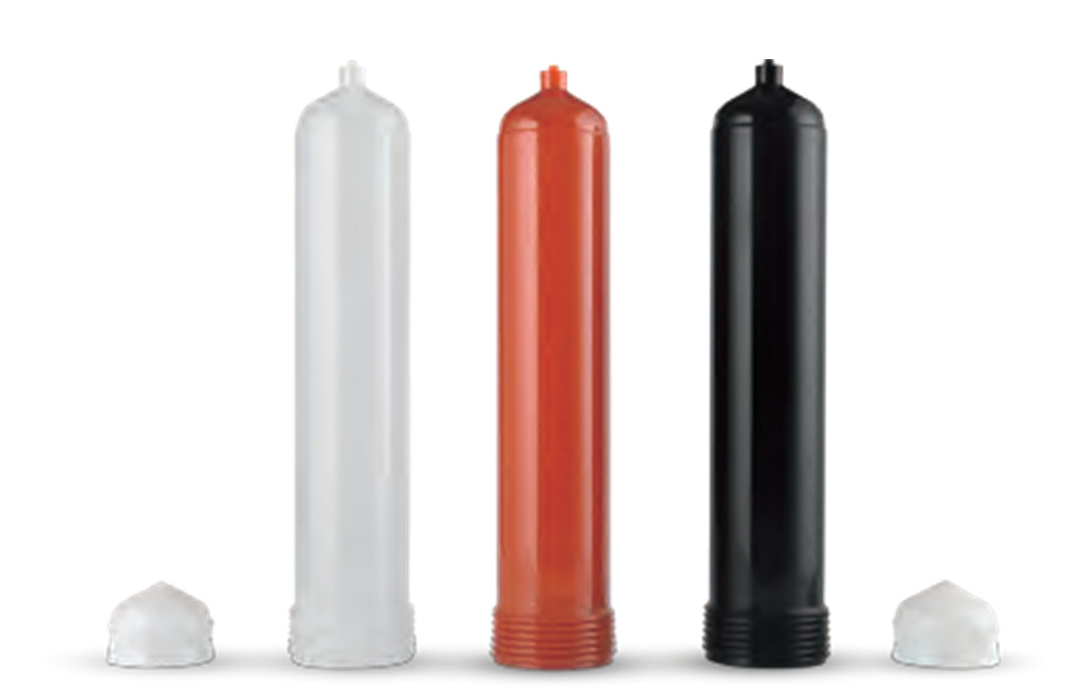

100ml New Style External Threaded Syringe (Clear) 100ml New Style External Threaded Syringe 100cc 100ml PS-W100-T 191.85*36.75*32.3
New Male Syringe (Clear) New Male Syringe 200cc 200ml PS-W200-T 230.2*44.5*40.0

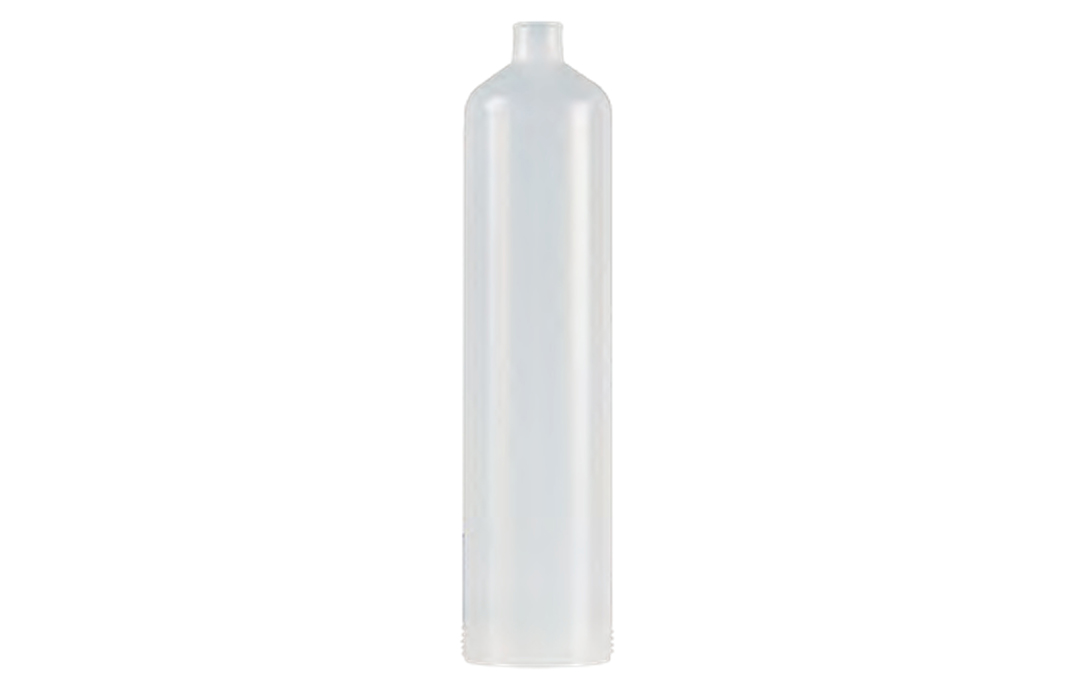

500cc American style new male syringe (transparent large mouth) 500cc American style new male syringe 500cc 500ml PS-EBWD500-T 268*54.9*50

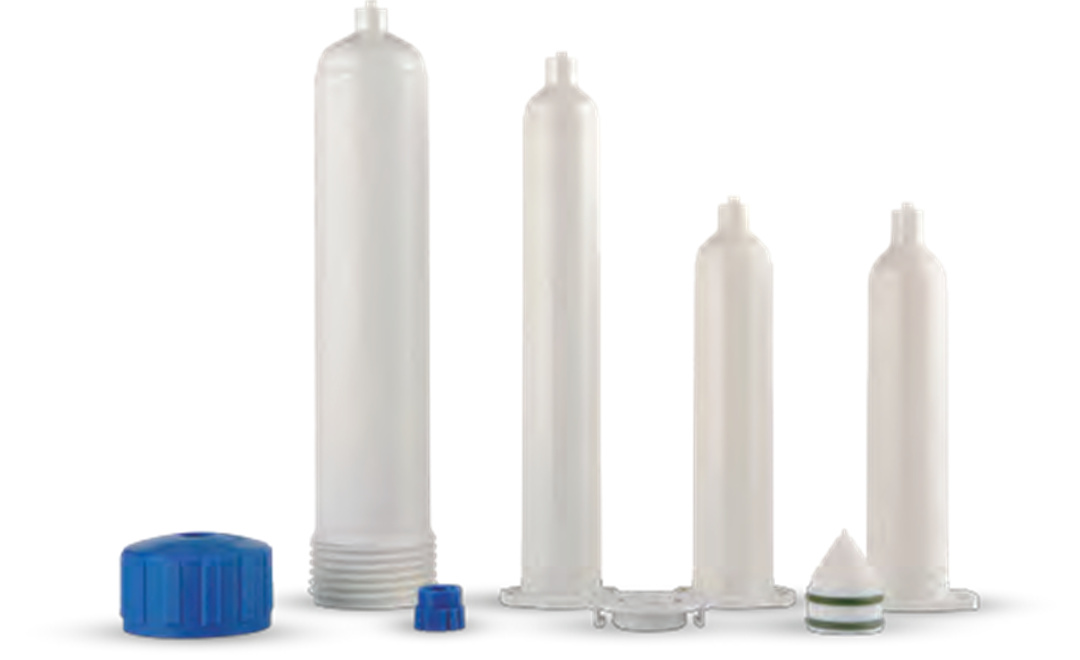

Japanese style High temperature resistant 170 degree syringe Japanese style High temperature resistant 170 degree syringe 30cc 30ml PS-MN30-170 129.8*26.30*23.00

Product Details

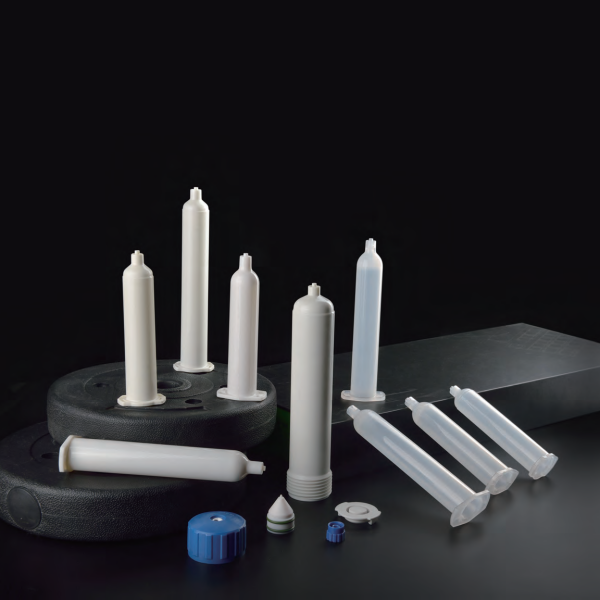

Product detail image 1

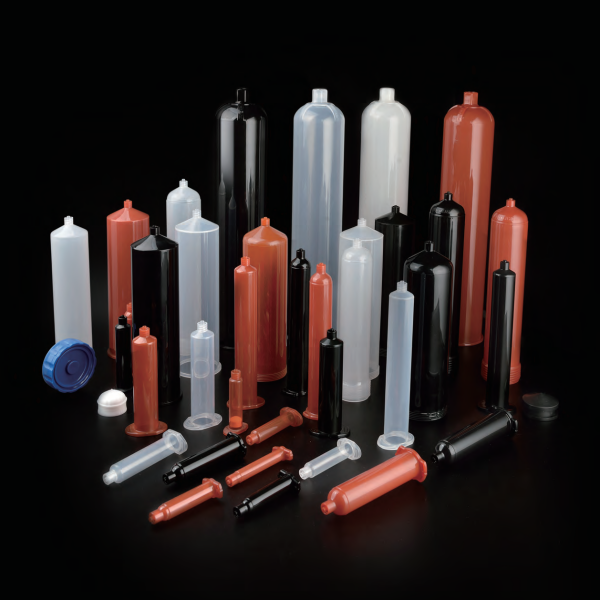

Product detail image 2

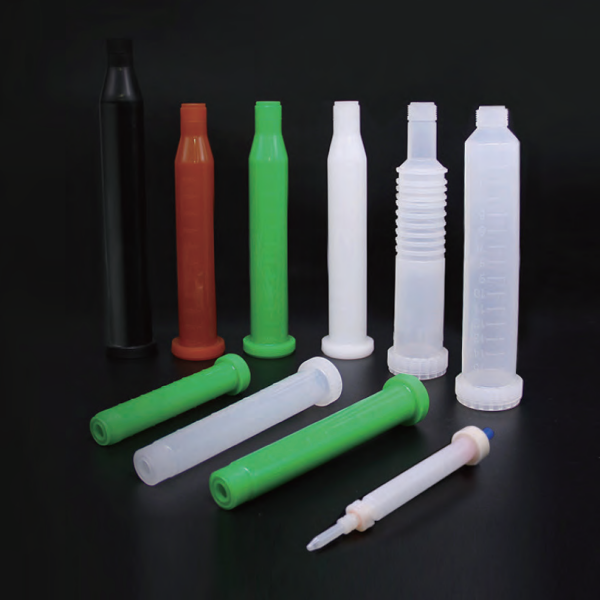

Product detail image 3

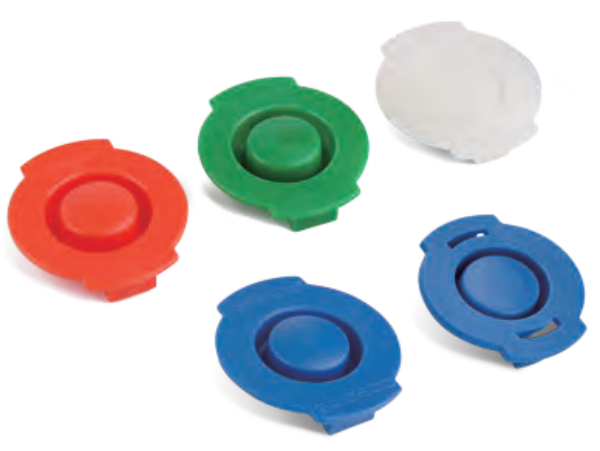

Product detail image 4

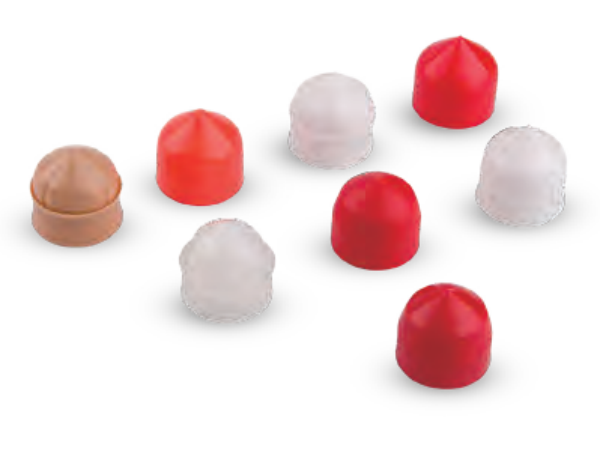

Product detail image 5

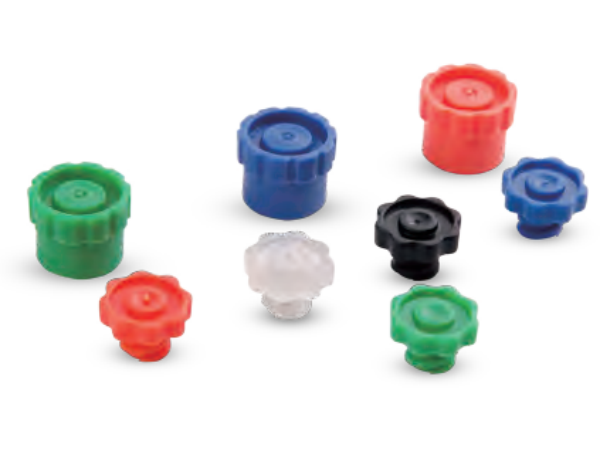

Product detail image 6

Frequently Asked Questions

Q1: Are these syringes compatible with standard industry dispensing systems?

Yes, our syringes feature universal compatibility and are fully interchangeable with major dispensing systems including Nordson, EFD, and Fisnar.

Q2: Which syringe models are best for high-temperature applications?

For high-temperature applications, we offer Glass/Stainless Steel syringes suitable for autoclaving, and specialized PEEK syringes engineered to withstand thermal cure adhesives up to 200°C.

Q3: How do the syringes prevent light-sensitive materials from curing prematurely?

We provide specialized material preservation options, including UV-blocking amber glass and black syringes, specifically designed to protect light-sensitive and UV-curable adhesives from curing during storage or dispensing.

Q4: What pressure limits can these dispensing syringes handle?

Our reinforced designs are built to withstand high pressure levels, ranging from 10 to 15bar for high-viscosity materials like silicones and epoxies. Stainless steel syringes can withstand up to 10 times higher pressure than standard plastic alternatives.

Q5: Are reusable options available to reduce industrial waste?

Yes, our eco-efficient reusable stainless steel models are highly durable and can reduce material waste by up to 80% compared to standard disposable plastic syringes.

Q6: What options are available for dispensing static-sensitive components?

We offer specialized static-dissipative syringe models designed to safely handle dispensing processes near highly sensitive integrated circuits (ICs) and SMT components without risks of ESD damage.
