Custom Industrial dispensing needles connector Suppliers, Factories

Universal Compatibility

Seamlessly connects Luer Lock, DIN, and ISO thread needles (18G-34G) to Nordson, EFD, and Fisnar dispensers

Interchangeable design reduces inventory costs by 50% vs brand-specific adapters

Send Inquiry

Product Description

Applications & Technical Highlights

Leak-Proof Performance

Double O-ring seals withstand up to 10bar pressure (145psi).
PTFE-lined interior prevents adhesive buildup for 500+ reuse cycles.

Precision Flow Control

0.01mm concentricity tolerance eliminates flow turbulence.
Tapered internal channel maintains ±2% dispensing volume consistency.

Durable Construction

316L stainless steel/ceramic composite configuration.
High resistance to chemical corrosion (acids/solvents).
Excellent protection against abrasion from filled adhesives.

Smart Features

Color-coded bands for rapid size identification.
RFID tag options to store operational pressure and viscosity data.

Technical Specifications

Temperature Range: -30°C to 200°C.
Surface Finish: <0.8μm Ra ensures smooth material transition.
Certifications: Fully ISO 9001, RoHS, and REACH compliant.

Ideal Industry Use

Electronics: PCB underfill dispensing.
Medical: Safe bio-adhesive transfer.
Automotive: Glass primer applications.

Why Choose Our Adapters?

30% longer service lifespan compared to standard industry averages.
Significantly reduced clogging risk due to optimized internal flow geometry.
24-hour sample shipping turnaround for validation and qualification testing.

Product Parameters

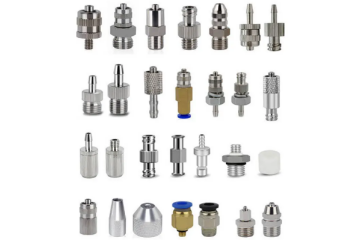

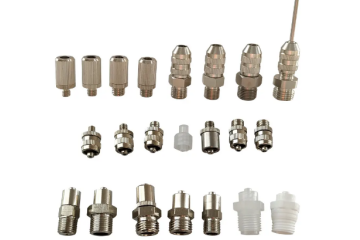

Category / Description	Model & Detailed Specifications
M series adaptors/connector	model XZR-JT-001 \| name M40.7 \| inner diameter 2.2 model XZR-JT-003 \| name M61.0 \| inner diameter 2.5
Male adapter to any needle 1/4 to standard cartridge, 1/8 to standard cartridge	model XZR-JT-006 \| name G1/8 tooth split connector model XZR-JT-007 \| name G1/4 tooth split connector

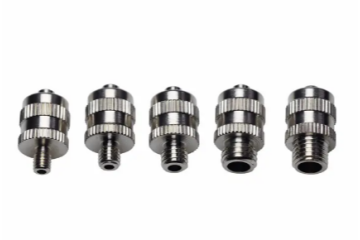

Fitting Series, Luer End Fitting	model XZR-JT-010 \| name M5 Split Fittings \| L (Thread length) 6 \| D (Outer diameter) 11 model XZR-JT-011 \| M6 Split Fittings \| L (Thread length) 6 \| D (Outer diameter) 11 model XZR-JT-012 \| M8*1 Split Fittings \| L (Thread length) 6 \| D (Outer diameter) 11
Dispensing Valve Adapters 1/8 tooth ferrule type male threaded connecting pins	model XZR-JT-020 \| Thread Specification PT1/8-28 (outer diameter of tooth 12.9) \| Thread length 8.5 \| Material width 12 model XZR-JT-021 \| Thread Specification PT1/4-19 (outer diameter of tooth 9.4) \| Thread length 10.5 \| Material width 14
Air Tube Extensions Luer head adapter air tube / Needle end fitting	Luer End: model 42.5 XZR-JT-024 \| length 10 \| outer diameter 3.8 model 64 XZR-JT-025 \| length 10 \| outer diameter 4.8 Needle End: model 42.5 XZR-JT-029 \| length 10 \| outer diameter 3.8 model 64 XZR-JT-030 \| length 10 \| outer diameter 4.8
B-connector / adaptors	model M5 XZR-JT-052 \| Thread Specification M50.8 model M6 XZR-JT-053 \| Thread Specification M61.0 model M8 XZR-JT-054 \| Thread Specification M8*1.0
Syringe Connector	model XZR-JT-057 \| name Double Luer Connector model XZR-JT-058 \| name Bayonet Connector
Metal Plugs	model XZR-JT-074
Industrial dispensing mixing tube connector	model XZR-JT-064 \| Thread Specification M40.75 \| name 5.4-6.3 2-slot female thread M4 model XZR-JT-062 \| Thread Specification M50.8 \| name 6MM-8MM Non-slotted female thread M5 model XZR-JT-063 \| Thread Specification M6*0.8 \| name 10MM 1-slot female thread M6
Silicone connector	model XZR-JT-066 \| M16 A-Short Silicone Fittings \| outer diameter 25 \| height 24 \| Thread Specification M162.5 model XZR-JT-067 \| M16 B-Short Silicone Fittings \| outer diameter 25 \| height 24 \| Thread Specification M162.5 model XZR-JT-070 \| M22 A-Short Silicone Fittings \| outer diameter 25 \| height 24 \| Thread Specification M222.0 model XZR-JT-071 \| M22 B-Short Silicone Fittings \| outer diameter 25 \| height 24 \| Thread Specification M222.0

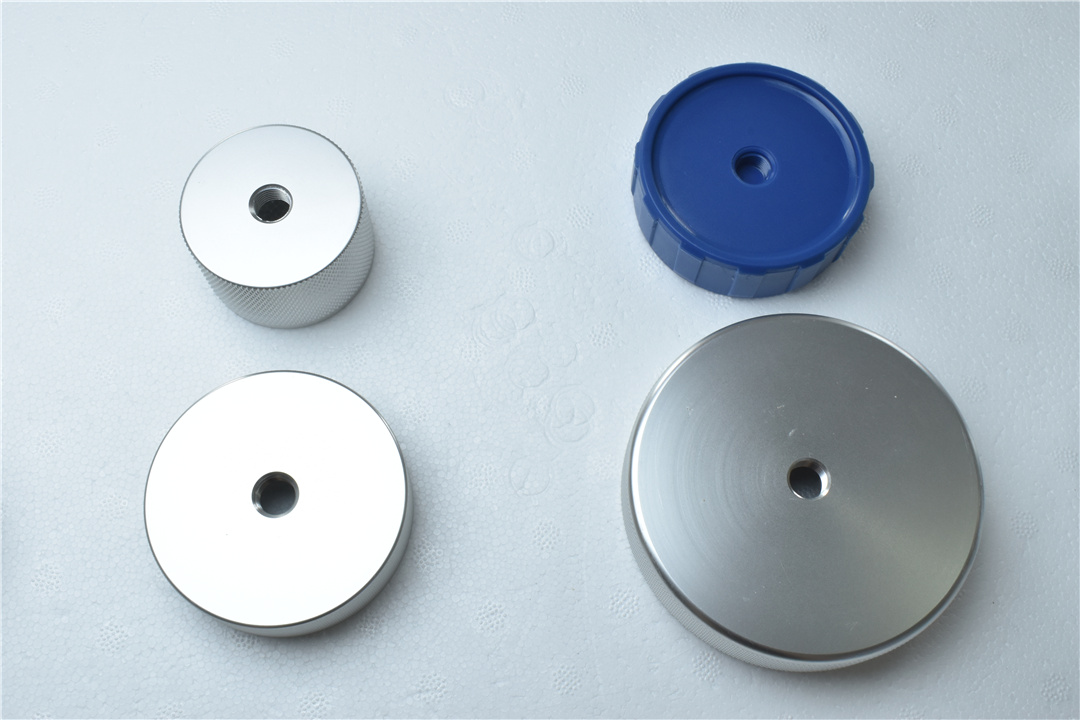

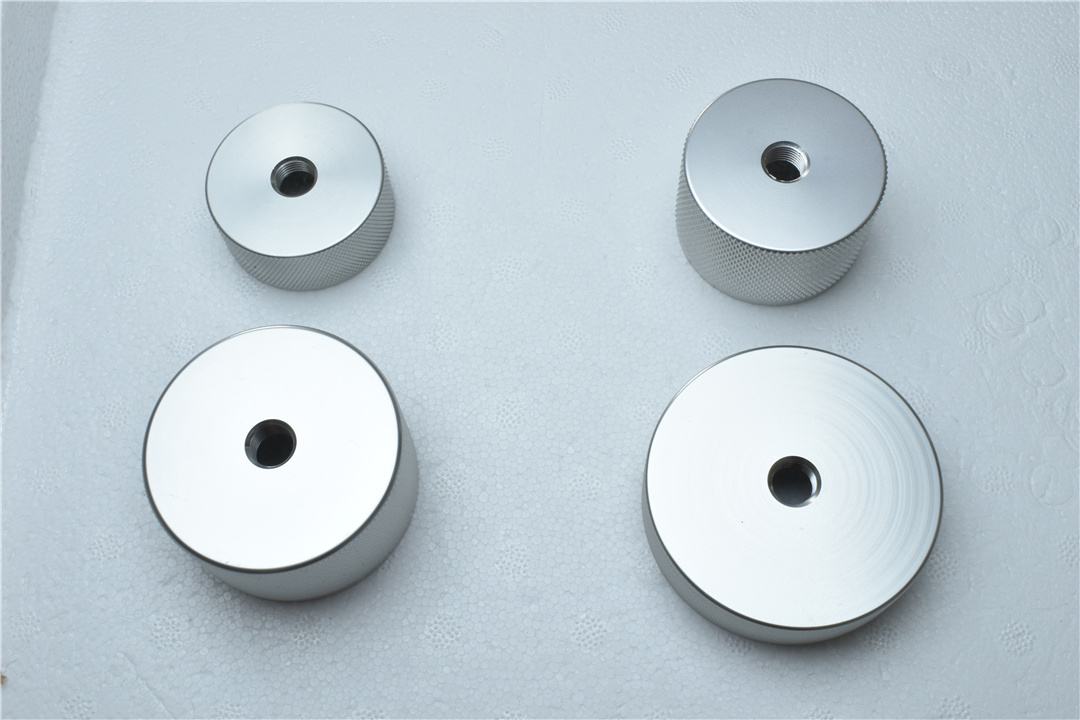

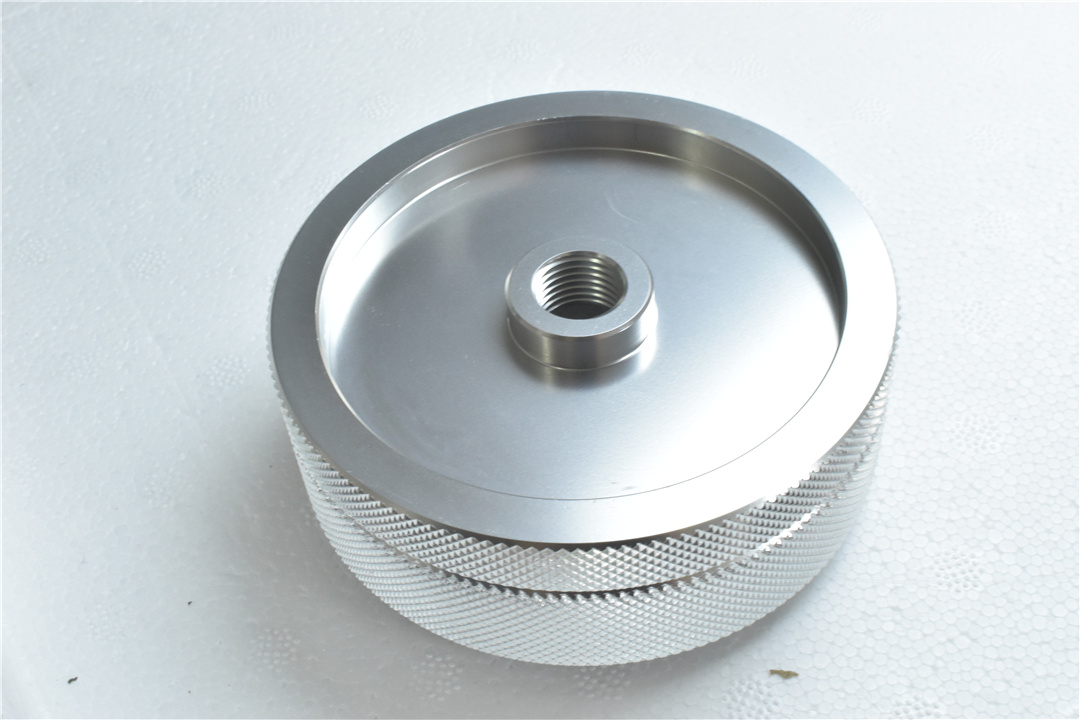

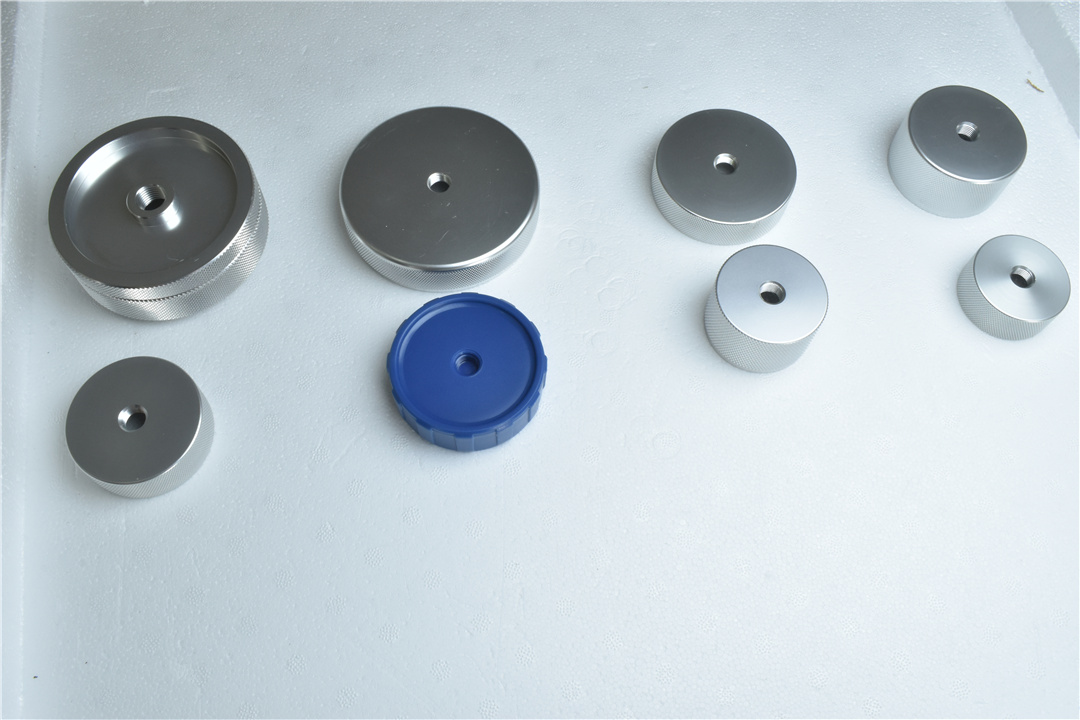

Aluminum back cover double layer connector	old American style \| volume 100CC 200CC \| material Aluminum \| package 1/box back cover double \| volume 960CC \| material Aluminum \| package 1/box
old American style connector	volume 100CC 200CC 300CC 500CC \| material Aluminum \| package 1/box
Plastic back cover connector	volume 300CC \| material Plastic \| package 1/box

Product Gallery

Frequently Asked Questions

Q1: What pressure rating can these dispensing adapters handle?

A1: These adapters feature high-performance double O-ring seals designed to safely withstand working pressures up to 10bar (145psi) without leakage.

Q2: How does the PTFE lining benefit the dispensing process?

A2: The interior of the adapters is lined with PTFE to minimize adhesive buildup and prevent clogging. This specialized lining facilitates easy cleaning, supporting over 500 reuse cycles.

Q3: What are the main materials used in construction?

A3: The adapters are constructed from a 316L stainless steel and ceramic composite. This selection delivers superior resistance against both aggressive chemical solvents and abrasive filled adhesives.

Q4: What is the operating temperature range for these parts?

A4: The components are engineered to perform reliably across a wide temperature spectrum, ranging from -30°C up to 200°C.

Q5: How is flow consistency and volume control ensured?

A5: Precision engineering provides a 0.01mm concentricity tolerance to prevent turbulence, combined with a tapered internal channel that maintains dispensing volume consistency within ±2%.

Q6: Are these connectors compatible with standard industry equipment?

A6: Yes, our series includes comprehensive configurations such as Luer end fittings, PT thread specifications, and M series models to interface seamlessly with standard cartridge systems and needles.
