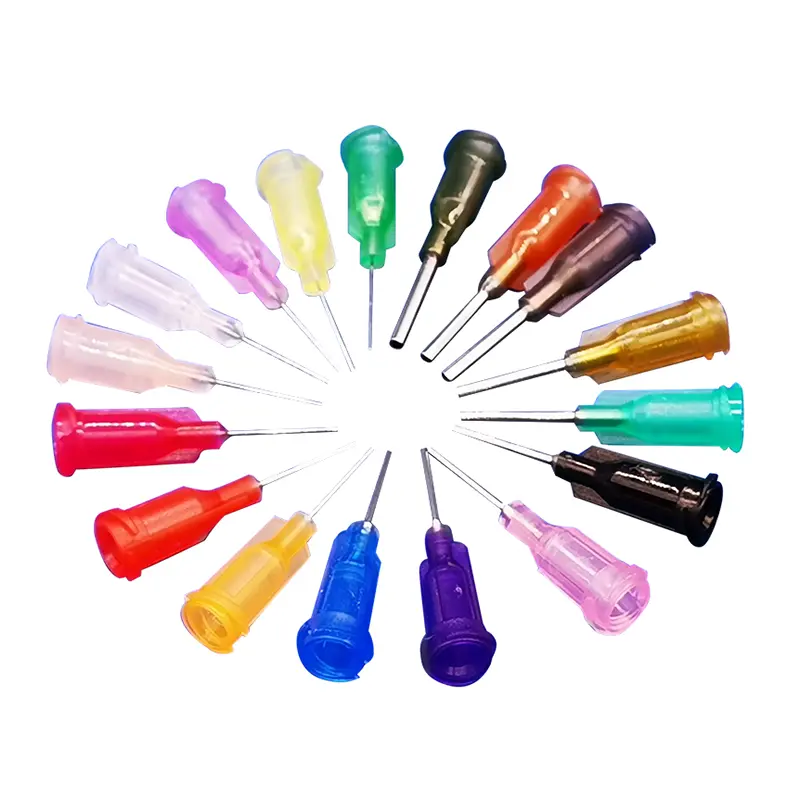

OEM Industrial Dispensing Metal/Plastic/PP/TT (Double Threaded /Single Barrel) Needles Supplier, Service

1 / 3

OEM Industrial Dispensing Metal/Plastic/PP/TT (Double Threaded /Single Barrel) Needles Supplier, Service

Precision Application: Delivers 0.1mm-2.0mm bead widths with ±5% consistency

Material Optimization: Stainless steel/ETFE/Teflon coatings prevent clogging (100+ hour continuous use)

Flow Control: Tapered designs (15°-30°) enable low-pressure dispensing of 50-500,000cP fluids

Send Inquiry

Product Description

Applications & Key Scenarios

Electronics Assembly

25G-34G blunt tips for PCB conformal coating
ESD-safe versions for static-sensitive components

Medical Device Fabrication

Sterilizable 316L stainless steel needles for implant bonding
Luer-lock connectors for disposable systems

Automotive Manufacturing

14G-18G reinforced needles for glass primer application
90° bent tips for hard-to-reach areas

Performance Highlights

Ultra-Durability: Tungsten carbide tips last 3X longer than standard steel

Smart Compatibility

Universal Luer slip/lock fittings (ISO 594)
Adaptable to robotic arms via quick-change chucks

Specialized Designs

Anti-static needles for conductive adhesives
Heatable versions (200°C) for hot-melt applications

Technical Specifications & Materials

Technical Specifications

Pressure Rating: 0-8bar (116psi) burst pressure
Temp Range: -40°C to 250°C (PTFE-coated)
Surface Finish: <0.2μm Ra for smooth material flow

Material Grades

304/316L Stainless Steel: Standard corrosion resistance (0-150°C)
Tungsten Carbide: 5X wear resistance for abrasive fillers
PTFE-Coated: Non-stick surface for UV-curable adhesives

Precision Metrics

Inner diameter tolerance: ±0.01mm (18G-34G sizes)
Tip concentricity: <0.05mm runout
Surface roughness: Ra 0.1μm (mirror finish)

Model-Specific Advantages

Ultra-Fine Series (34G-27G): 0.1-0.3mm inner diameter for micro-dot dispensing (Electronics: Chip bonding under microscopy)
High-Flow Series (22G-14G): 0.5-1.6mm ID for sealants/solder paste (Automotive: Windshield urethane application)
Specialty Series: Bent Tips (30°/60°/90°) for complex geometries, Heatable Needles for hot melts (80-200°C)

Technical Differentiators

Interchangeability: Compatible with Nordson/EFD/Musashi dispensers

Smart Features & Durability

Size ID: Color-coded collars for quick size identification
Control: Laser-etched scale marks for depth control
Lifespan: 50,000+ cycle lifespan (3X industry standard), burst pressure tested to 15bar

Product Parameters

Product Name	Product Image	Specifications & Models

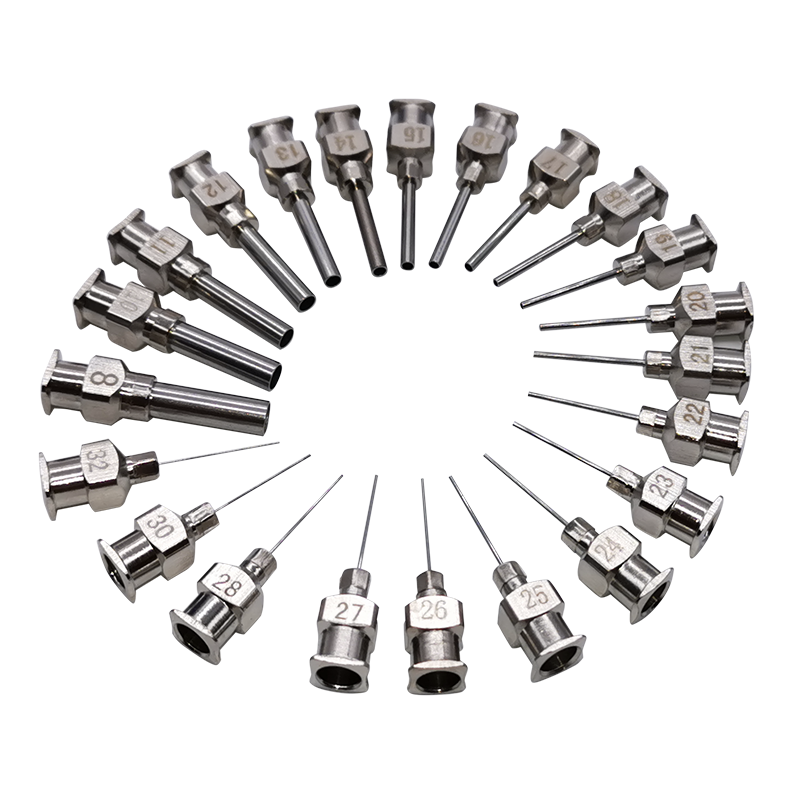

Industrial Dispensing Metal Single Barrel Needles		Specification 30G outer diameter 0.3 inner diameter 0.15 model MDN-30G-A Length 1/4 inch 6.5mm model MDN-30G-C Length 1/2 inch 13mm model MDN-30G-D Length 1 inch 25mm model MDN-30G-E Length 1.5 inch 38mm

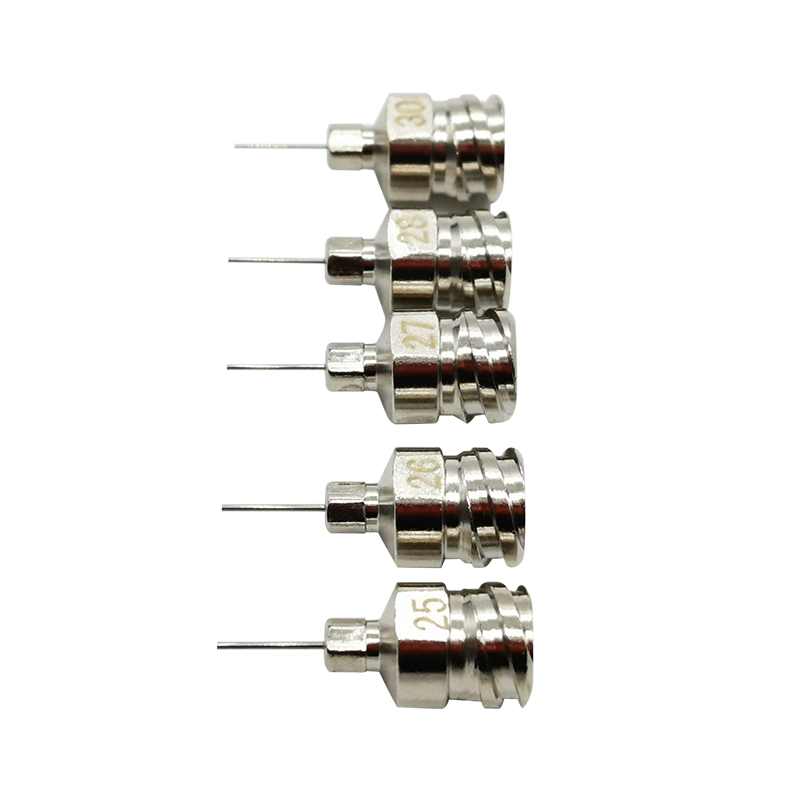

Double Threaded Metal Needles		Specification 30G outer diameter 0.3 inner diameter 0.15 model MDN-30G-A Length 1/4 inch 6.5mm model MDN-30G-C Length 1/2 inch 13mm model MDN-30G-D Length 1 inch 25.4mm

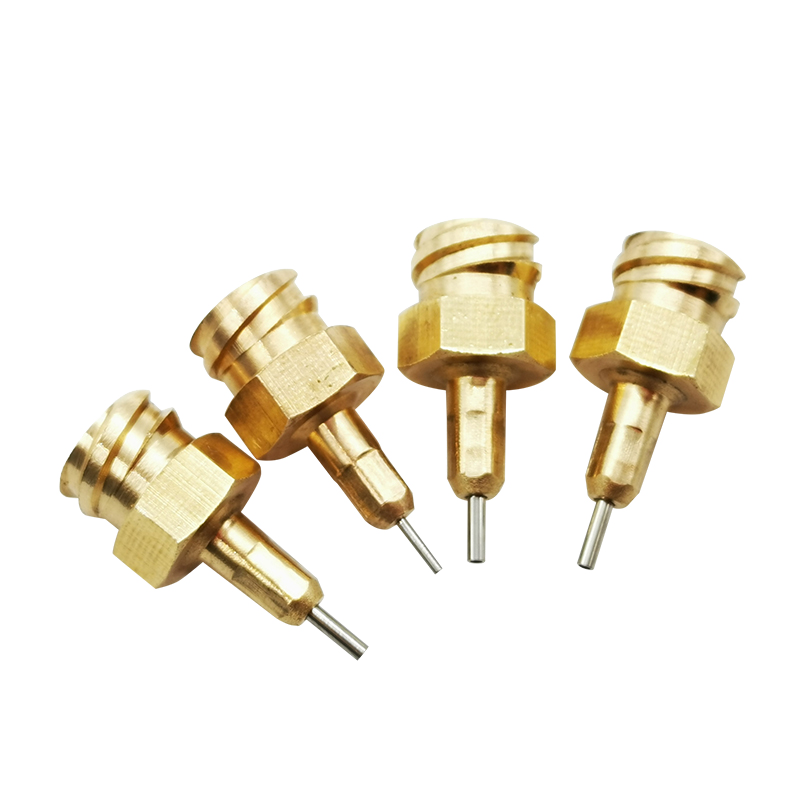

PUR Metal Needles		Specification 14G outer diameter 2.1 inner diameter 1.6 model PUR-14G-B length 4mm model PUR-14G-A length 6.5mm
Split precision needles		Single needle tip SPN-0.1,SPN-0.15 Bayonet headstock model SPN-0.1-K, SPN-0.15-K Double Threaded Head Models SPN-0.1-S, SPN-0.15-S

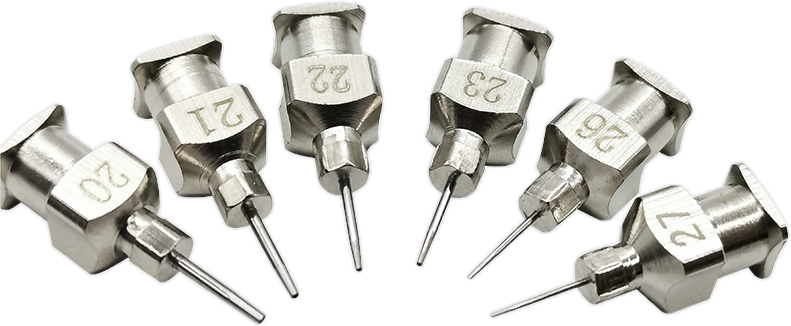

Chamfered metal needles		Specification 30G outer diameter 0.31 inner diameter 0.16 Needle tip top taper length 0.6 Needle front outer diameter 0.24 model MDN-30G-A Length 1/4 inch 6.5mm model MDN-30G-C Length 1/2 inch 13mm

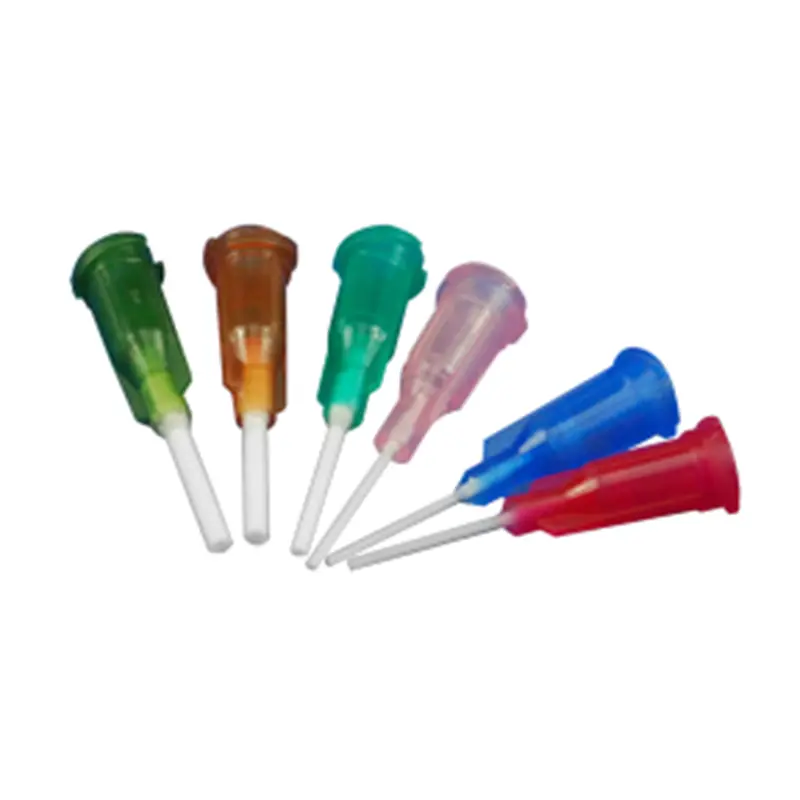

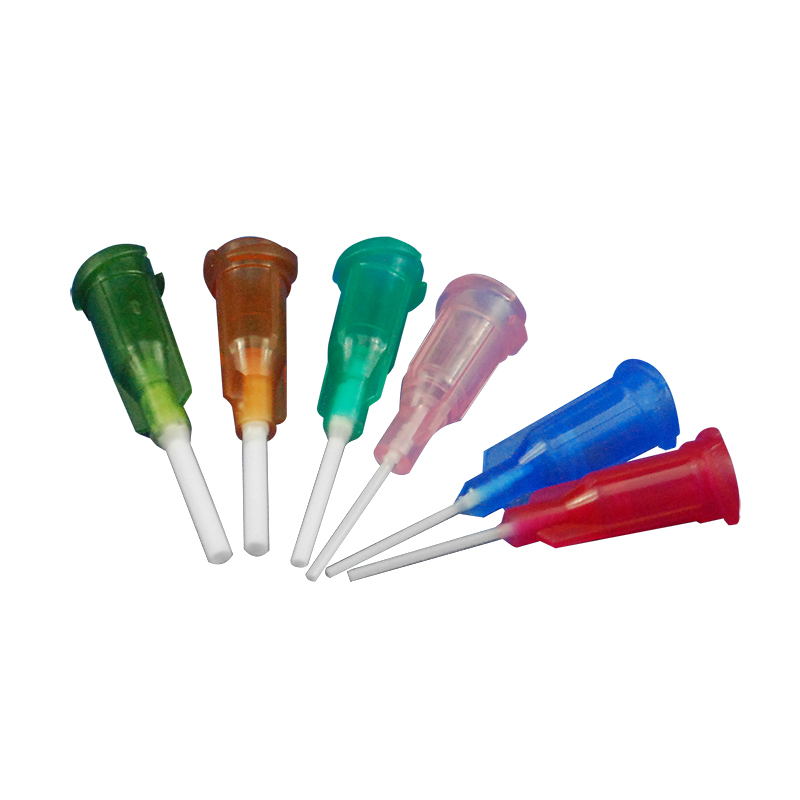

PP needles		Specification 30G outer diameter 0.31 inner diameter 0.15 model AC730025 length 1/4 inch 6.5mm model AC730050 length 1/2 inch 13mm model AC730100 length 1 inch 25.4mm model AC730150 length 1.5inch 38.1mm Specification 32G outer diameter 0.25 inner diameter 0.1 model AC732025 length 1/4 inch 6.5mm model AC732050 length 1/2 inch 13mm model AC732100 length 1 inch 25.4mm model AC732150 length 1.5inch 38.1mm

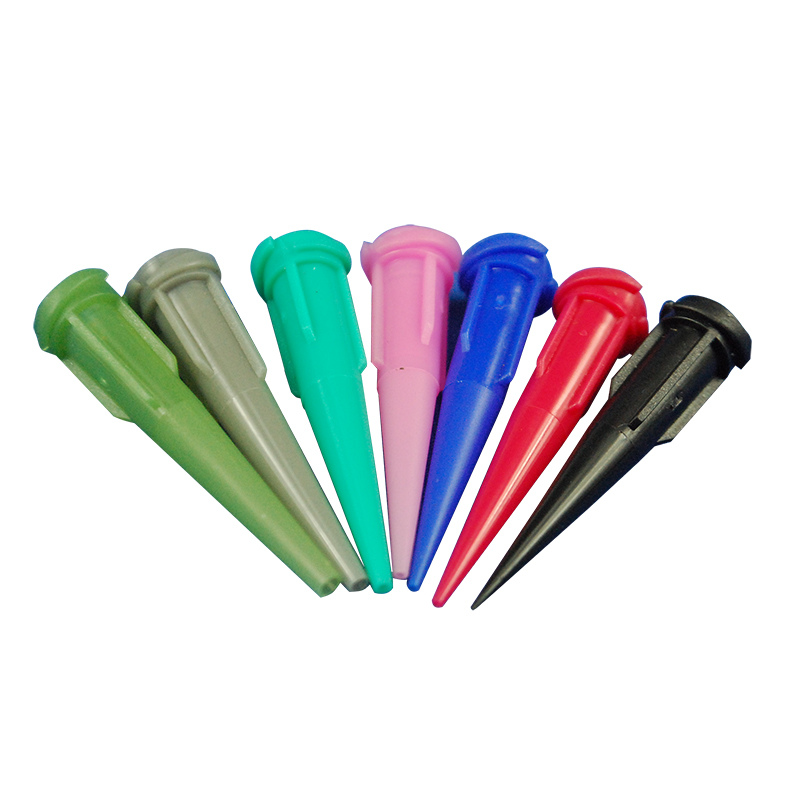

TT needles		Specification 14G outer diameter 1.8 inner diameter 1.3 model PP14G-A length 1/4 inch 6.5mm model PP14G-C length 1/2 inch 13mm model PP14G-D length 1 inch 25mm

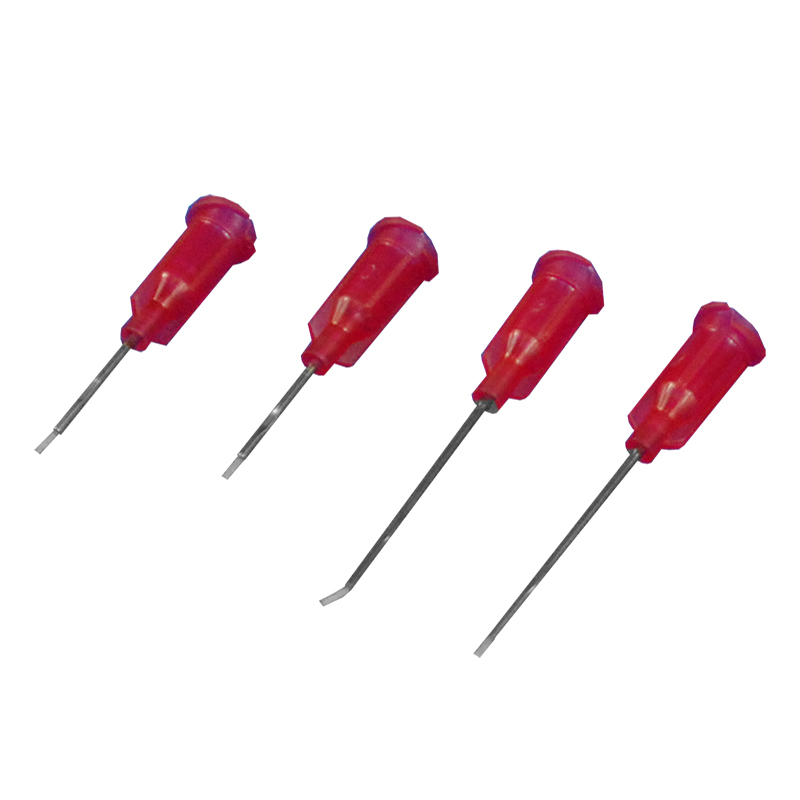

Teflon needles		Specification 14G outer diameter 1.84 inner diameter 1.56 model AC-14G TT length 31mm Specification 30G outer diameter 0.35 inner diameter 0.16 model AC-30G TT length 31mm

Product Details

Frequently Asked Questions

Q1: Are these dispensing needles compatible with main brand dispensers?

Yes, our dispensing needles feature universal Luer slip/lock fittings (ISO 594) and are fully compatible with industry-standard dispensers such as Nordson, EFD, and Musashi systems.

Q2: What material options do you offer for abrasive materials?

For highly abrasive fillers, we recommend our Tungsten Carbide tips, which provide 5X the wear resistance of standard steel. We also offer PTFE-coated needles for non-stick UV-curable adhesive applications.

Q3: Do you provide needles for static-sensitive electronics assembly?

Yes, we provide ESD-safe and anti-static needles specifically designed for conductive adhesives and components sensitive to static electricity.

Q4: What is the minimum internal diameter (ID) you support?

Our Ultra-Fine Series (34G-27G) offers inner diameters ranging from 0.1mm to 0.3mm, ideal for micro-dot dispensing and high-precision chip bonding under microscopy.

Q5: Can these needles operate under high temperatures?

Yes, we offer specialized heatable needles capable of maintaining temperatures between 80°C and 200°C (with peak resistance up to 250°C for PTFE-coated variants), which are ideal for hot-melt dispensing.

Q6: What precision tolerances do your dispensing tips maintain?

Our needles feature an inner diameter tolerance of ±0.01mm for sizes 18G-34G, a tip concentricity runout of less than 0.05mm, and a mirror-finish surface roughness of Ra 0.1μm to ensure smooth fluid flow.
