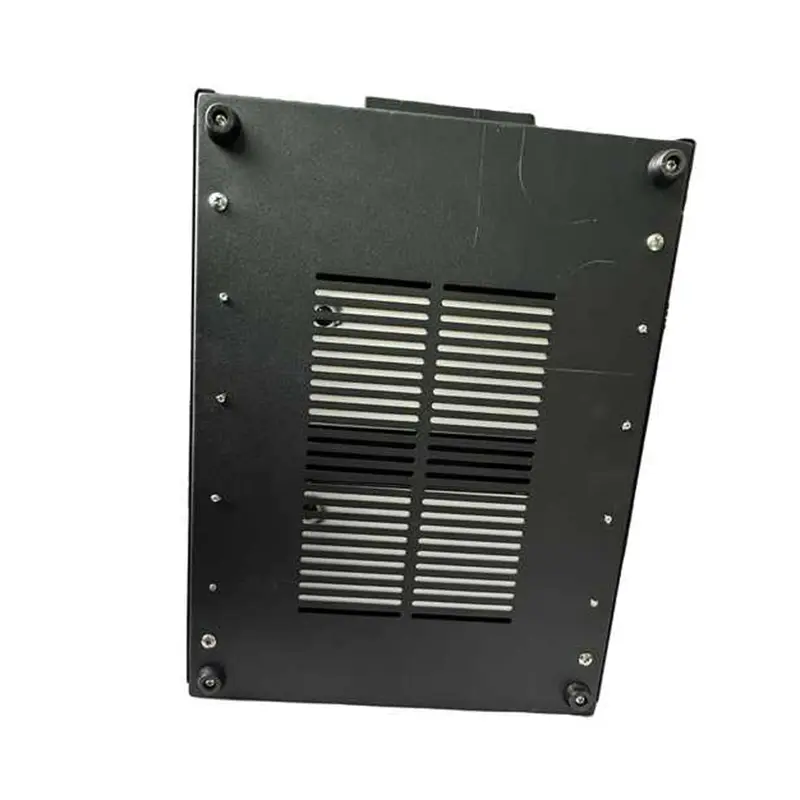

CE Certification Large-Area, Uniform Surface UV Curing Light for Flat Panel & Industrial Coatings Exporters, Service
Large-Area, Uniform Curing for Flat Panel & Industrial Coatings
With curing areas from 400x300mm to 1200x800mm, our flood systems achieve <±5% intensity variance using multi-zone reflectors and 10kW mercury lamps (or UV-LED alternatives). The water-cooled design ensures stable output for high-throughput applications like display manufacturing.
Functional Description: This large-area UV curing system delivers uniform irradiation for high-throughput adhesive curing in electronics assembly, display manufacturing, and industrial coating applications.
Omnidirectional Curing: Multi-angle reflector design eliminates shadow areas for complex 3D geometries.
Curing Area: Standard 400×300mm to 1200×800mm (custom sizes available)
Working Distance: 50-300mm adjustable with collimating optics
Cooling System: Active air/water cooling maintains <40°C surface temperature
Power Supply: 220V/380V AC, 2-10kW power consumption
Control Interface: Touchscreen with irradiance mapping and dosage control (0-5000mJ/cm²)
Frame Construction: Anodized aluminum with IP54 protection rating
Why It Stands Out
Energy Efficiency: 50% energy savings vs traditional mercury systems.
On-Demand Curing: Instant on/off capability for JIT production.
Modular Design: Allows multiple units for conveyor systems.
High-Speed Production: Doubles production speed versus IR ovens and includes automated intensity mapping for process validation.
Product Parameters
Parameter
Specifications
Model
YF100\200|300\400*100-F (length can be customized)
Power
300\600\900\1200W
Optical power
1.5w/cm²
Chip
SA
Wavelength
365nm (optional wavelength 365-405nm)
Control
touch screen or knob
Channel
1-4 channels optional
Mode
automatic \ manual \ step mode (touch screen to have this function)
Signal
pulse \ level signal (touch screen only have this function)
Lifespan
20000H
Energy Adjustment
0-100%

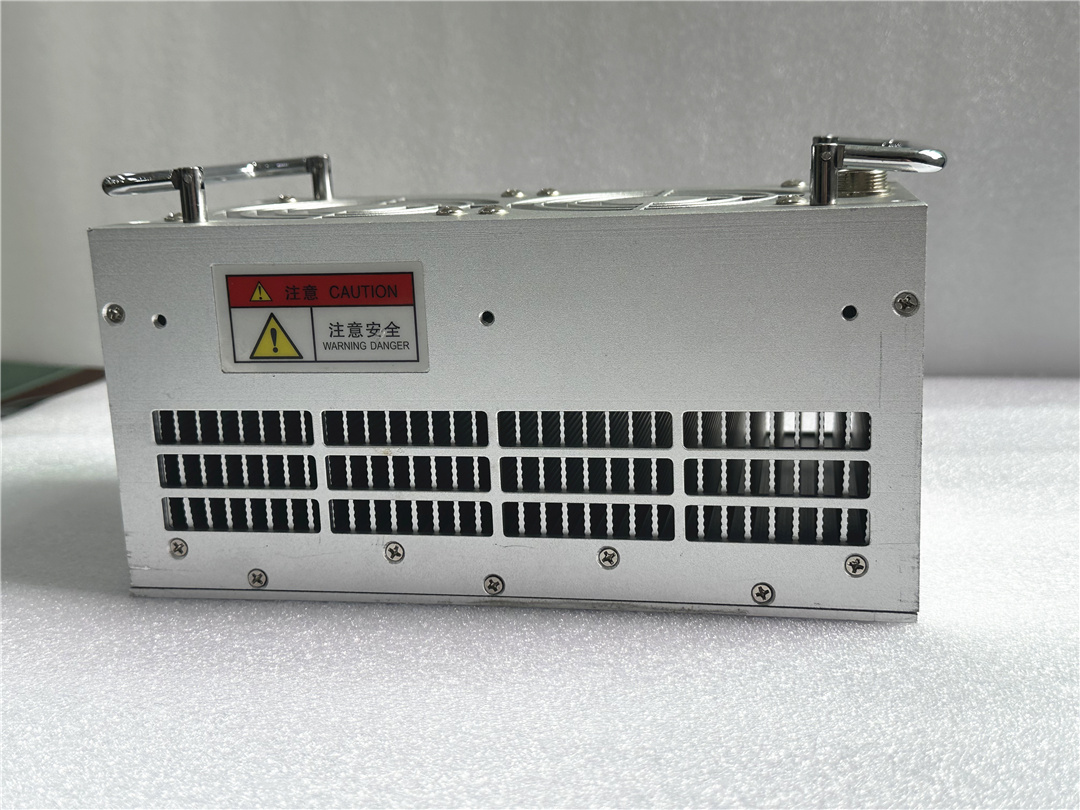

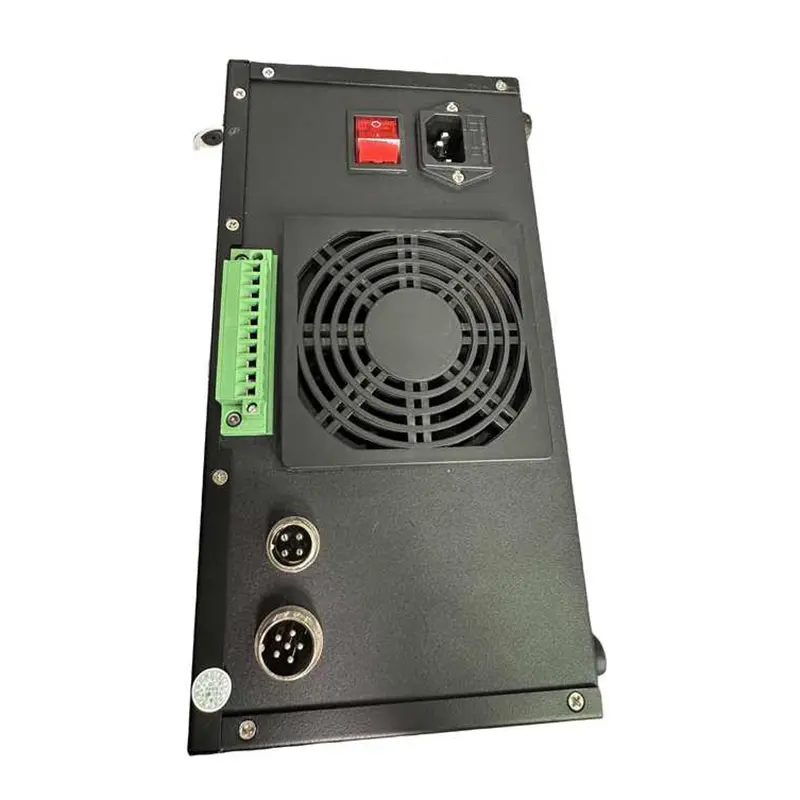

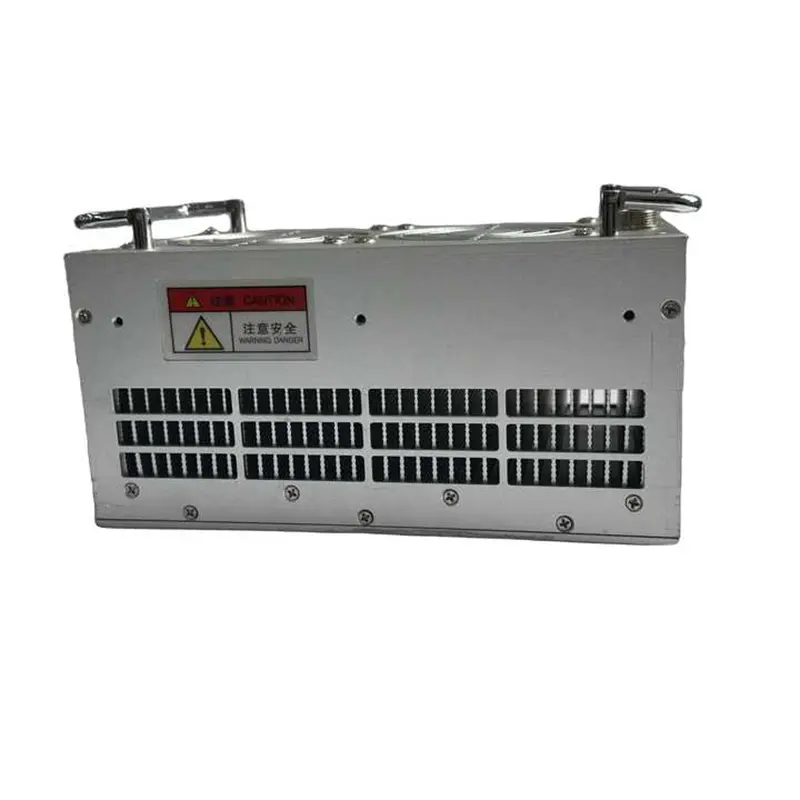

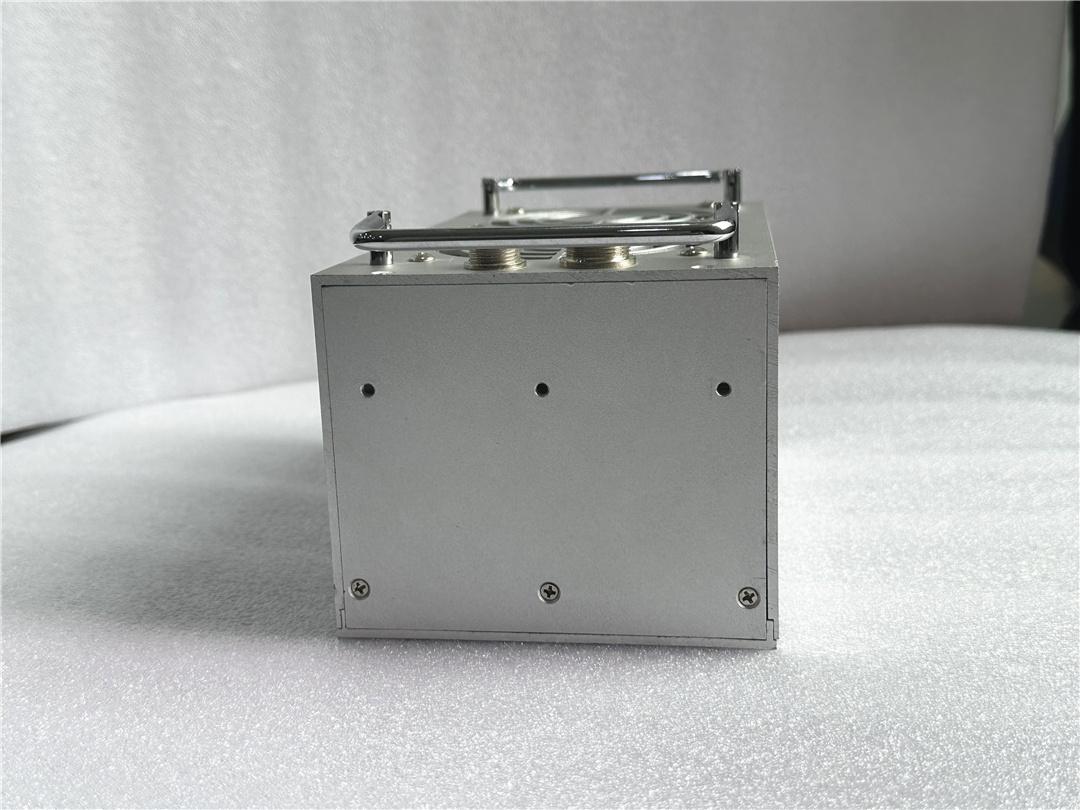

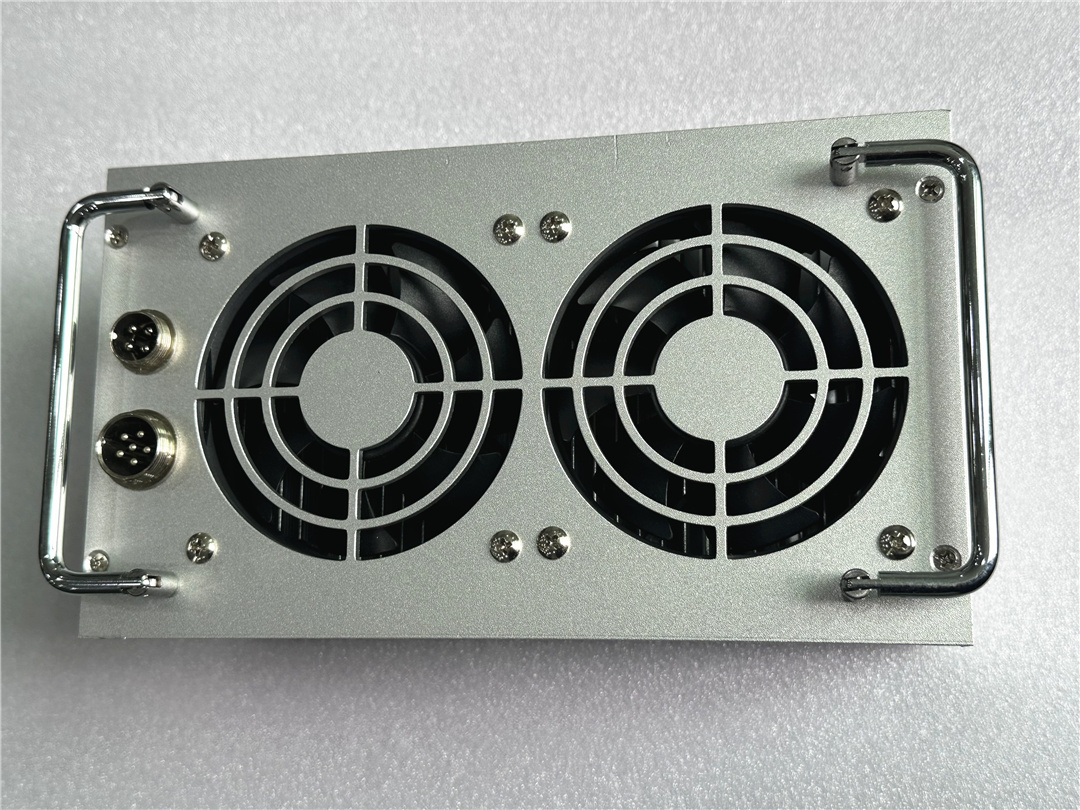

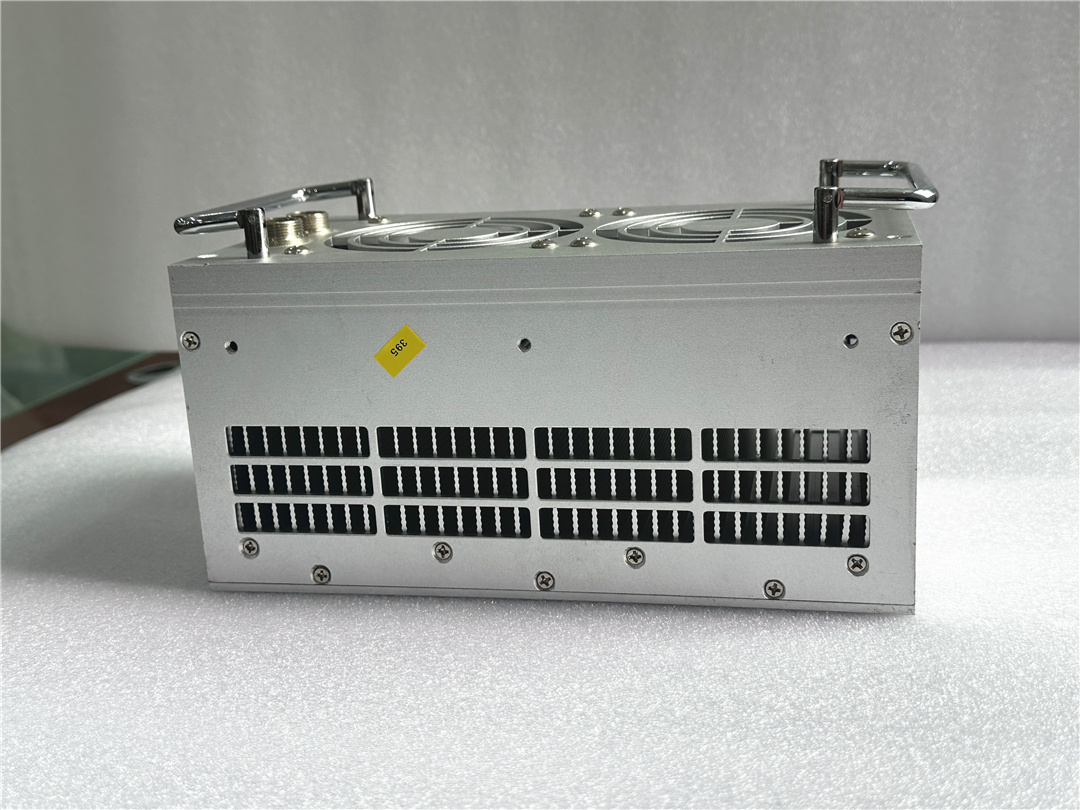

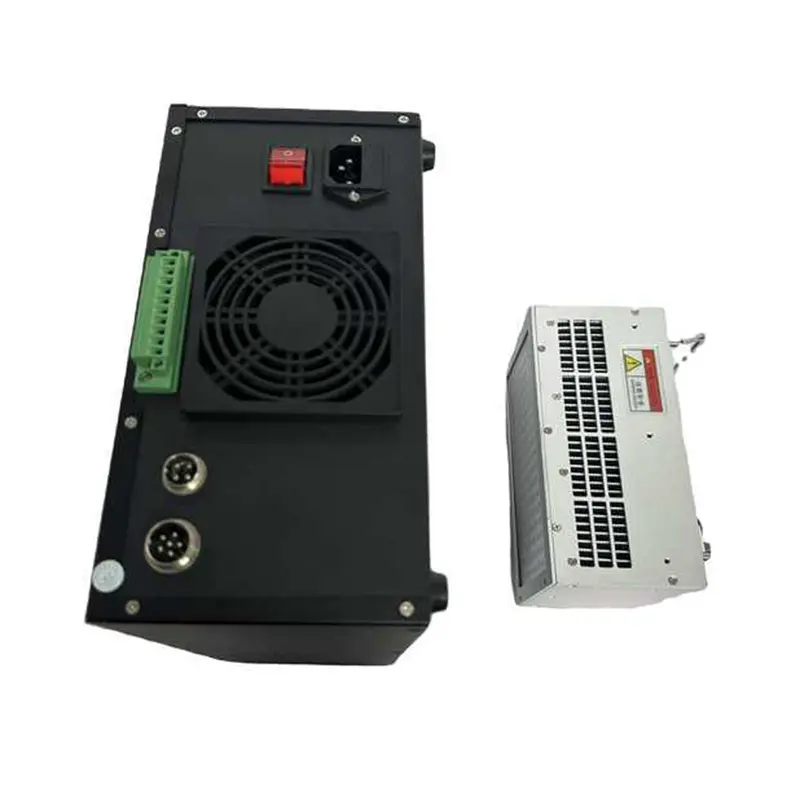

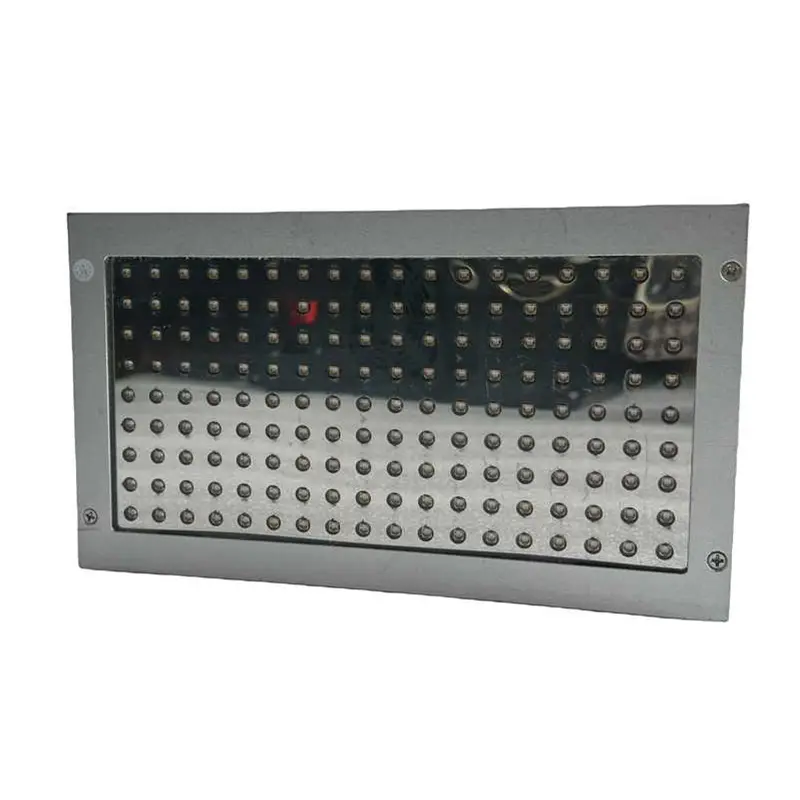

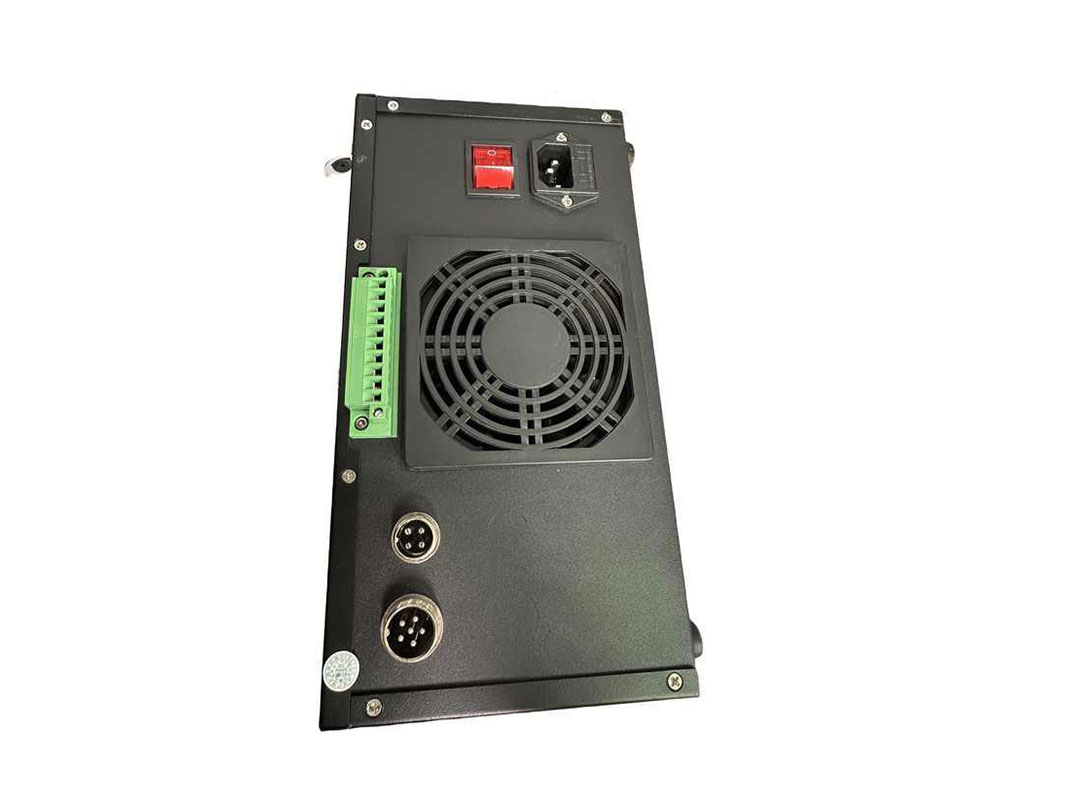

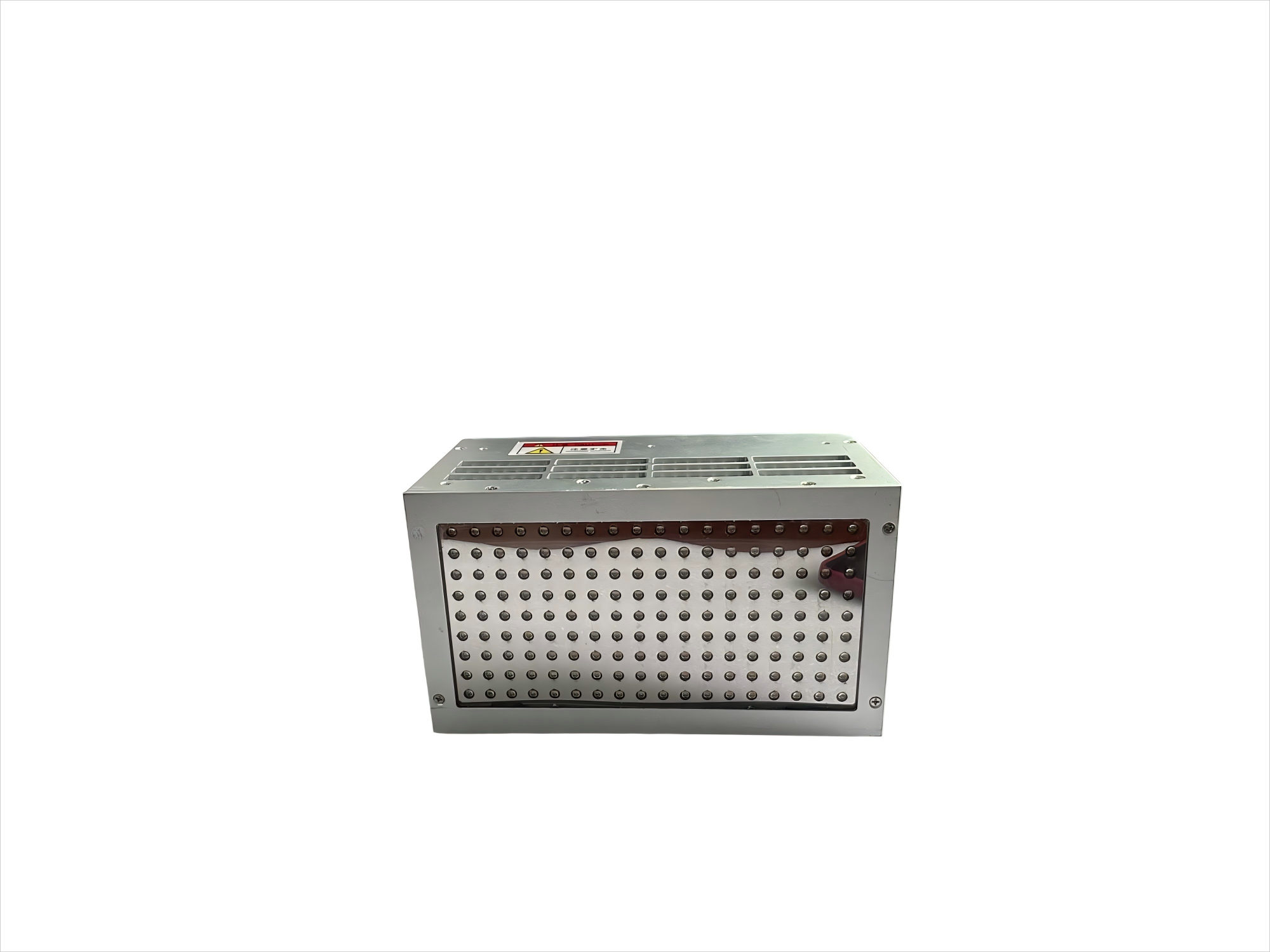

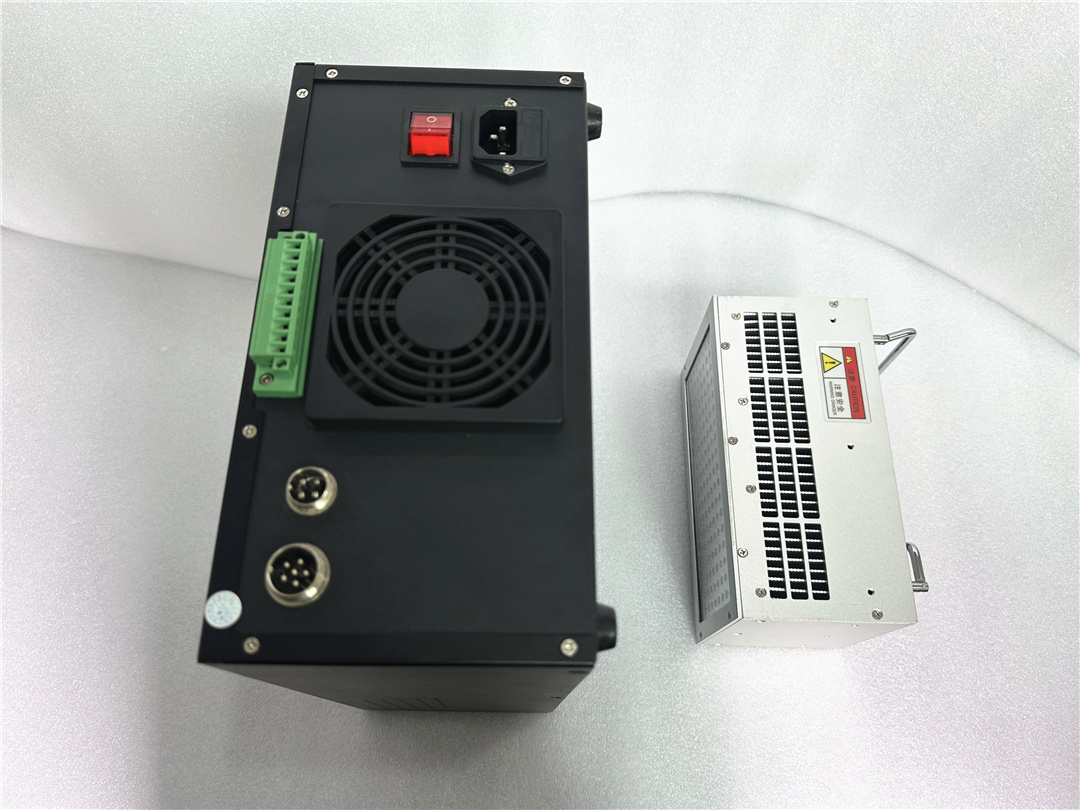

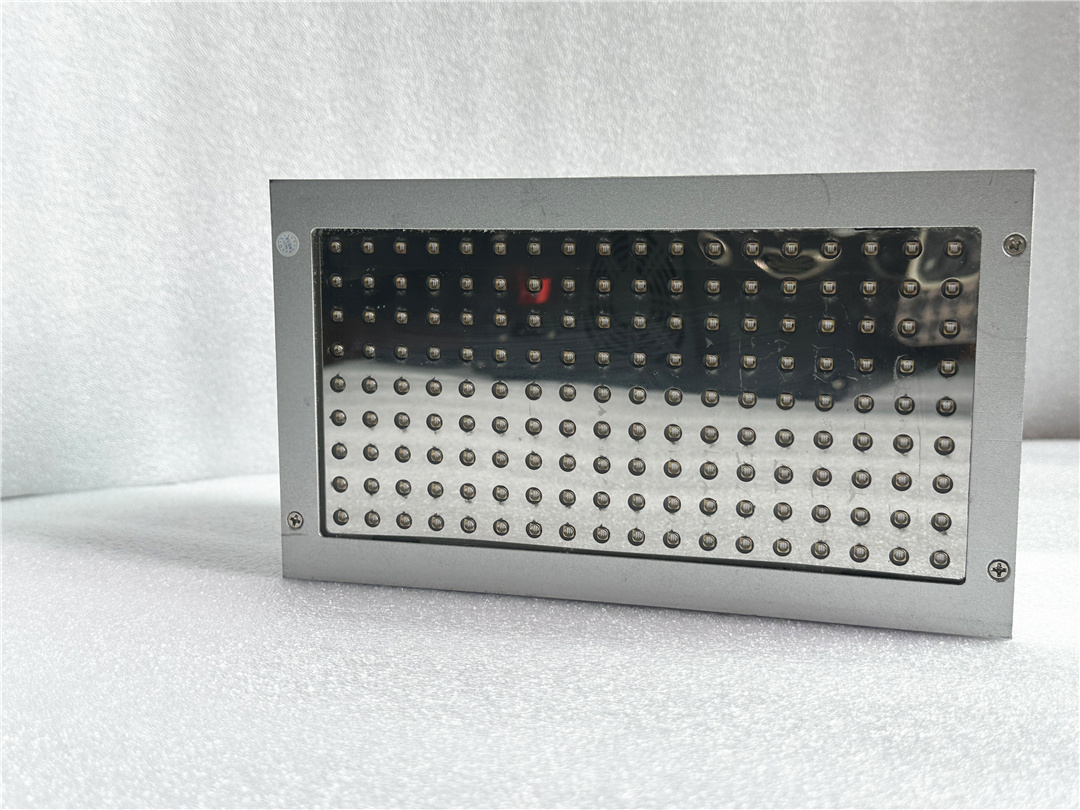

Product Details
Frequently Asked Questions
What wavelengths are available for this UV curing system?
This system offers selectable LED array wavelengths of 365nm, 385nm, and 405nm, as well as a broadband mercury lamp option covering 250-420nm.
How does the IR Cut Filter benefit temperature-sensitive components?
The integrated IR Cut Filter prevents excessive heat build-up by limiting the substrate temperature rise to less than 15°C, making it safe for heat-sensitive materials.
How does the system ensure uniform curing on complex parts?
The system features an omnidirectional curing design with a multi-angle reflector that eliminates shadow zones, and a dual-cure mode (UV + visible light) to ensure deep penetration.
What control modes are supported by this system?
The system supports automatic, manual, and step modes, adjustable via a touchscreen or knob control interface. It also features automated intensity mapping and dosage control.
Is this UV curing system energy efficient?
Yes, this design delivers up to 50% energy savings compared to traditional mercury systems, and features instant on/off capability for JIT production.
What is the estimated lifespan of the light source?
The light source has an estimated operating lifespan of 20,000 hours, supported by active air or water cooling to maintain optimal operating temperatures.
